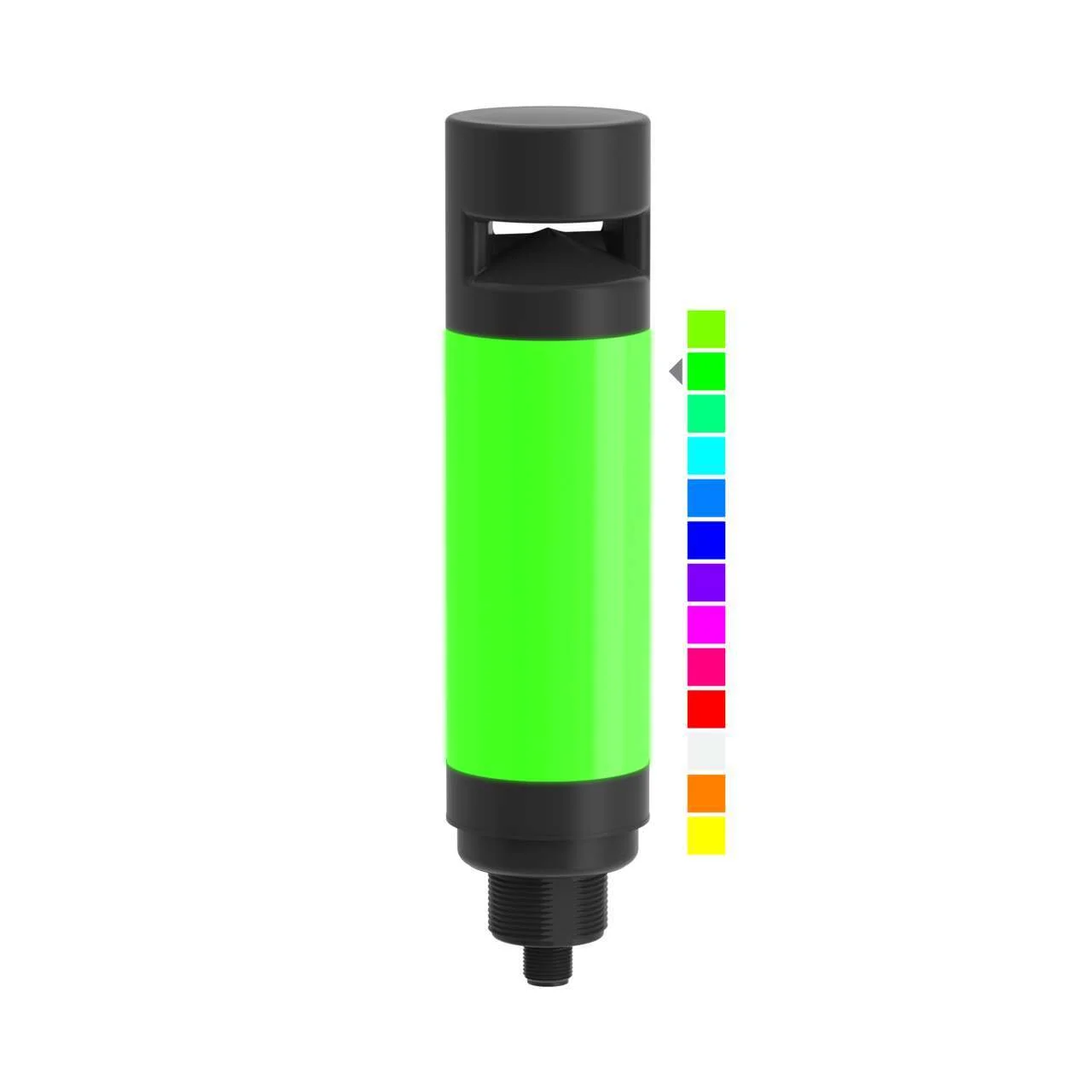

Banner Engineering CL50PAKQ
CL50 Pro Column Light with IO-Link; RGB Audible Indicator
Voltage: 18-30 V dc; Environ. Rating: IP65
Colors: Multicolor
4-pin M12 Integral QD
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
CL50 Pro Column Light with IO-Link; RGB Audible Indicator
Voltage: 18-30 V dc; Environ. Rating: IP65
Colors: Multicolor
4-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP65 |
| Display | No |
| Nema / Ul Type Rating | UL 4X |
| Supply Voltage | 18-30 V dc |
| Item Status | RELEASED |
| Housing Style | Base Mount – Tower |
| Primary Housing Material | Polycarbonate |
| Indication | Yes |
| Illumination | No |
| Mounting Thread | M30 x 1.5 |
| Color Input Control | Communication Protocol |
| Number Of Colors | Programmable |
| Product Size (Mm) | 50 |
| Color Technology | RGB IO-Link |
| Color Option 1 | RGB |
| Animation Option 1 | IO-Link Controlled |
| Connection | Integral QD |
| Lumens Color 1 | 29.1 |
| Quick Disconnect Type | M12 |
| Color 1 Wavelength/Color Temp/Coordinates | 620 nm |
| Color Option 2 | Green |
| Lumens Color 2 | 52.2 |
| Color 2 Wavelength/Color Temp/Coordinates | 522 nm |
| Color Option 3 | Blue |
| Lumens Color 3 | 11.6 |
| Color 3 Wavelength/Color Temp/Coordinates | 466 nm |
| Color Option 4 | Yellow |
| Lumens Color 4 | 75.9 |
| Color 4 Wavelength/Color Temp/Coordinates | 576 nm |
| Color Option 5 | White |
| Lumens Color 5 | 79.4 |
| Color 5 Wavelength/Color Temp/Coordinates | 5700K |
| Color Option 6 | Magenta |
| Lumens Color 6 | 36.7 |
| Color 6 Wavelength/Color Temp/Coordinates | 0.370, 0.185 |
| Color Option 7 | Cyan |
| Lumens Color 7 | 57.9 |
| Color 7 Wavelength/Color Temp/Coordinates | 493 nm |
| Max Current Color (Ma) | 130 |
| Dimming Option | Programmable |
| Number Of Input Pins/Conductors | 4 |
| Audible Alarm Type | Multitone |
| Input Type | Communication Protocol |
| Max Audible Intensity (Db At 1M) | 93 |
| I/O Block Compatible | No |
| Audible Operating Frequency (Khz) | 3.1 |
| Max Input Response Time (Ms) | 30 |
| Max Current Audible Alarm (Ma) | 25 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 50.0 x 68.0 |
| Environmental Rating | IP65 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 90% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -20 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Secondary Material | ABS |
| Feature: Washdown Rated | No |
| Feature: Audible | Yes |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Multi Color Device | Simultaneous Colors On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Io Link | Yes |
| Wireless | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 12/07/2024 |
