Banner Engineering BMRL4816A

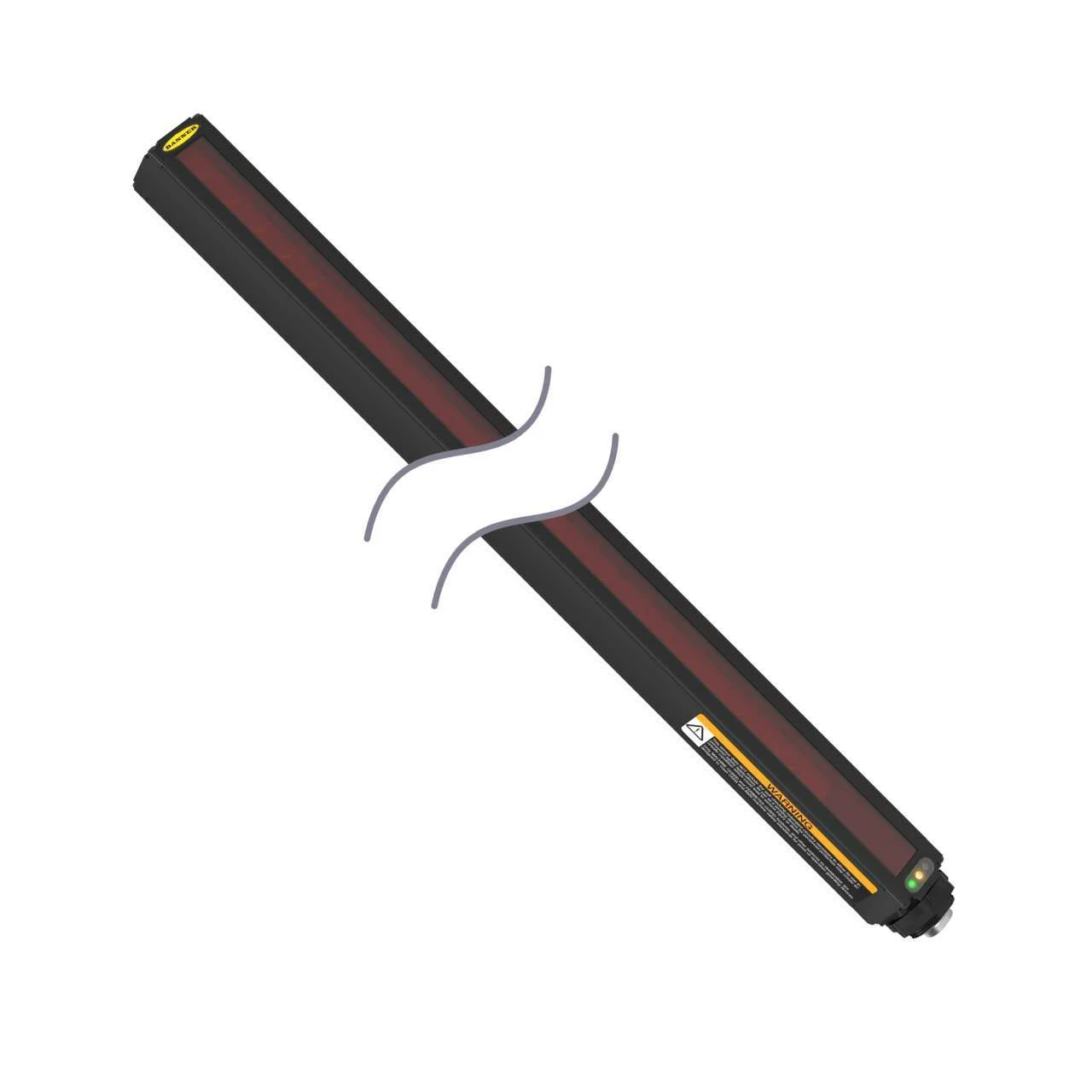

MINI-ARRAY: Receiver Sensor 1210 mm (47.6 in)
Beam Spacing: 19 mm (0.75 in); Total Beams = 64
System Range (w/ matching emitter) = 0.9-14 m
System Requires 2 Qu…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MINI-ARRAY: Receiver Sensor 1210 mm (47.6 in)
Beam Spacing: 19 mm (0.75 in); Total Beams = 64
System Range (w/ matching emitter) = 0.9-14 m
System Requires 2 Quick-Disconnect Cables
Specification
| Housing Length (Mm) | 1267 |
|---|---|
| Min Temp (C) | -20 |
| Max Temp (C) | 70 |
| Short Range | No |
| Low Contrast | No |
| Supply Voltage | 12 V dc |
| Item Status | RELEASED |
| Sensing Mode (Detailed) | Receiver |
| Device Type | Three-Piece |
| Primary Housing Material | Aluminum |
| Beam Spacing | 19 mm |
| Device Net | No |
| Io Link | No |
| Modbus Rtu | No |
| R S 232 | No |
| R S 485 | No |
| Array Length (Mm) | 1200 |
| Number Of Beams | 64 |
| Minimum Object Sensitivity (Mm) | 25.4-38.1 |
| Max Relative Humidity | 95% |
| Emitter/Receiver Range (M) | 0.9 – 13.5 |
| Discrete Output | N/A |
| Analog Output | N/A |
