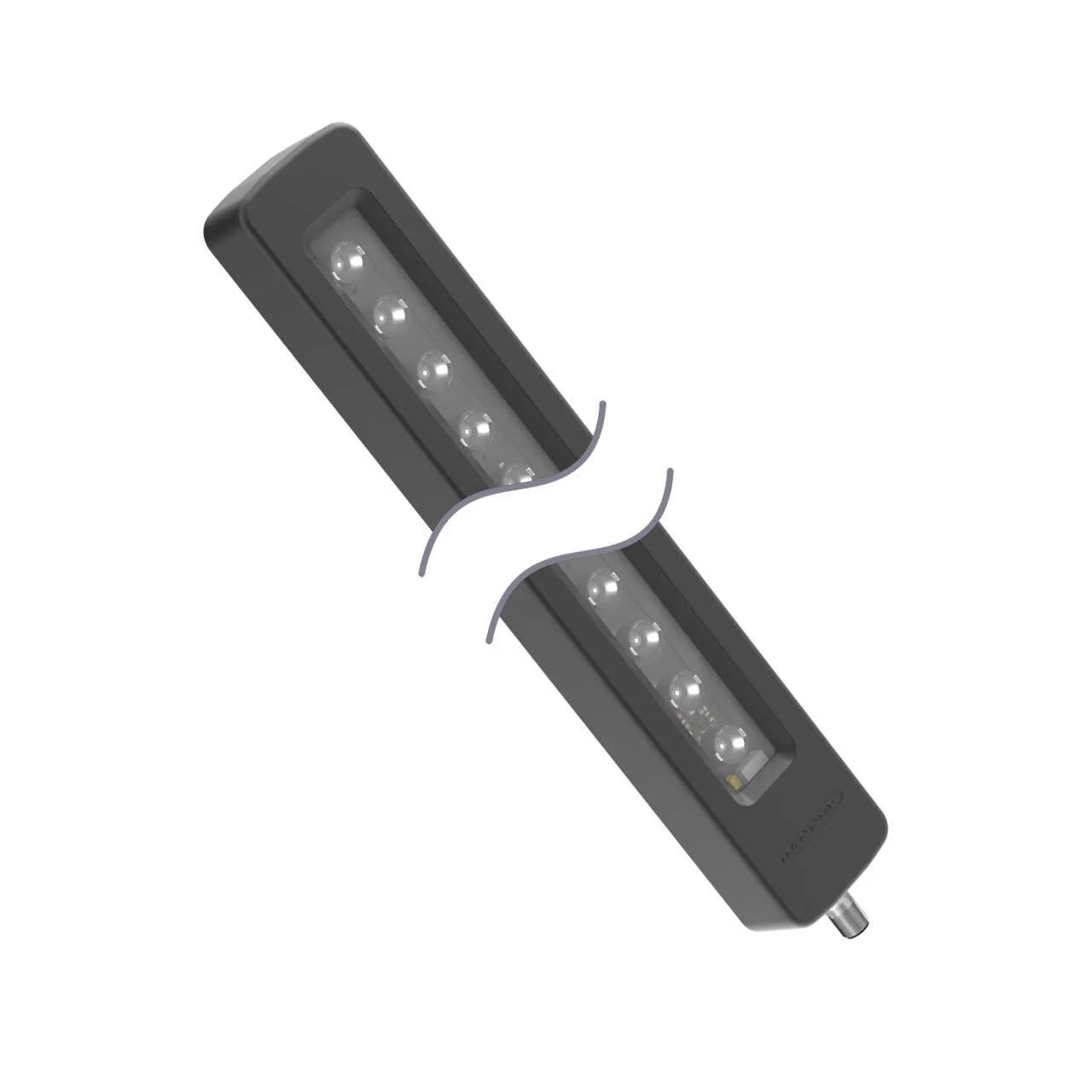

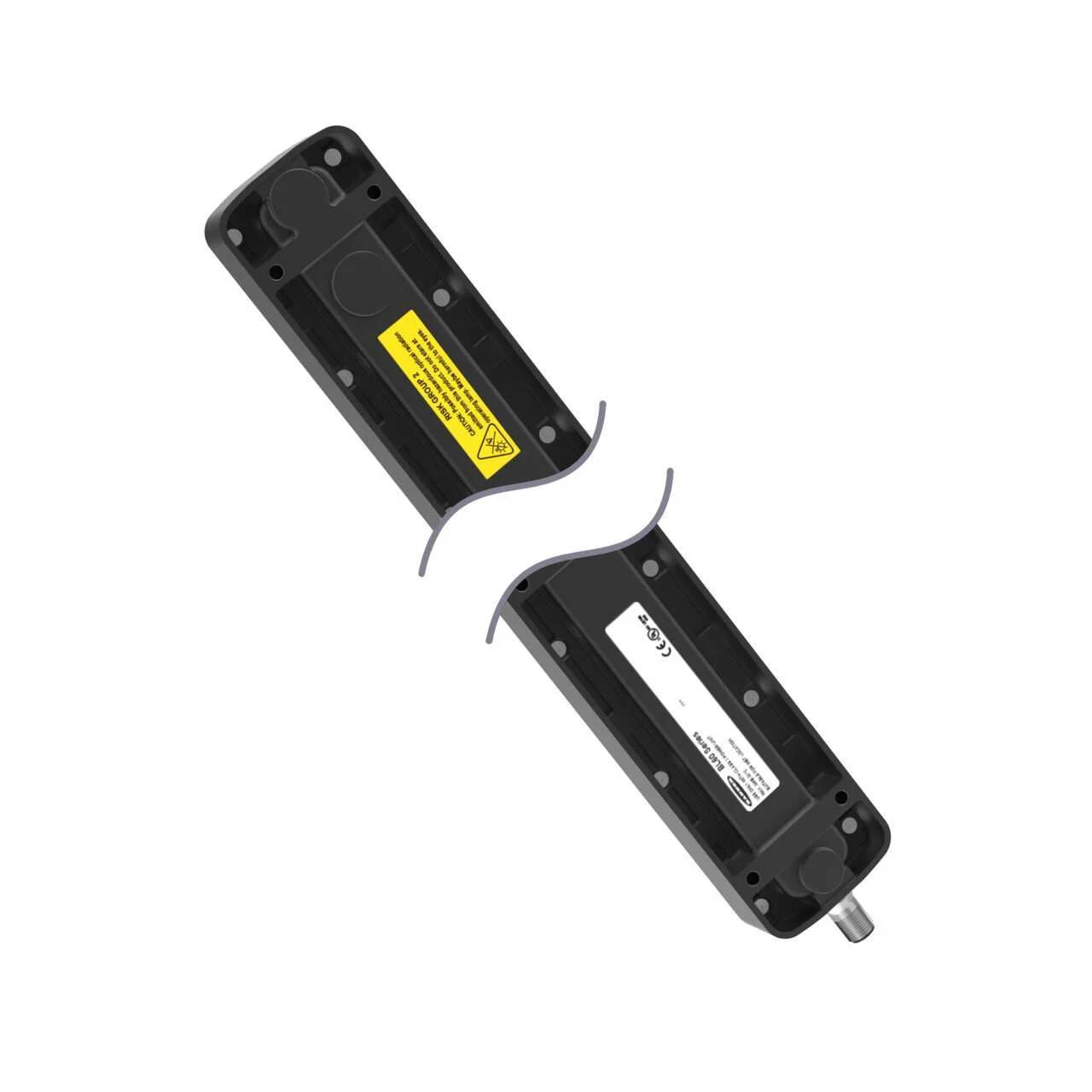

Banner Engineering BL60R340L14ASQ
BL60 Vision Light; Length: 340 mm; Black E-Coated Aluminum
Voltage: 12-30 V dc; Environmental Rating: IP68, IP69K
Color: Red; 14 Degree Lens; Window: Clear Poly…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
BL60 Vision Light; Length: 340 mm; Black E-Coated Aluminum
Voltage: 12-30 V dc; Environmental Rating: IP68, IP69K
Color: Red; 14 Degree Lens; Window: Clear Polycarbonate
5-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP67, IP68, IP68g, IP69K |
| Display | No |
| Supply Voltage | 12-30 V dc |
| Item Status | RELEASED |
| Housing Style | Linear Strip |
| Primary Housing Material | Black E-coated Aluminum Housing |
| Indication | No |
| Illumination | Yes |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 1 |
| Product Size (Mm) | 60 |
| Color Technology | Standard LED |
| Color Option 1 | Red |
| Animation Option 1 | Multiple |
| Connection | Integral QD |
| Lumens Color 1 | 650 |
| Quick Disconnect Type | M12 |
| Color 1 Wavelength/Color Temp/Coordinates | 625 nm |
| Max Current Color (Ma) | 1600 |
| Dimming Option | PWM; 1-10V |
| Number Of Input Pins/Conductors | 5 |
| Input Type | Bimodal (PNP/NPN) |
| I/O Block Compatible | No |
| Illuminated Length (Lxwxh Mm) | 254.6 |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 381.4 x 60.9 x 31.3 |
| Eye Shield | No |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Clear |
| Feature: Washdown Rated | Yes |
| Feature: Audible | No |
| Feature: Cascade | No |
| Feature: Chemical Resistant | No |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Wireless | No |
| U S B | No |
