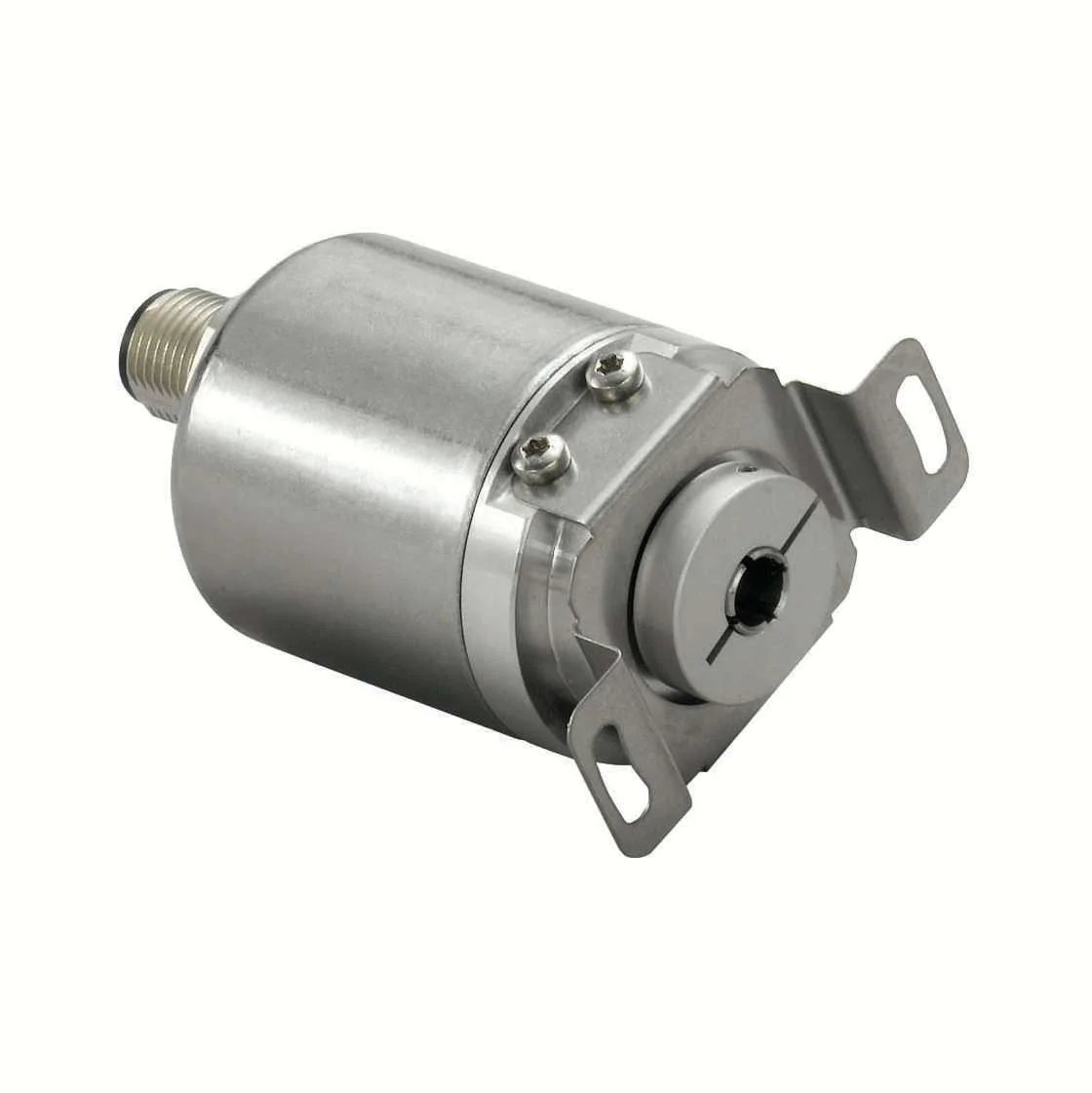

Banner Engineering BEH36-A0B60M-4C0ET1E0
Encoder H36 HLW 6
Shft; Blind Hollow Analog Magnetic; 16 Revolution 4096 Step/Revolution
Cable Ex Grommet Ax; CW Current 4-20 mA
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Encoder H36 HLW 6
Shft; Blind Hollow Analog Magnetic; 16 Revolution 4096 Step/Revolution
Cable Ex Grommet Ax; CW Current 4-20 mA
Specification
| Supply Voltage | 15-30 V dc |
|---|---|
| Item Status | RELEASED |
| Primary Housing Material | Zinc-Nickel-Plated Steel |
| Encoder Type | Absolute |
| Housing Diameter (Mm) | 36 |
| Shaft Diameter (Mm) | 6 |
| Solid Shaft | No |
| Shaft Material | Stainless Steel |
| Connection | Cable |
| Qd Type/Cable Length | 1 m |
| Environmental Rating | IP54 |
| Rotational Speed (Rpm) | 12000 |
| Flange Type | Blind Hollow |
| Flange Material | Aluminum |
| Revolution | 16 |
| Steps/ Revolution | 4096 |
| Feature: Quick Disconnect | No |
| Device Net | No |
| P R O F I N E T | No |
| S S I | No |
| Analog | Yes |
| C A Nopen | No |
| Parallel | No |
| Profibus | No |
| Resolution | Revolution: 16 , Steps/Revolution: 4096 |
