Banner Engineering BCP-M12LF5-M12LM5-14-1

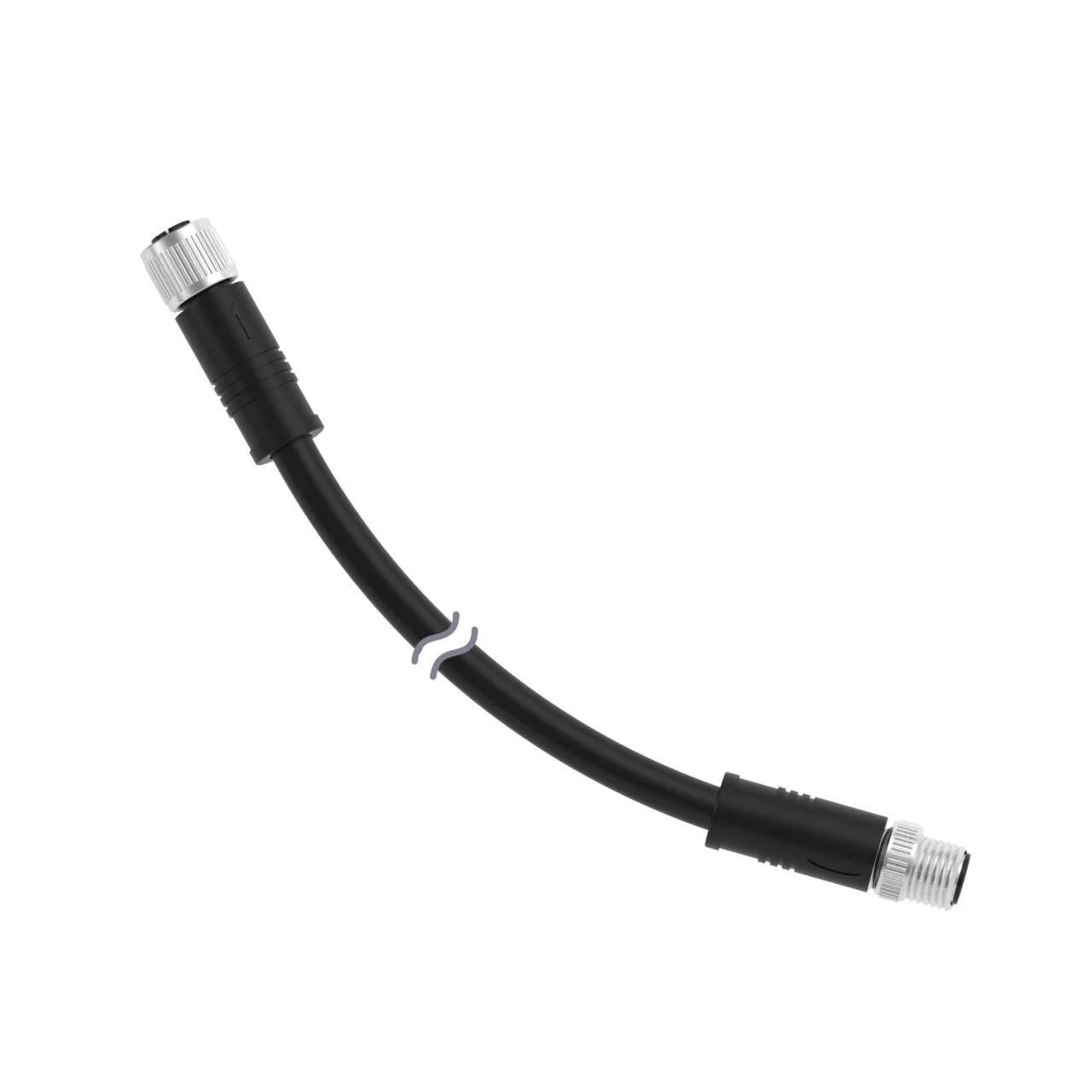

Cordset: Double-Ended M12

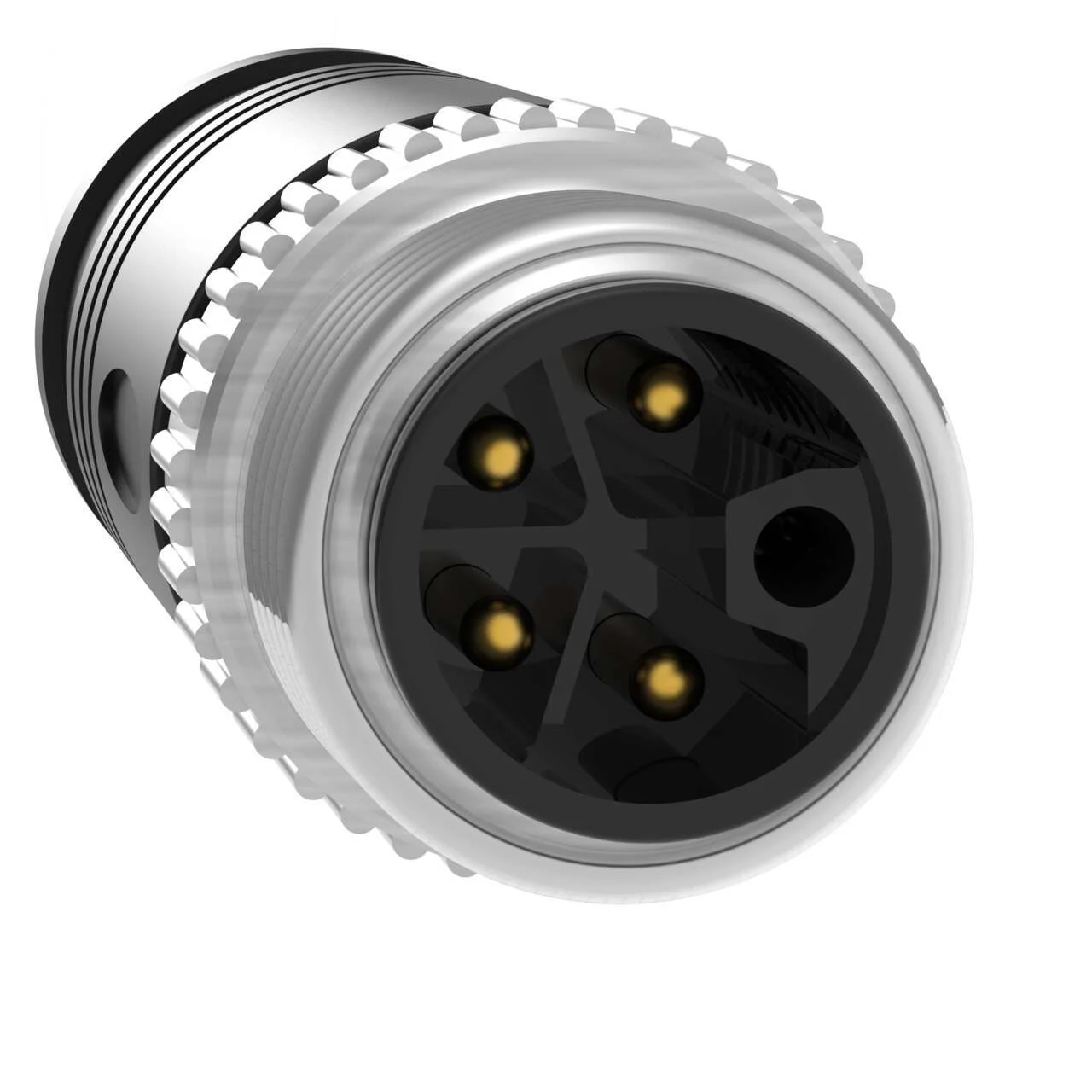

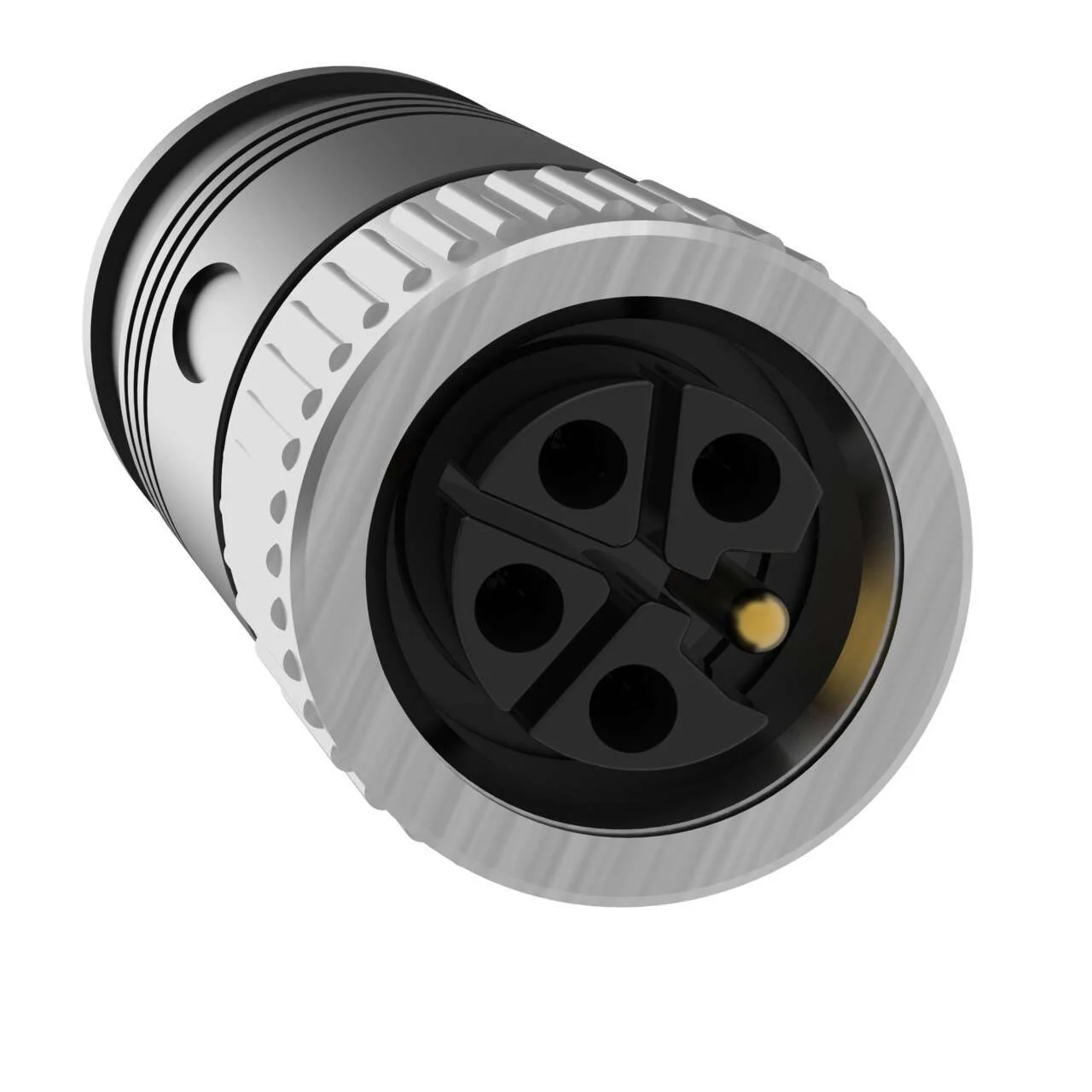

5-pin Straight Female L-Code; 5-pin Straight Male L-Code
1 m 5×14 Black PVC Jacket
Nickel-Plated Brass Coupling Nuts
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Cordset: Double-Ended M12
5-pin Straight Female L-Code; 5-pin Straight Male L-Code
1 m 5×14 Black PVC Jacket
Nickel-Plated Brass Coupling Nuts
Specification
| Ip Rating | IP67, IP68 |
|---|---|
| Connector 1 Type | M12 |
| Connector 2 Type | M12 |
| Number Of Ends | Double Ended |
| Connector 1 Number Of Contacts | 5 |
| Coupling Nut Material | Nickel Plated Brass |
| Connector 2 Number Of Contacts | 5 |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Connector 1 Key Code | L |
| Connector 2 Key Code | L |
| Connector 1 Gender | Female |
| Outside Cable Diameter (Mm) | 9.6 |
| Connector 2 Gender | Male |
| Cordset Length (M) | 1 |
| Connector 1 Orientation | Straight |
| Connector 2 Orientation | Straight |
| Overmold Material And Color | TPU Black |
| Shield/No Shield | Shield – Tied to Coupling Nut |
| Minimum Temp. (Celsius) | -25 |
| Maximum Temp. (Celsius) | 85 |
| Current Rating (A) | 16.0 |
| Supply Voltage | 63 V dc |
| Item Status | RELEASED |
| Feature: Washdown Rated | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 03/26/2025 |
