Banner Engineering BCD-M12DM-M12DM-15M
Cordset: Double-Ended D-Code M12

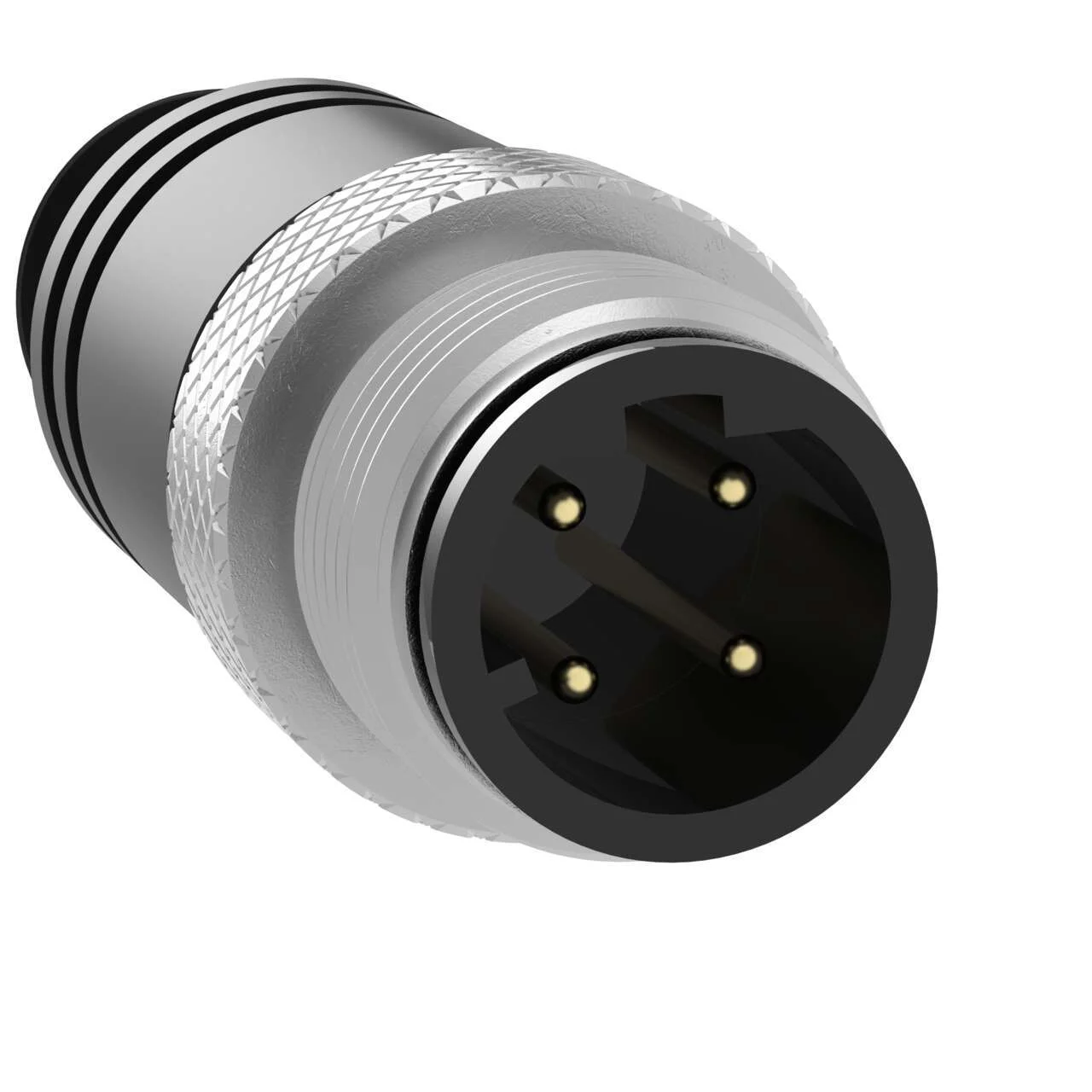

4-pin Straight Male; 4-pin Straight Male Connectors with Shield
15 m (49.21 ft) Teal PVC Jacket
Nickel-Plated Brass Coupling Nu…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

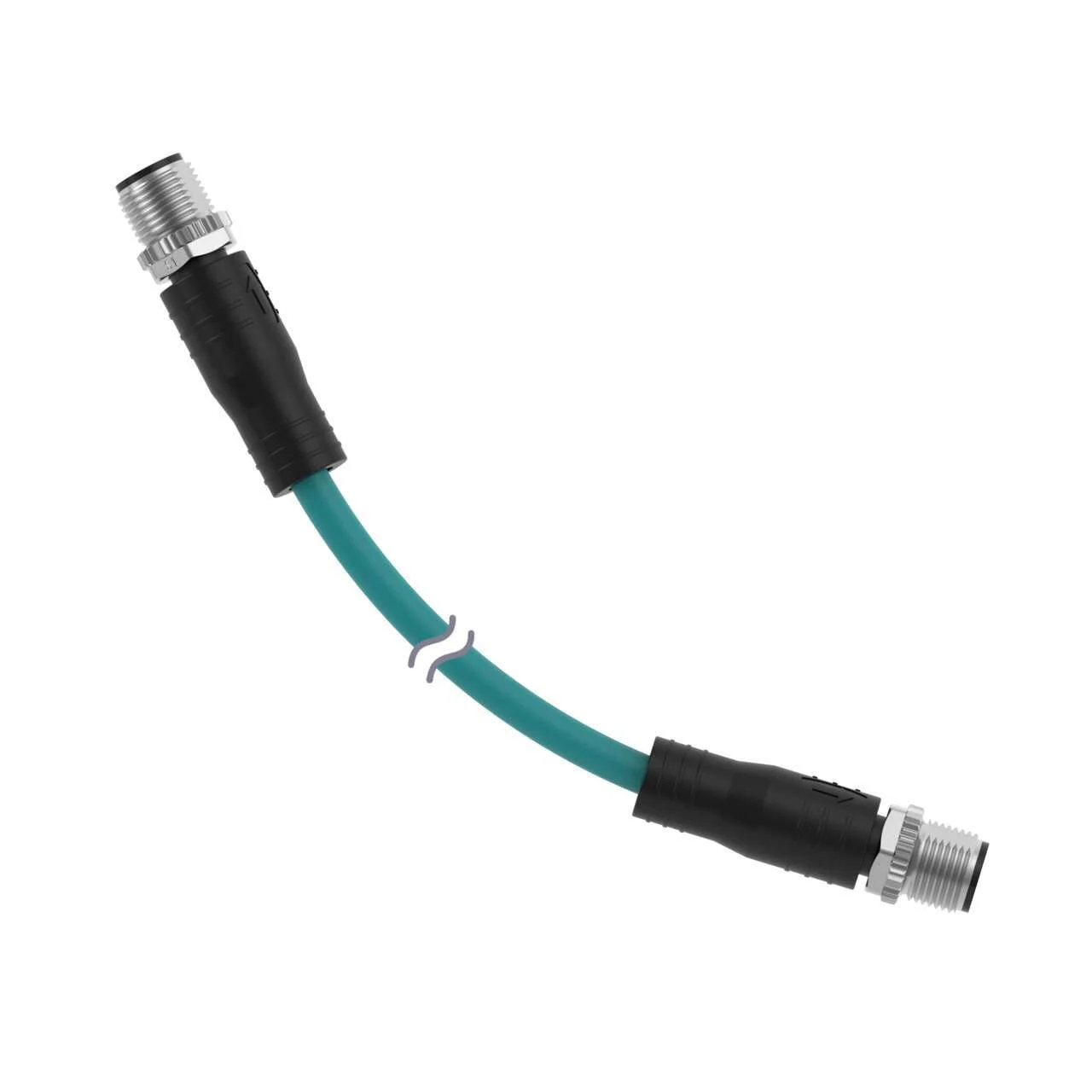

Cordset: Double-Ended D-Code M12
4-pin Straight Male; 4-pin Straight Male Connectors with Shield
15 m (49.21 ft) Teal PVC Jacket
Nickel-Plated Brass Coupling Nuts
Specification
| Ip Rating | IP67 |
|---|---|
| Connector 1 Type | M12 |
| Connector 2 Type | M12 |
| Number Of Ends | Double Ended |
| Connector 1 Number Of Contacts | 4 |
| Coupling Nut Material | Nickel Plated Brass |
| Connector 2 Number Of Contacts | 4 |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Teal |
| Connector 1 Key Code | D |
| Connector 2 Key Code | D |
| Connector 1 Gender | Male |
| Outside Cable Diameter (Mm) | 6.20 |
| Connector 2 Gender | Male |
| Cordset Length (M) | 15.0 |
| Connector 1 Orientation | Straight |
| Connector 2 Orientation | Straight |
| Overmold Material And Color | PUR Black |
| Shield/No Shield | Shield – Tied to Coupling Nut |
| Minimum Temp. (Celsius) | -40 |
| Maximum Temp. (Celsius) | 70 |
| Current Rating (A) | 4.0 |
| Supply Voltage | 60 V dc |
| Item Status | RELEASED |
| Feature: Washdown Rated | No |
| Feature: Hazardous Area | No |
| Oil/Grease Resistant | No |
