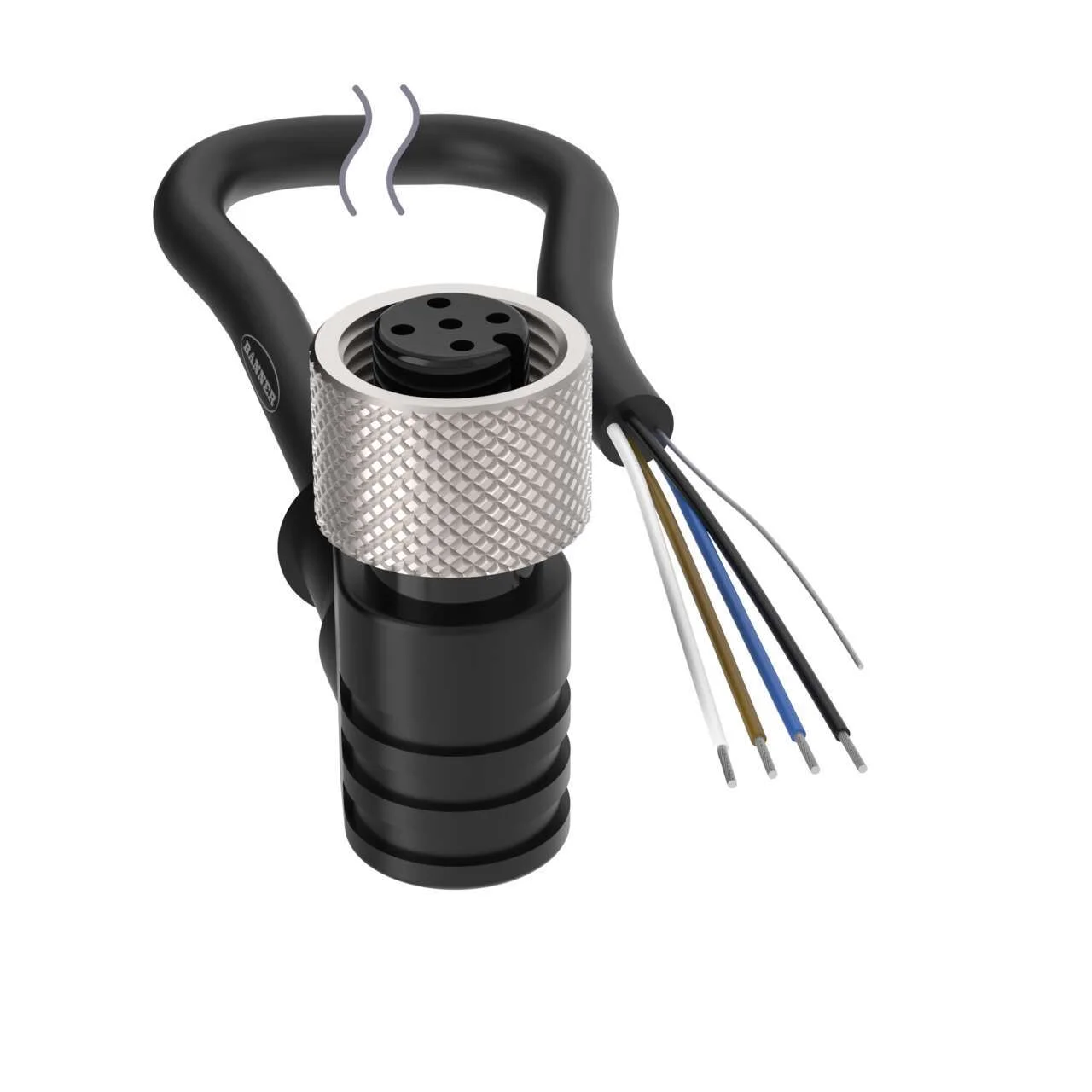

Banner Engineering BC-M12F4A-22-2-SF
Cordset: Single-Ended M12
4-pin Right-Angle Female Connector
2 m (6.56 ft) 4×22 Shielded Black PVC Jacket
Nickel-Plated Brass Coupling Nut
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Cordset: Single-Ended M12
4-pin Right-Angle Female Connector
2 m (6.56 ft) 4×22 Shielded Black PVC Jacket
Nickel-Plated Brass Coupling Nut
Specification
| Ip Rating | IP67 |
|---|---|
| Connector 1 Type | M12 |
| Connector 2 Type | Flying Leads |
| Number Of Ends | Single Ended |

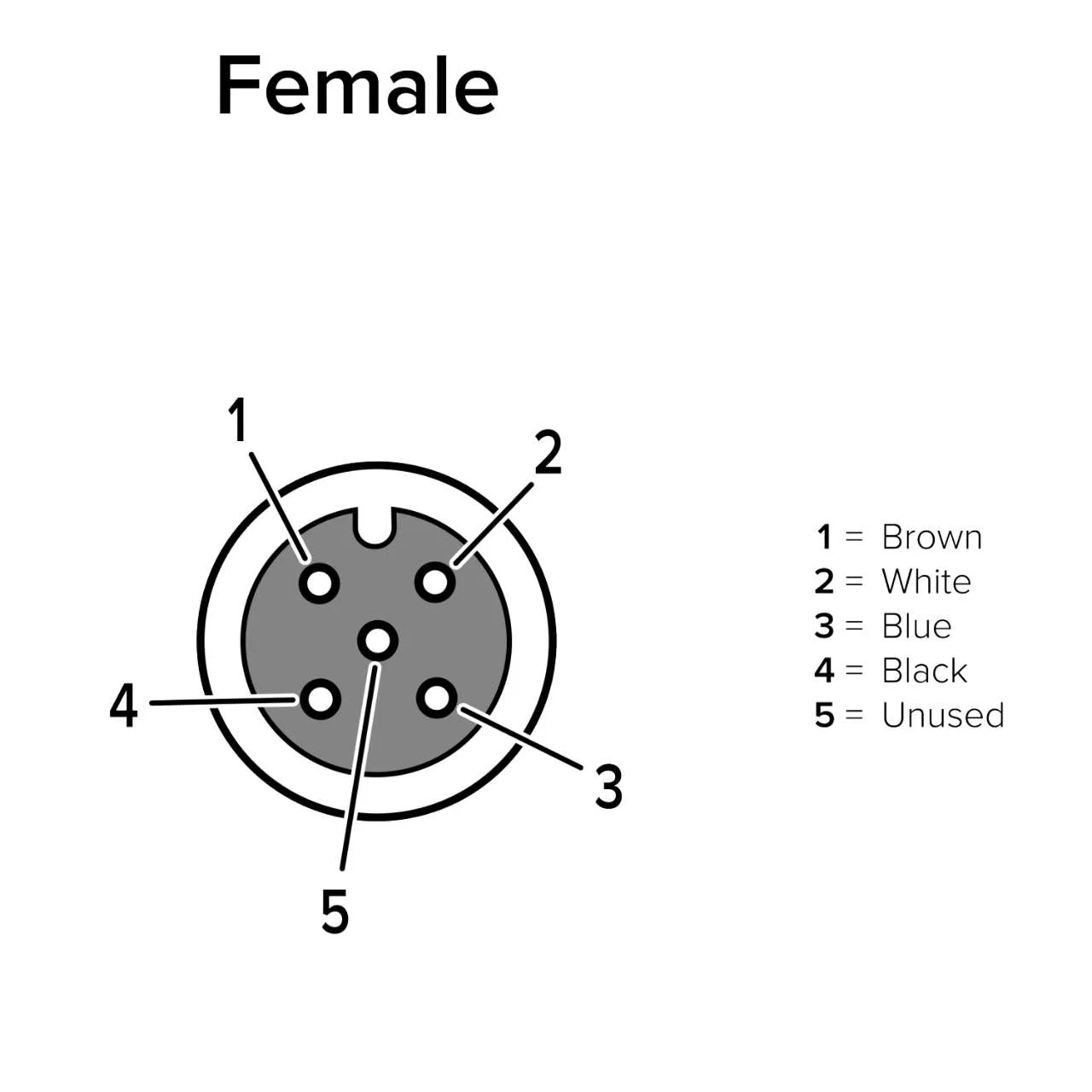

| Connector 1 Number Of Contacts | 4 |
| Coupling Nut Material | Nickel Plated Brass |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Black |
| Connector 1 Key Code | A |
| Connector 1 Gender | Female |
| Outside Cable Diameter (Mm) | 5.20 |
| Cordset Length (M) | 2 |
| Connector 1 Orientation | Right Angle |
| Overmold Material And Color | PUR Black |
| Shield/No Shield | Shield – Floating to Drain |
| Minimum Temp. (Celsius) | -40 |
| Maximum Temp. (Celsius) | 70 |
| Current Rating (A) | 4.0 |
| Supply Voltage | 30 V ac/dc |
| Item Status | RELEASED |
| Feature: Washdown Rated | No |
| Feature: Hazardous Area | No |
| Oil/Grease Resistant | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 03/26/2025 |
