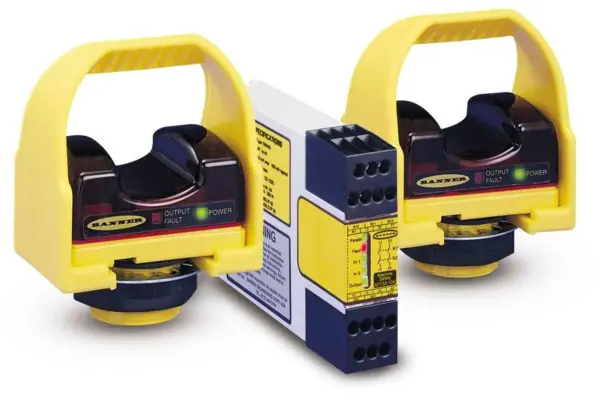

Banner Engineering ATK-VP6Q
DUO-TOUCH Two-Hand Control Kit Containing:
(2) STBVP6Q Buttons 4-pin Mini-Style QDs and PNP Outputs
(1) AT-FM-10K Safety Relay Module
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
DUO-TOUCH Two-Hand Control Kit Containing:
(2) STBVP6Q Buttons 4-pin Mini-Style QDs and PNP Outputs
(1) AT-FM-10K Safety Relay Module
Specification
| Power | AC/DC Universal |
|---|---|
| Ip Rating | IP20 |
| Network View And Configure | No |
| Supply Voltage | 24 V ac/dc |
| Item Status | RELEASED |
| Device Type | Safety Relay |
| In Series Diagnostics | No |
| Safety Module Type | Two-Hand Control Module |
| Lcd Display | No |
| Expandable | No |
| Dimension (H X W X D In Mm) | 84 x 22.5 x 118 |
| Relative Humidity | 90% @ 50° C |
| Max Operating Temperature (C) | 50 |
| Input Operation | Simultaneous <= 500 ms (500 ms typical) |
| Number Of Safe Inputs | 1 |
| Input Configuration | 2 x complementary (contact or PNP) |
| Safety Input Dual Channel (Dry Contact) | 25 mA @ 24 V dc (1 NO / 1 NC per channel) |
| Safety Input Dual Channel (Solid State) | 25 mA @ 24 V dc (1 complementary PNP pair per channel) |
| Independently Controlled Safe Outputs | 1 |
| Output Configuration | 2 NO |
| Non Safe Output Rating | N/A |
| Safe Output Rating | Relay – 6 A |
| Splittable Safe Output | No |
| Mechanical Life (Operations In Millions) | 20 |
| Power Consumption | 3 W / 3 VA |
| Response Time (Ms) | 35 (max.) |
| Terminal Type | Screw |
| Removable Terminals | Yes |
| Vibration | 10-55 Hz at 0.35 mm |
| Electrical Life (Cycles @ Va) | 1,000,000 @ 250 VA |
| Pl Rating | e |
| Safety Category Rating | 4 |
| Sil Rating | 3 |
| S I S T E M A | PFHd = 1.5 x 10-9 |
| Thc Rating | IIIC |
| Two Hand Controls | Yes |
| Gate Switch (Nc/Nc) Input | No |
| Gate Switch (Nc/No) Input | No |
| Gate Switch (Ossd) Input | No |
| Light Curtains/Scanner With Edm Input | No |
| Light Curtains/Scanner Without Edm Input | No |
| Ether Net/ I P | No |
| Common Ethernet Protocol | No |
| Modbus/ T C P | No |
| P C C C | No |
| P R O F I N E T | No |
