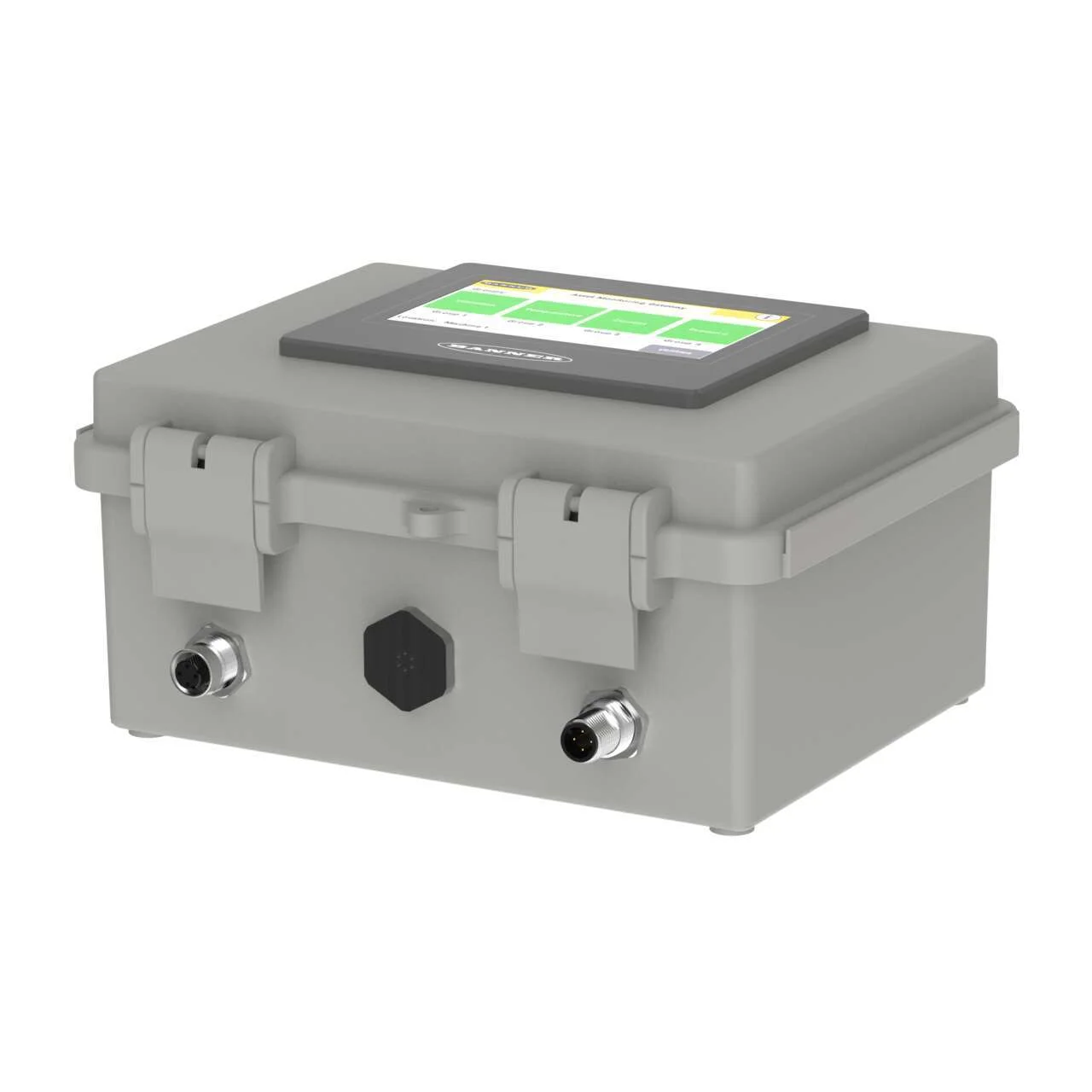

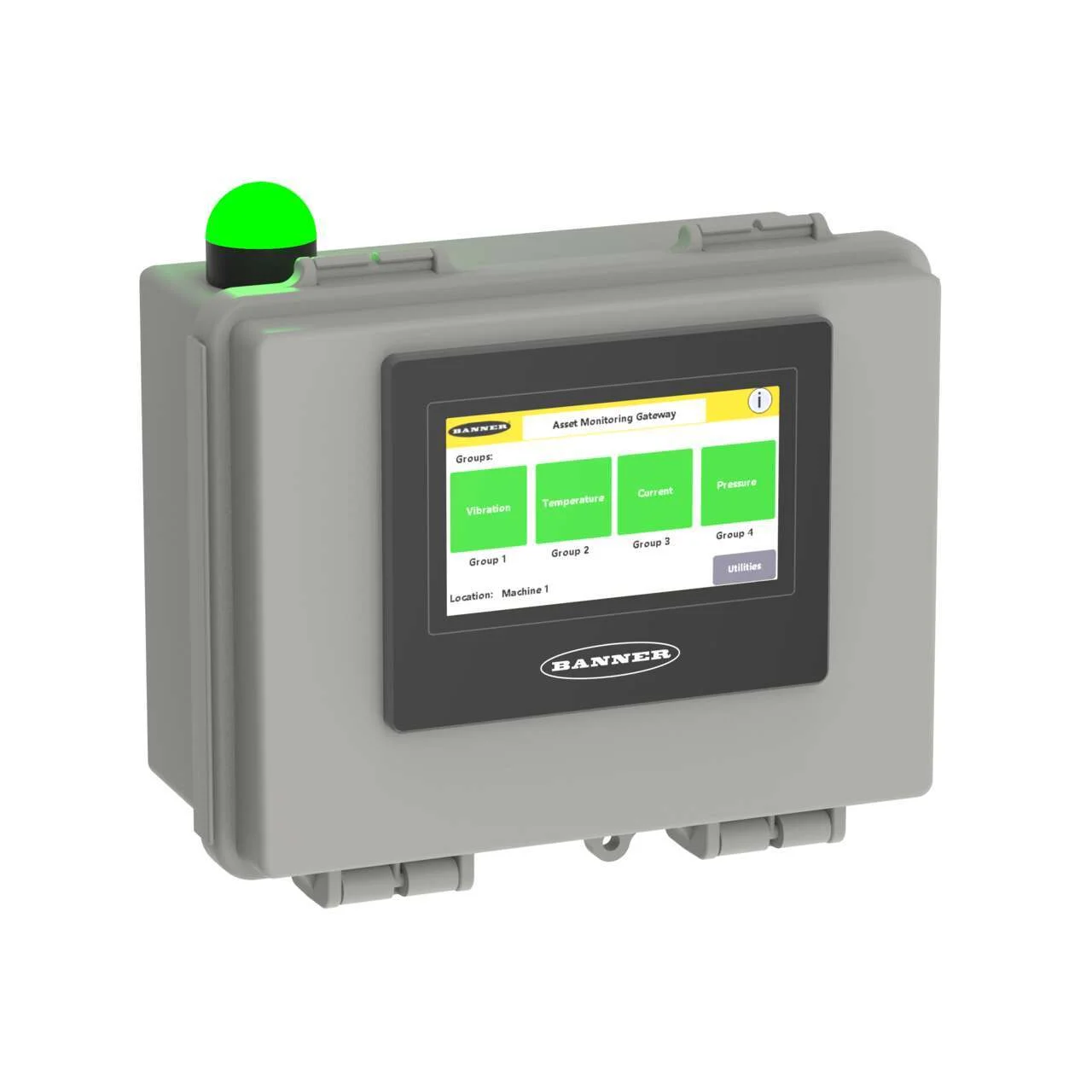

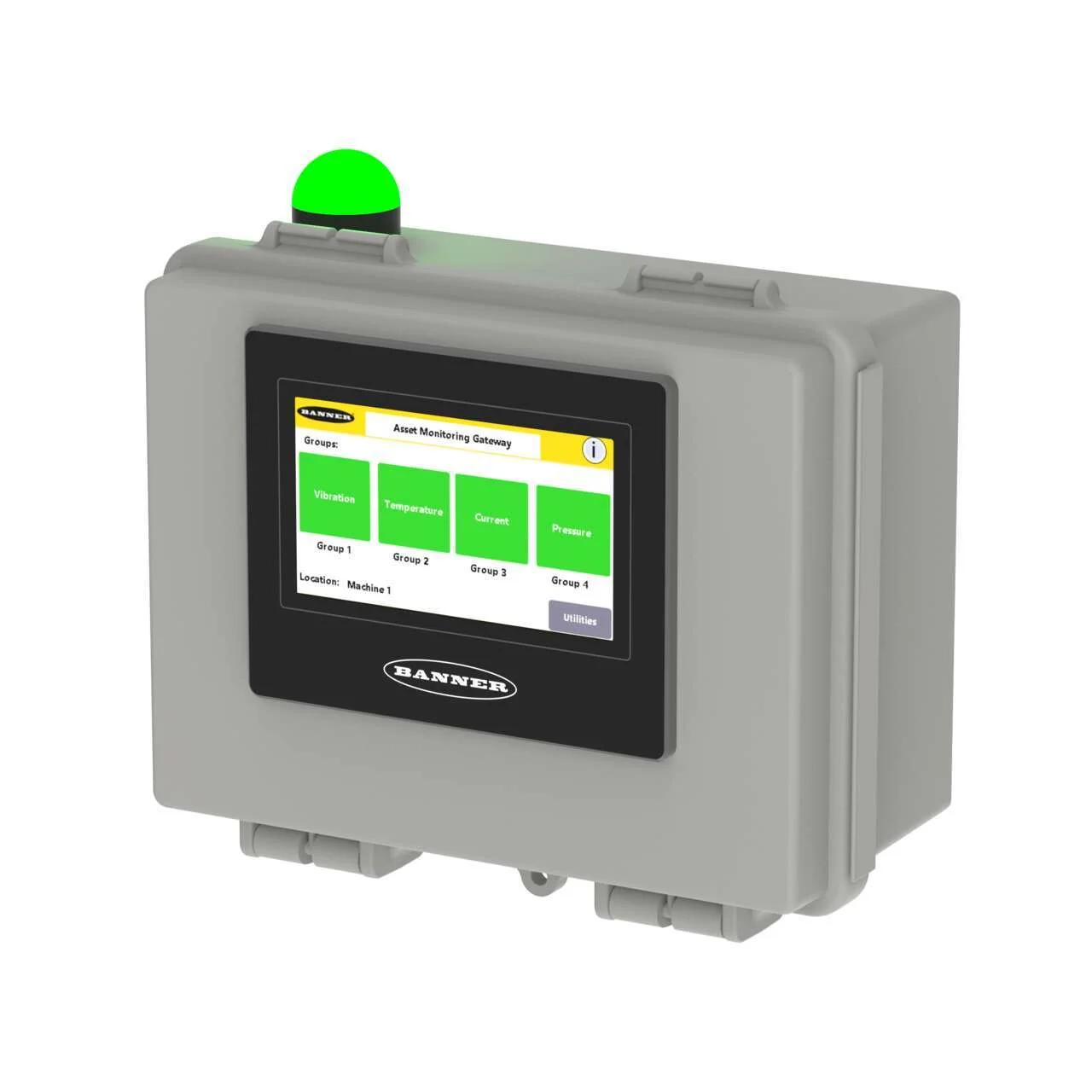

Banner Engineering AMG-SNAP-ID-C
Asset Monitoring Gateway w/CDS
1 Year CDS Plan with M12 D-Coded Ethernet Cable
SNAP I.D. Auto-Detect Modbus Devices via 4 in HMI
Power Supply Included
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Asset Monitoring Gateway w/CDS
1 Year CDS Plan with M12 D-Coded Ethernet Cable
SNAP I.D. Auto-Detect Modbus Devices via 4 in HMI
Power Supply Included
Specification
| Power | DC |
|---|---|
| Max Op. Temperature (C) | 60 |
| Min Op. Temperature (C) | -10 |
| Ships With Battery | Yes |
| Ip Rating | IP65 |
| Modbus Server | No |
| Banner Cloud Id | Yes |
| Supply Voltage | 24 V dc |
| Item Status | RELEASED |
| Primary Housing Material | ABS/Polycarbonate |
| Feature: Hazardous Area | No |
| Application: Relative Humidity Input | No |
| Application: Vibration Sensor Input | No |
| Application: Tank Level | No |
| Pressure Sensor Input | No |
| Ether Net/ I P | Yes |
| Modbus Rtu | Yes |
| Modbus/ T C P | Yes |
| R S 232 | No |
| R S 485 | Yes |
| Wireless | No |
| Inside Housing Dimensions (Cm) | 19.56 x 14.55 x 9.40 |
| Outside Housing Dimensions (Cm) | 19.99 x 14.99 x 9.98 |
| Screen Type | Standard Touch Control Panel |
| Display Size (Cm) | 10.9 |
| Resolution (Pixels) | 480 x 272 |
| Relative Humidity | 90% |
| Point To Point Topology | No |
| Point To Multipoint Topology | No |
| Star Topology | No |
| Tree Topology | No |
| Battery Type/Size | Lithium/CR2032 |
