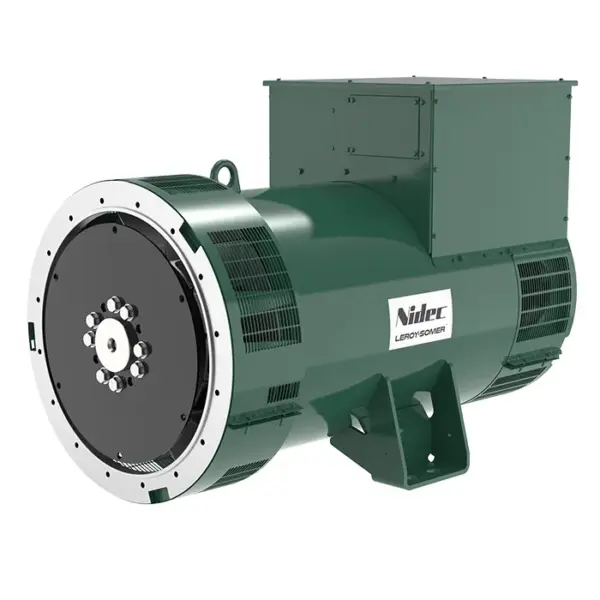

Acim Nidec Leroy-Somer LSA 49.3 | 730 – 1000 kVA
Power
730 – 1000 kVA*
Voltage
220 – 480V
Poles
4…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Power
730 – 1000 kVA*
Voltage
220 – 480V
Poles
4
Speed
1500 – 1800 rpm
Shaft height
400 mm
Max efficiency
96.9 %
Excitation
AREP / PMG
Regulation
D350 / D550
* kVA/50Hz – kW/60Hz | Continuous / 40°C
(Discrepancies may occur, consult catalogue for exact figures)
Applications
Commercial
Industrial
Powerplants
Marine
Benefits
LSA alternators are engineered to withstand the test of time and extreme conditions, sourcing the best materials and focusing on sturdy construction.
Theys are also highly customizable and can be adapted to fit any specification.
Specification
| Insulation class | H H |
|---|---|
| Winding pitch | 2/3 (winding 6S) 2/3 (winding 6S) |
| Number of wires | 6 (12 option) 6 (12 option) |
| Protection | IP 23 IP 23 |
| Altitude | ≤ 1000 m ≤ 1000 m |
| Overspeed | 2250 rpm 2250 rpm |
| Air flow | 1 m3/s (50Hz) / 1.2 m3/s (60Hz) 1 m3/s (50Hz) / 1.2 m3/s (60Hz) |
| Excitation system / AVR type | AREP or PMG / D350 AREP or PMG / D350 |
| Voltage regulation (Steady state) | ± 0,25% ± 0,25% |
| Short-circuit current (3 IN / 10 s) | 300 % (3 IN) : 10s 300 % (3 IN) : 10s |
| Regulators | D550 D350 |
| Mains Paralleling | â – |
| 3-phase sensing | â â |
| Advanced settings | â â |
| Data logging & monitoring | â â |
| Remote communication | â â |
| Remote voltage potentiometer | â â |
| CT for paralleling | â â |
| R791 RFI suppression kit (standard in Europe) | â â |
| Flex plate / Flange | 1/2 1 |
| 14 | â â |
| 18 | – – |
