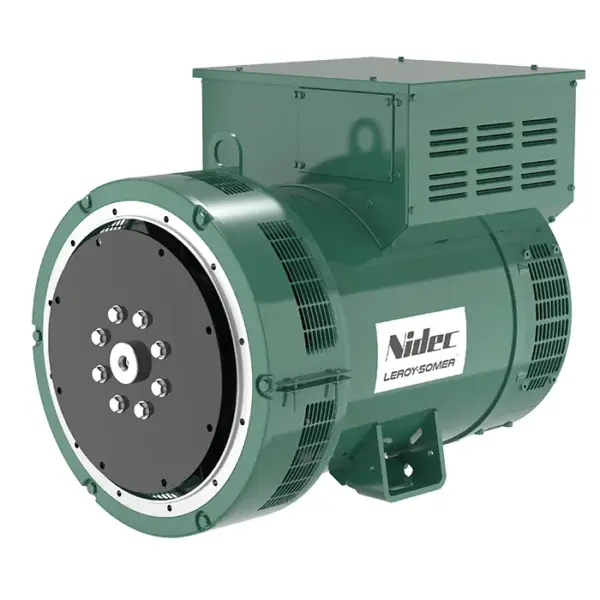

Acim Nidec Leroy-Somer LSA 46.3 | 230 – 365 kVA
Power
230 – 365 kVA*
Voltage
220 – 480V
Poles
4…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Power
230 – 365 kVA*
Voltage
220 – 480V
Poles
4
Speed
1500 – 1800 rpm
Shaft height
280 mm
Max efficiency
95.9 %
Excitation
SHUNT / AREP / PMG
Regulation
R250 / D350 / D550
* kVA/50Hz – kW/60Hz | Continuous / 40°C
(Discrepancies may occur, consult catalogue for exact figures)
Applications
Commercial
Industrial
Powerplants
Marine
Benefits
COMPACT
Opimized cooling system.
HIGH RELIABILITY
Class H insulation.
HIGH EFFICIENCY
Suited for prime applications
Specification
| Insulation class | H H |
|---|---|
| Winding pitch | 2/3 (winding 6) 2/3 (winding 6) |
| Number of wires | 12 12 |
| Protection | IP 23 IP 23 |
| Altitude | ≤ 1000 m ≤ 1000 m |
| Overspeed | 2250 rpm 2250 rpm |
| Air flow | 0.48m3/s, 50 Hz – 0.58 m3/s, 60 Hz 0.48m3/s, 50 Hz – 0.58 m3/s, 60 Hz |
| Excitation system / AVR type | SHUNT / R250 – AREP or PMG / D350 SHUNT / R250 – AREP or PMG / D350 |
| Voltage regulation (Steady state) | ±0.5% SHUNT / ±0.25% AREP ±0.5% SHUNT / ±0.25% AREP |
| Short-circuit current (3 IN / 10 s) | 300 % (3 IN) : 10s 300 % (3 IN) : 10s |
| Regulators | D350 R250 |
| Mains Paralleling | – – |
| 3-phase sensing | â – |
| Advanced settings | â – |
| Data logging & monitoring | â – |
| Remote communication | â – |
| Remote voltage potentiometer | â â |
| CT for paralleling | â – |
| R791 RFI suppression kit (standard in Europe) | â â |
| Flex plate / Flange | 2 3 |
| 11 ½ | â â |
| 14 | – – |
| 18 | – – |
