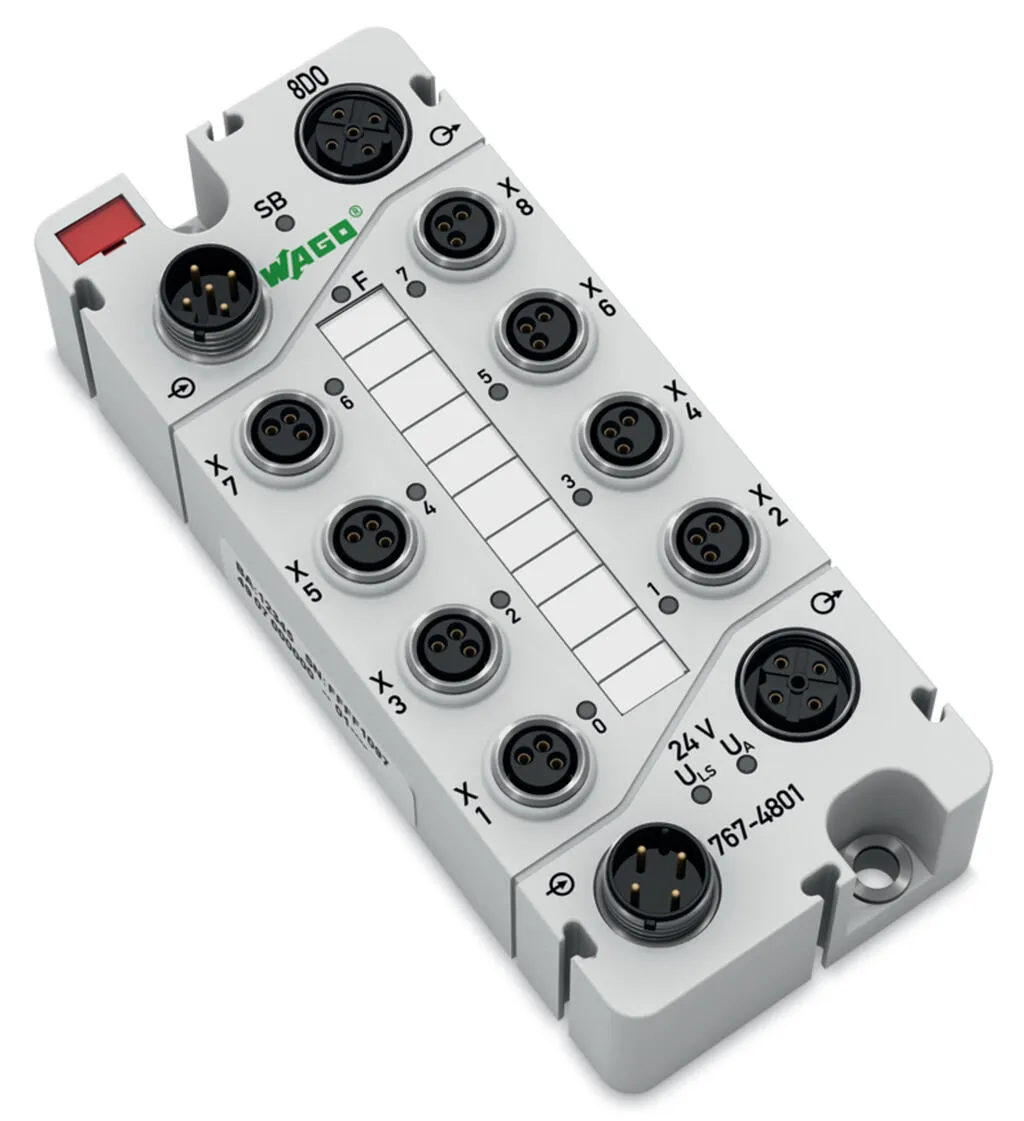

Wago 767-4801
Short description:This digital output module controls actuators (e.g., magnetic valves, DC contactors, indicators).Features:- 8 digital outputs, 24 VDC / 0.5 A‐ Diagnostic-capable (per channel)‐ Param…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:This digital output module controls actuators (e.g., magnetic valves, DC contactors, indicators).Features:- 8 digital outputs, 24 VDC / 0.5 A‐ Diagnostic-capable (per channel)‐ Parameterizable (inversion, substitute value strategy, manual mode, online simulation and diagnostics)Includes:1 x WMB marker, red1 x marking strip2 x M8 protective cap
Specification
Technical data
| Number of digital outputs | 8 |
|---|---|
| Total number of channels (module) | 8 |
| Signal type | Voltage |
| Signal type (voltage) | 24 VDC |
| Actuator connection | 8 x (2-wire, 3-wire) |
| Output characteristic | high-side switching |
| Output current per channel | 0.5 A |
| Output current (module) | 4 A |
| Output current | short-circuit/overload-protected |
| Leakage current in OFF state | 150 µA |
| Switching frequency (max.) | 500 Hz; Inductive load |
| Switching frequency (max.) (2) | 20 Hz; Resistive load |
| Switching frequency (max.) (3) | 500 Hz; Lamp load |
| Load type | Resistive, inductive, lamp load |
| Process data width | 1-byte data + status |
| Parameterizable functions | I/O diagnostics (per module): Undervoltage (ULS + UA), I/O diagnostics (per channel): Short circuit/overload (actuators); Wire break (actuators); Overtemperature, Online simulation (per module): Diagnostics, Online simulation (per channel): Lock/Unlock; Simulation value: 0/1; Diagnostics, Inversion (per channel): On/Off, Substitute value (per channel): 0/1, Substitute value strategy (per channel): Switch substitute value/Hold last value, Manual mode (per channel): On/Off, Manual mode value (by channel): 0/1 |
| Protection | Reverse voltage protection for ULS + UA |
| Output resistance | 0.4 Ω |
| Supply voltage (system and sensor) | 24 VDC(-25 … +30 %); Logic and sensors (ULS) |
| Current consumption: System and sensor | 45 mA |
| System and sensor power consumption (note) | logic component only |
| Supply voltage (field) | 24 VDC (-25 … +30 %); Actuators (UA) |
| Current consumption, field supply (module with no external load) | 25 mA |
| Isolation | 500 V supply/system bus |

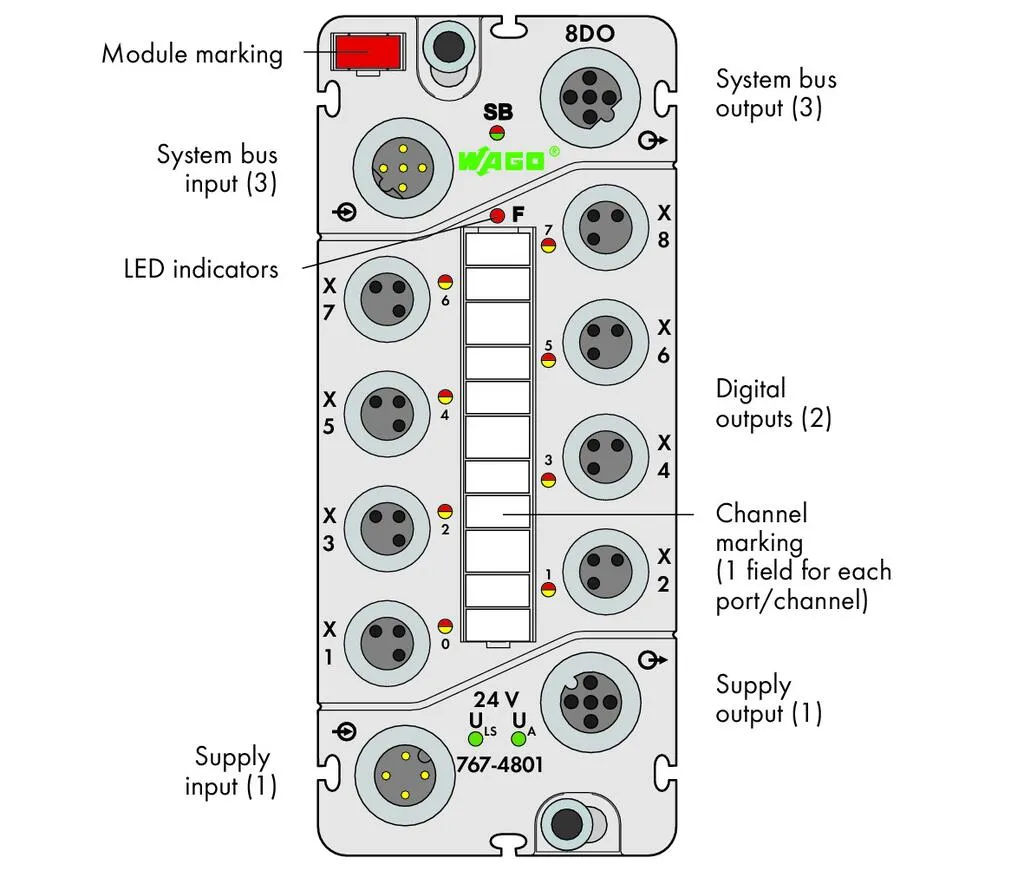

| Indicators | LED (F) red: Error status; LED (SB) green/red/orange: System bus status; LED (ULS, UA) green: Power supply status; LED (0 … 7) yellow/red: Status/diagnostics DO 1 … DO 8; Non-retentive displays |
| Current carrying capacity (supply connections) | 8 A |
| Rise time from “0” to “1” | typ. 40 µs (resistive load) |
| Output operation | non-retentive |
| Protection against reverse voltages | 0.5 A |
| Voltage drop against U<sub>A</sub> | 0.2 |
| S-bus (system bus) disruption | 0 V status |
Connection data

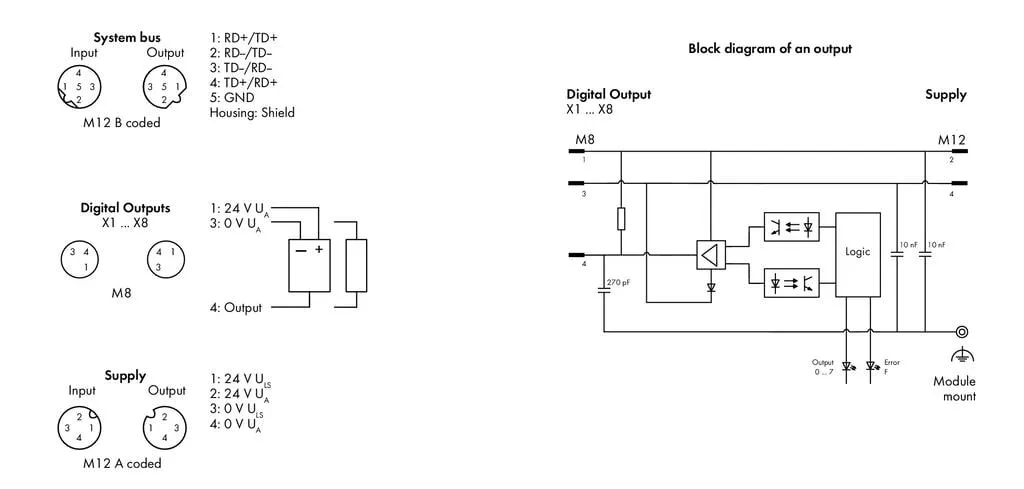

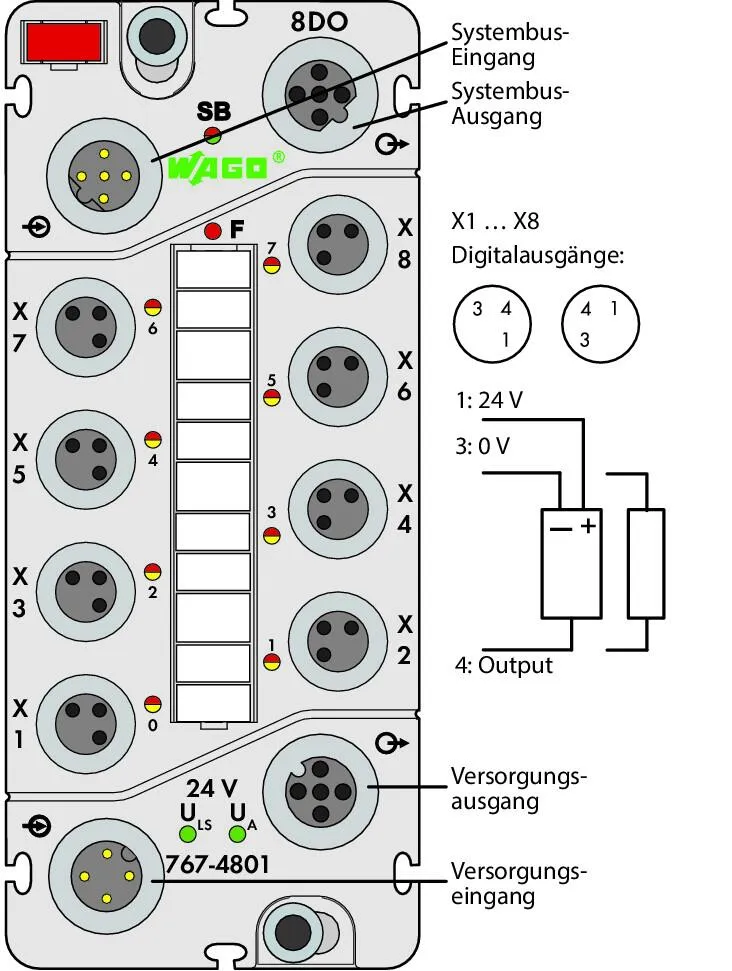

| Connection technology: I/O | 8 x M8 socket; 3-pole |
|---|---|
| Connection technology: field supply | 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket; 4-pole; A-coded |
| Connection technology: system supply | 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded |
| Connection technology: system bus | 1 x M12 socket, 5-pole, B-coded, shielded; 1 x M12 plug, 5-pole, B-coded, shielded |
| Connection requirement (permissible cable length) | 30 m |
| Connection requirement (permissible cable type) | Digital outputs: unshielded |
Physical data
| Width | 50 mm / 1.969 inches |
|---|---|
| Height | 35.7 mm / 1.406 inches |
| Depth | 117 mm / 4.606 inches |
Material data
| Housing material | Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free |
|---|---|
| Fire load | 0.015 MJ |
| Weight | 252 g |
| Conformity marking | CE |
| Encapsulation | Polyurethane (PUR), halogen/silicon-free |
Environmental requirements
| Ambient temperature (operation) | -25 … +60 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP67 |
| Protection class | III |
| Operating altitude | −1000 … 2000 m; Air pressure: 1080 … 795 hPa |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 5g per IEC 60068-2-6 |
| Shock resistance | Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 0.1 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 0.5 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454545208 |
| Customs tariff number | 85371098990 |
| End of Sale | 2018-09-30 |
| End of Production | 2018-10-05 |
| End of Delivery | 2018-10-15 |
| End of Service and Repair | 2020-09-29 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Bulgaria) | 32aceeec-67b8-4365-93a7-3c19fe8bacae |
| SCIP notification number (Czech Republic) | b5efc888-bee4-40c7-bcfc-78b0d45ed2ba |
