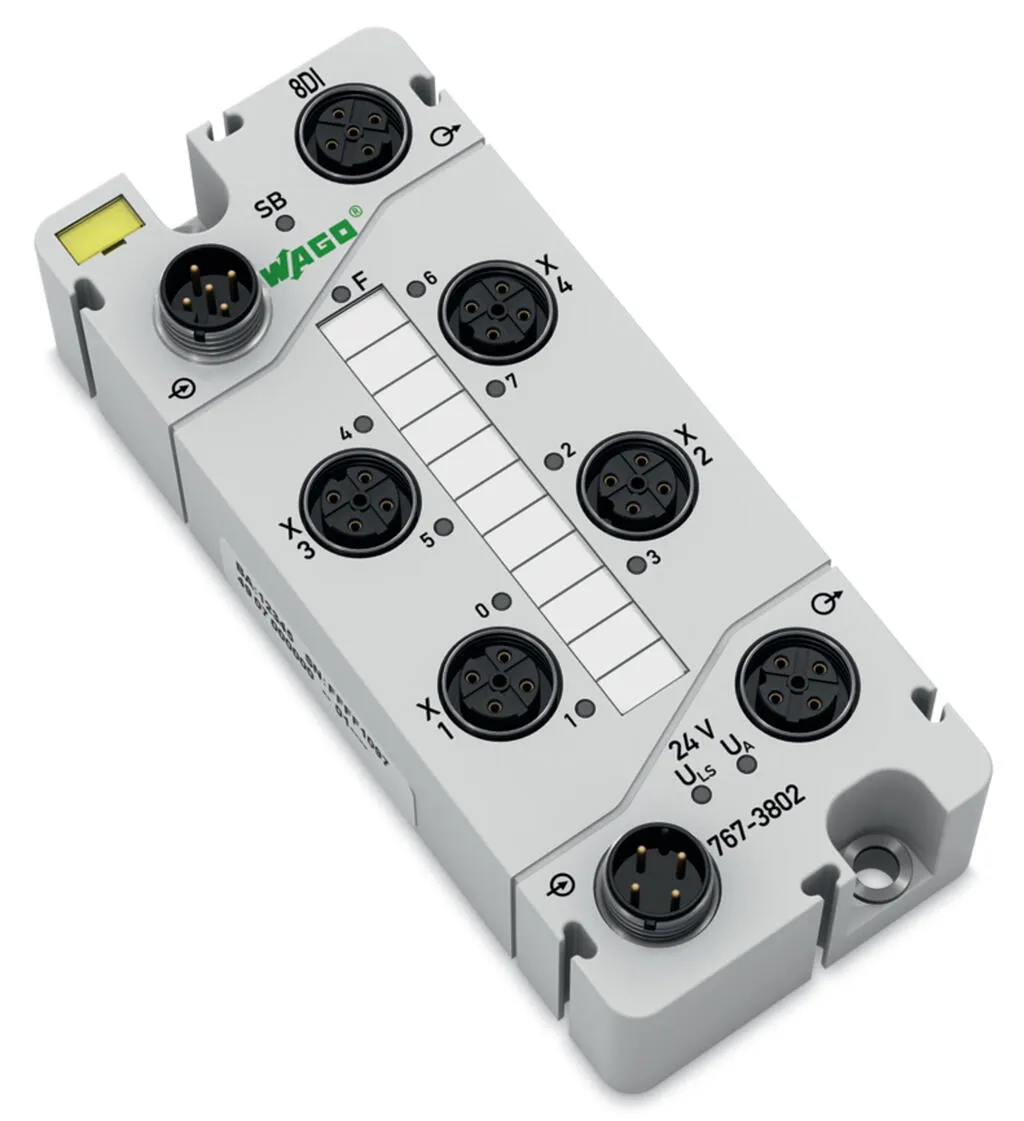

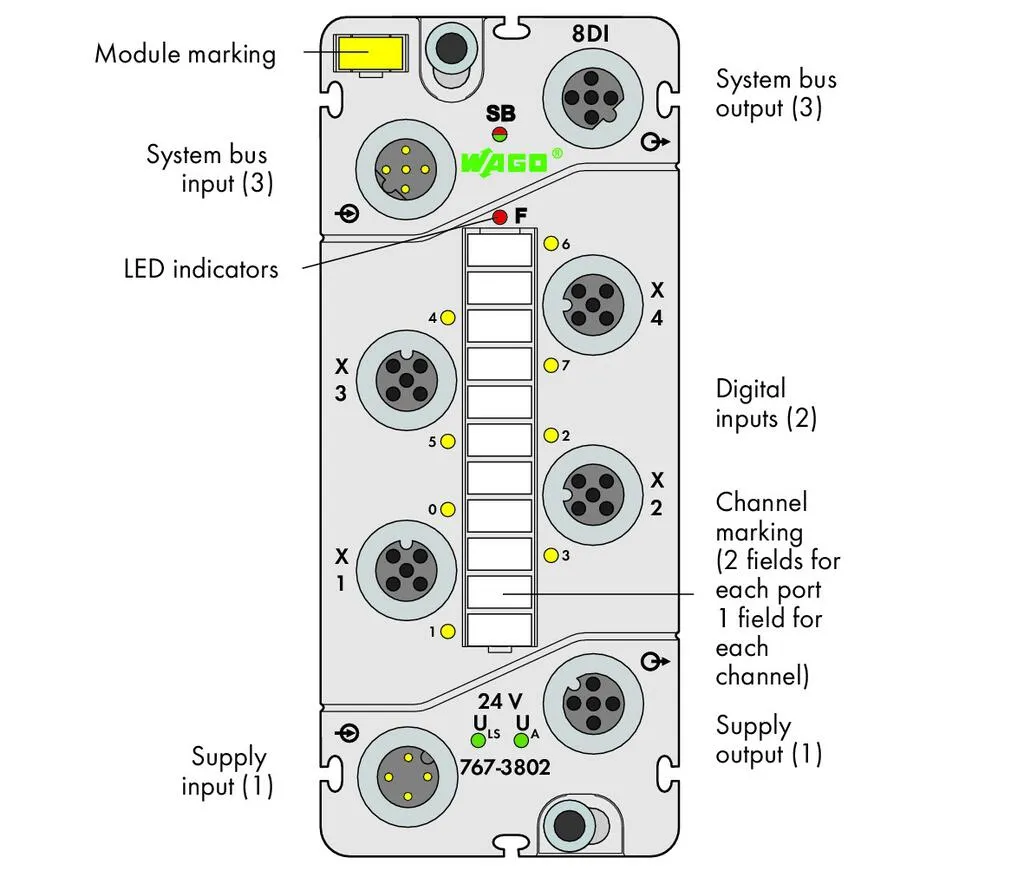

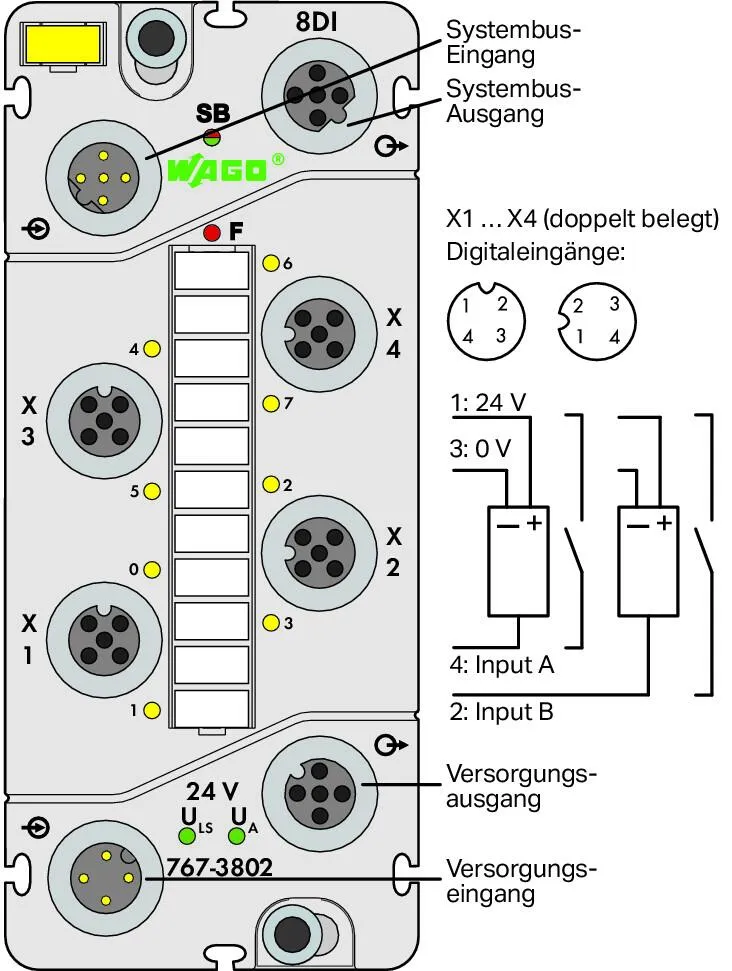

Wago 767-3802

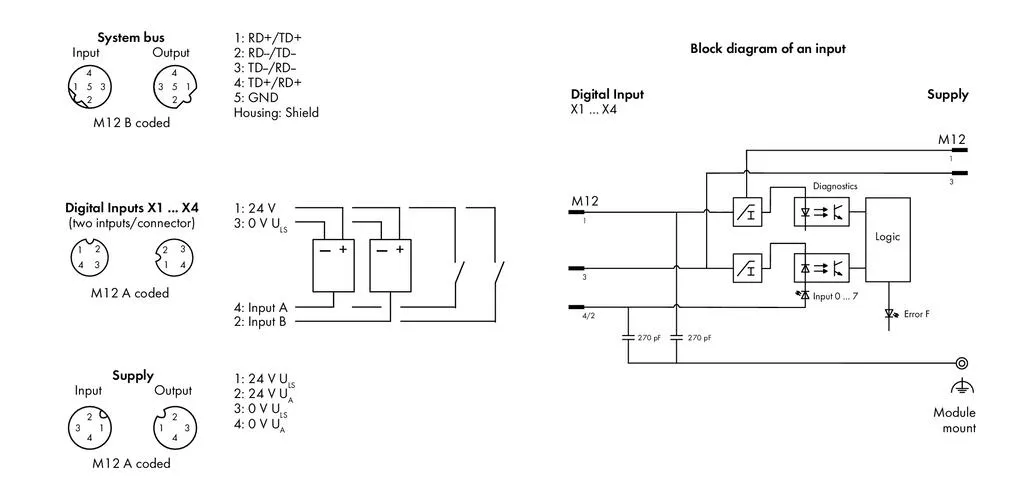

Short description:This digital input module records binary signals from switches, sensors and proximity sensors (BEROs).Features:8 digital inputs, 24 VDCDiagnostic-capable (module by module)Parameteri…
