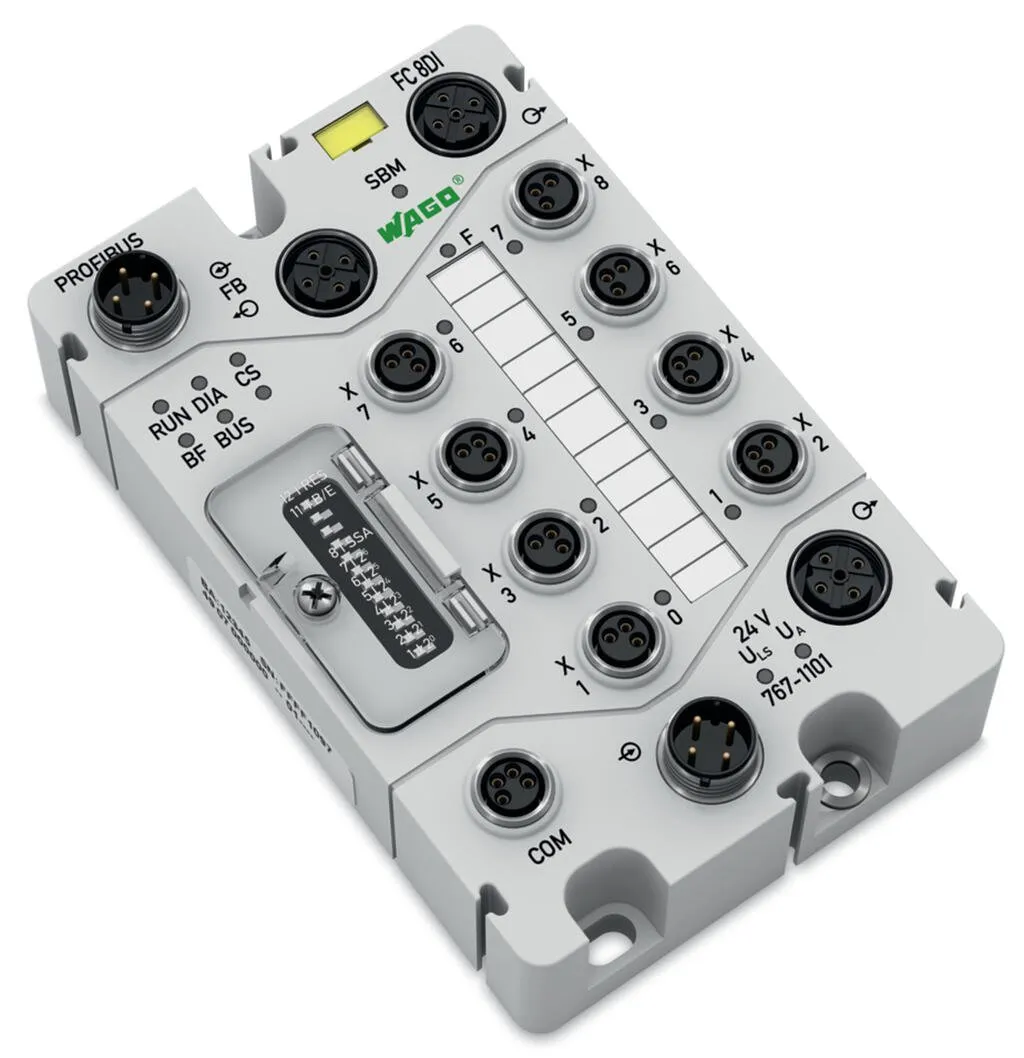

Wago 767-1101
Short description:PROFIBUS DP is the manufacturer-independent and open fieldbus standard from PROFIBUS & PROFINET International (PI). This standard offers solutions for production and process automati…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PROFIBUS DP is the manufacturer-independent and open fieldbus standard from PROFIBUS & PROFINET International (PI). This standard offers solutions for production and process automation, as well as safety applications while covering all drive technology up to isochronous motion control applications.This fieldbus coupler connects WAGO’s 767 Series I/O Modules to PROFIBUS DP. The coupler creates a process image of all inputs and outputs depending on the station’s module structure and the configuration data transmitted by the DP master. In addition, the coupler provides the connected I/O modules with the parametrization data provided by the device description (GSD file) and transferred by the DP master, if required. In DP-VO operation mode, the device provides both device/ID/channel-based diagnostics and module status. In DP-V1 operation mode, status messages and optional diagnostic alarms are provided instead of ID/channel-based diagnostics.Features:‐ Includes eight 24 VDC digital inputs- Modular and extendable by up to 63 I/O modules (via system bus connector)- USB interface for maintenance (FDT/DTM configuration and system update)‐ Parametrization via GSD or FDT/ DTM (incl. diagnostics and simulation) – Sealable operation panel (operating mode and address switches)Includes:1 x module marker (WMB), yellow1 x channel marking strip2 x M8 protective cap
Specification
Technical data
| Communications | PROFIBUS |
|---|---|
| Transmission rate | 9.6 kBd … 12 MBd |
| Transmission medium (communication/fieldbus) | RS-485 / 2-core copper cable per IEC 61158 and EN50170 |
| Station addresses | 0 … 125 (adjustable via operation panel or PROFIBUS) |
| Input and output process image (fieldbus) max. | 244 bytes/244 bytes |
| Supply voltage (field) | 24 VDC (-25 … +30 %); Actuators (UA), for transmission only |
| Isolation | 500 V supply/system bus/fieldbus |

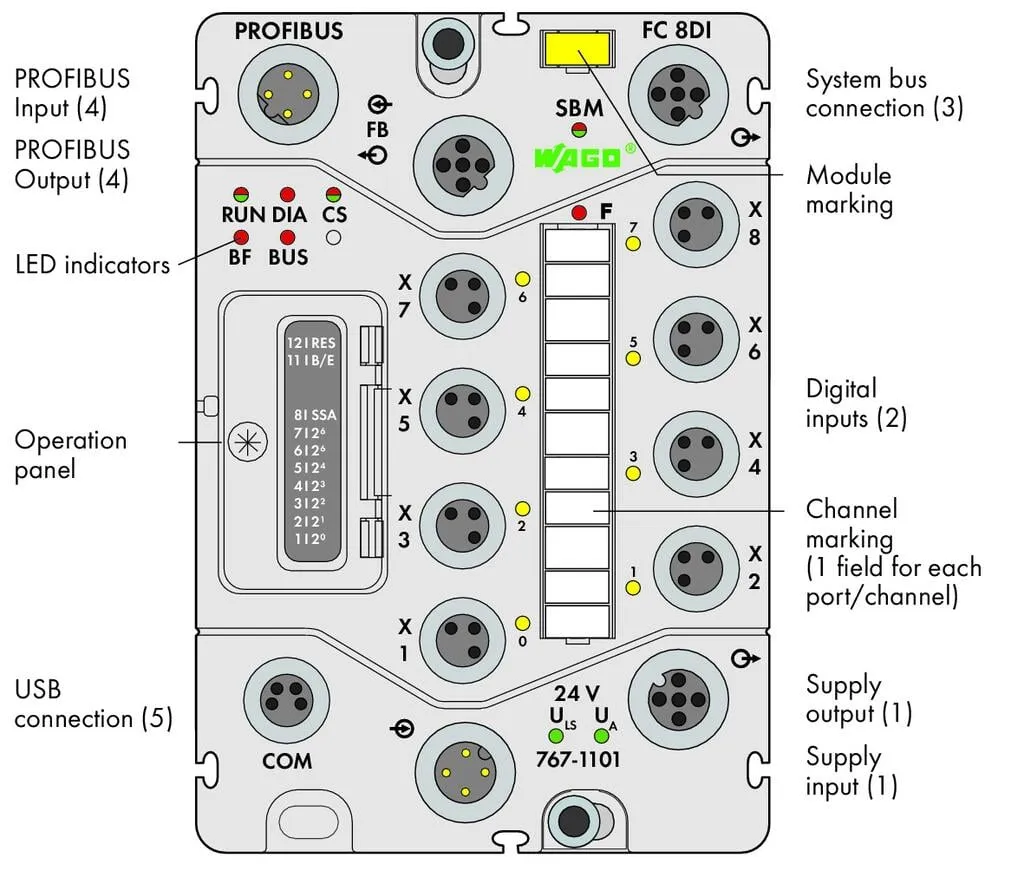

| Indicators | LED (BF, DIA, BUS, F) red: Bus error, fieldbus diagnostics, configuration error, input error status; LED (RUN, SBM, CS) green/red: Fieldbus coupler initialization, system bus master, fieldbus coupler status; LED (ULS, UA) green: Power supply status; LED (0 … 7) yellow: Status DI 1 … DI 8; Non-retentive displays |
Connection data

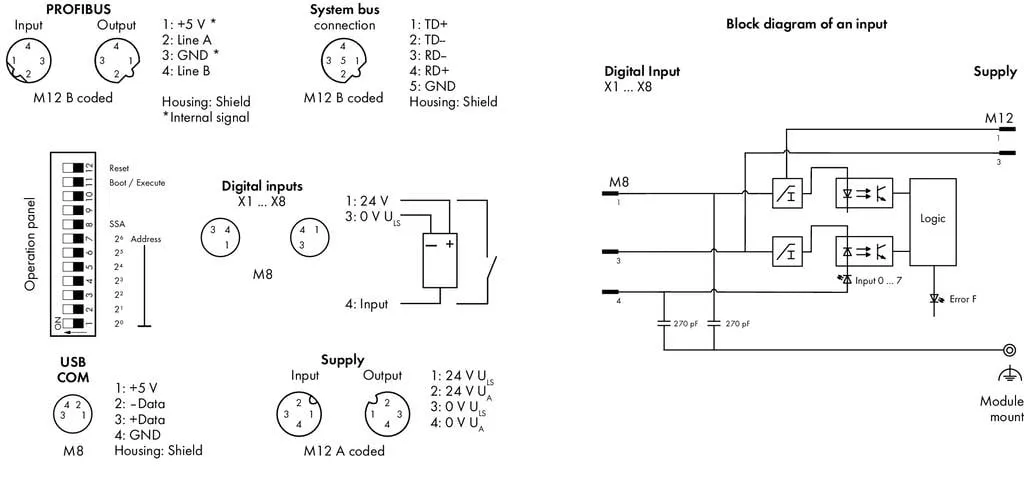

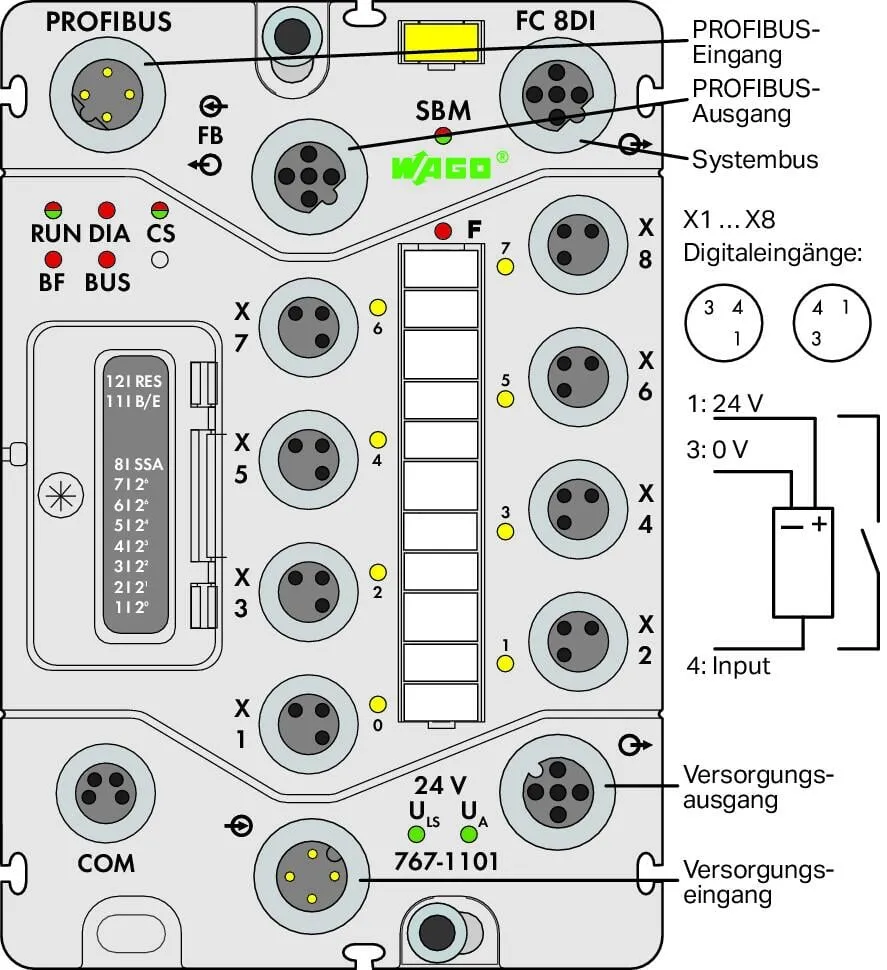

| Connection technology: communication/fieldbus | PROFIBUS: 1 x M12 socket; 4-pole; B-coded |
|---|---|
| Connection technology: field supply | 1 x M12 plug; 4-pole; A-coded; 1 x M12 socket; 4-pole; A-coded |
| Connection technology: system supply | 1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded |
| Connection technology: device configuration | 1 x M8 socket; 4-pole (USB standard 1.1) |
Physical data
| Width | 75 mm / 2.953 inches |
|---|---|
| Height | 35.7 mm / 1.406 inches |
| Depth | 117 mm / 4.606 inches |
Material data
| Color | light gray |
|---|---|
| Housing material | Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free |
| Fire load | 0.016 MJ |
| Weight | 380 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -25 … +60 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP67 |
| Protection class | III |
| Operating altitude | −1000 … 2000 m; Air pressure: 1080 … 795 hPa |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 5g per IEC 60068-2-6 |
| Shock resistance | Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 0.1 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 0.5 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454545093 |
| Customs tariff number | 85176200000 |
| End of Sale | 2018-09-30 |
| End of Production | 2018-10-05 |
| End of Delivery | 2018-10-15 |
| End of Service and Repair | 2020-09-29 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 693-98-1, 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, 2-methylimidazole, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Bulgaria) | 4b51de6e-8513-4ae5-ad41-0f2d42ae7b0b |
| SCIP notification number (Czech Republic) | b1c2999d-989a-4177-8bf0-503c3eb48ff5 |
