Wago 726-904
Additional module for matrix patchboards; for snap-on fixing to mounting adapter; insulated; with CAGE CLAMP®; gray 726-904
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Additional module for matrix patchboards; for snap-on fixing to mounting adapter; insulated; with CAGE CLAMP®; gray 726-904
Specification
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 500 V |
|---|---|
| Rated impulse withstand voltage (III / 3) | 4 kV |
| Rated current | 10 A |
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Solid conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Strip length | 9 mm / 0.35 inches |
| Wiring direction | Front-entry wiring |

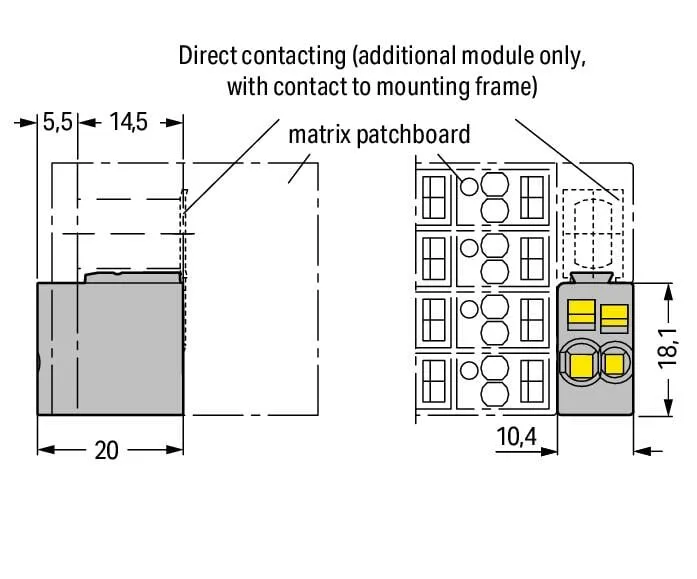

Physical data
| Width | 10.4 mm / 0.409 inches |
|---|---|
| Height | 18.1 mm / 0.713 inches |
| Depth | 20 mm / 0.787 inches |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Fire load | 0.073 MJ |
| Weight | 3.8 g |
Commercial data
| Product Group | 12 (Matrix Patch Board) |
|---|---|
| PU (SPU) | 25 (1) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4017332289306 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
