Wago 726-841

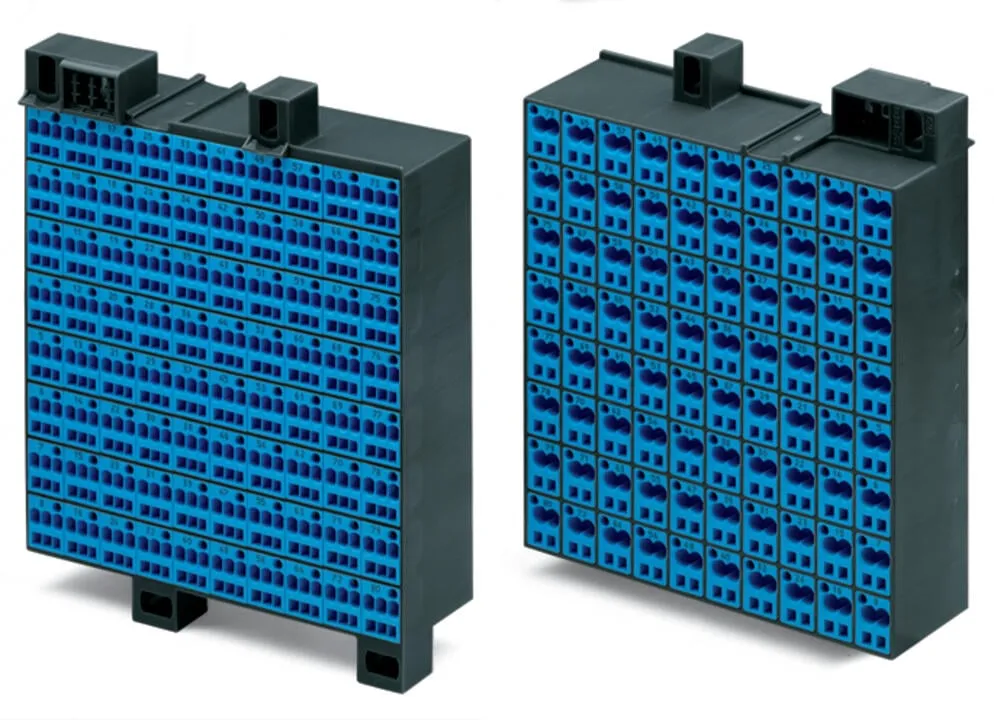

Matrix patchboards, 726 Series, CAGE CLAMP®Our matrix patchboards (item number 726-841) simplify electrical installations. Conductors can only be connected to these matrix patchboards if their strip l…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Matrix patchboards, 726 Series, CAGE CLAMP®Our matrix patchboards (item number 726-841) simplify electrical installations. Conductors can only be connected to these matrix patchboards if their strip length is between 8 and 10 mm . This product features conductor terminals and utilizes CAGE CLAMP®. Our CAGE CLAMP® connection offers a proven and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Dimensions: (107.9 x 132 x 36.5) mm (width x height x depth). Depending on the type of conductor, these matrix patchboards are ideal for conductor cross sections ranging from 0.08 mm² to 1.5 mm² on one side and for conductor cross sections from 0.08 mm² to 2.5 mm² on the other side.
Specification
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 500 V |
|---|---|
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 10 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data - Connection 1
| Connection type | Page 1 |
|---|---|
| Connection technology | CAGE CLAMP® |
| Number of connection points | 3 |
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Strip length | 8 … 10 mm / 0.31 … 0.39 inches |
| Pole number | 80 |
| Wiring direction | Front-entry wiring |
Connection data - Connection 2
| Connection type | Side 2 |
|---|---|
| Number of connection points | 2 |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
Physical data
| Width | 107.9 mm / 4.248 inches |
|---|---|
| Height | 132 mm / 5.197 inches |
| Depth | 36.5 mm / 1.437 inches |
Mechanical data
| Marking | 1 … 80 |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | blue/dark gray |
| Module color | blue |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 8.558 MJ |
| Weight | 449.2 g |
Commercial data
| PU (SPU) | 8 (1) pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4066966340198 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-24-26-08 |
| eCl@ss 9.0 | 27-24-26-08 |
| ETIM 9.0 | EC001604 |
| ETIM 10.0 | EC001604 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
