Wago 726-811

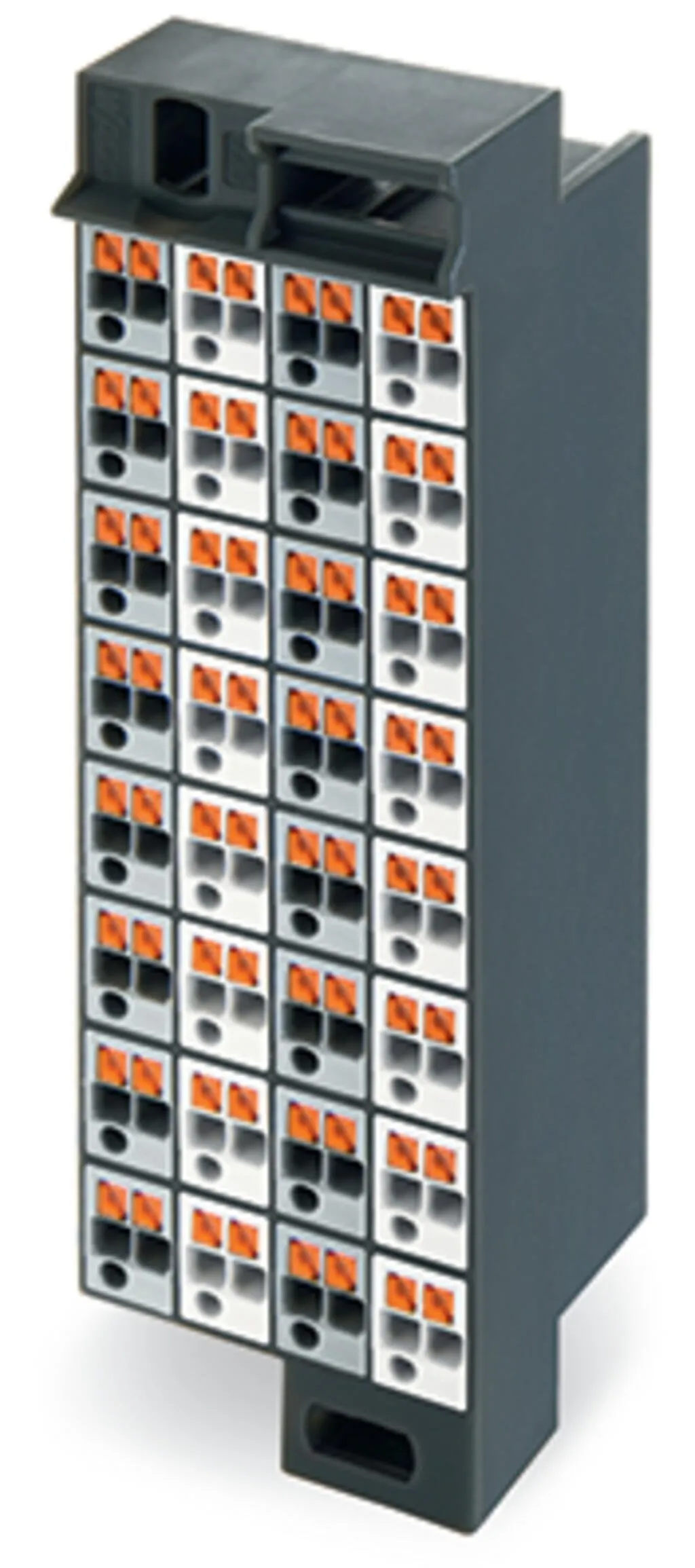

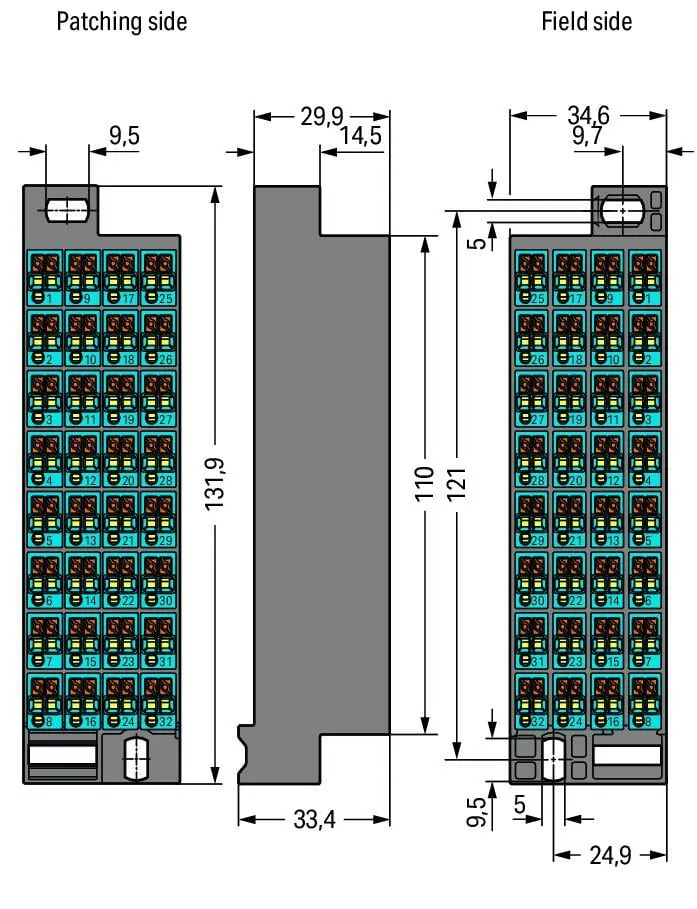

Matrix patchboards, 726 Series, blue/dark grayOur matrix patchboards (item number 726-811) simplify electrical installations. Strip lengths must be 10 mm  when connecting conductors to these matrix patchboards. This product incorporates conductor terminals and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. The dimensions are (34.6 x 131.9 x 33.4) mm (width x height x depth). These matrix patchboards are suitable for conductor cross sections ranging from 0.2 mm² to 1.5 mm² on one side and for conductor cross sections ranging from 0.2 mm² to 1.5 mm² on the other side.
