Wago 726-781

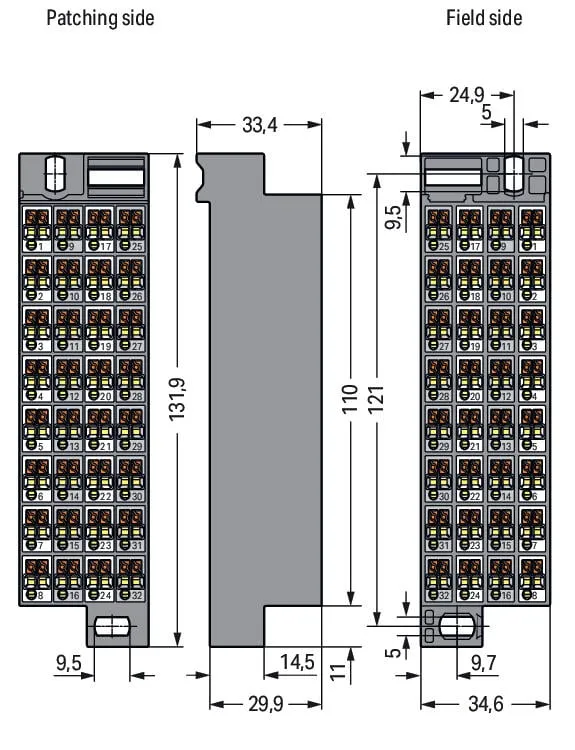

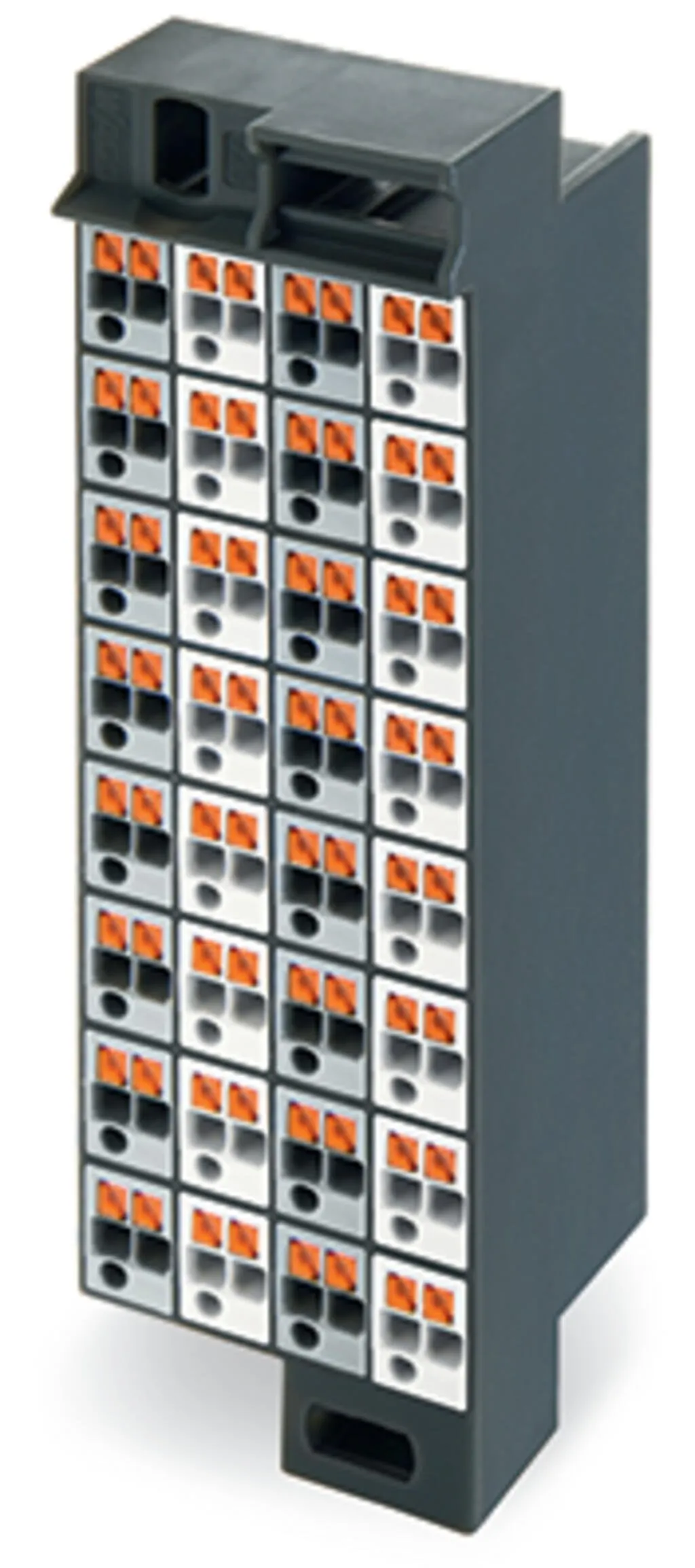

Matrix patchboards, 726 Series, Push-in CAGE CLAMP®These matrix patchboards (item number 726-781) simplify electrical installations. Conductors can only be connected to these matrix patchboards if their strip length is 10 mm . Featuring conductor terminals along with Push-in CAGE CLAMP®, this connector outperforms the competition. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, offering a key advantage: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor’s ferrule is not necessary. The item’s dimensions are (34.6 x 131.9 x 33.4) mm (width x height x depth). These matrix patchboards are suitable for conductor cross sections ranging from 0.2 mm² to 1.5 mm² on one side and for conductor cross sections ranging from 0.2 mm² to 1.5 mm² on the other side.
