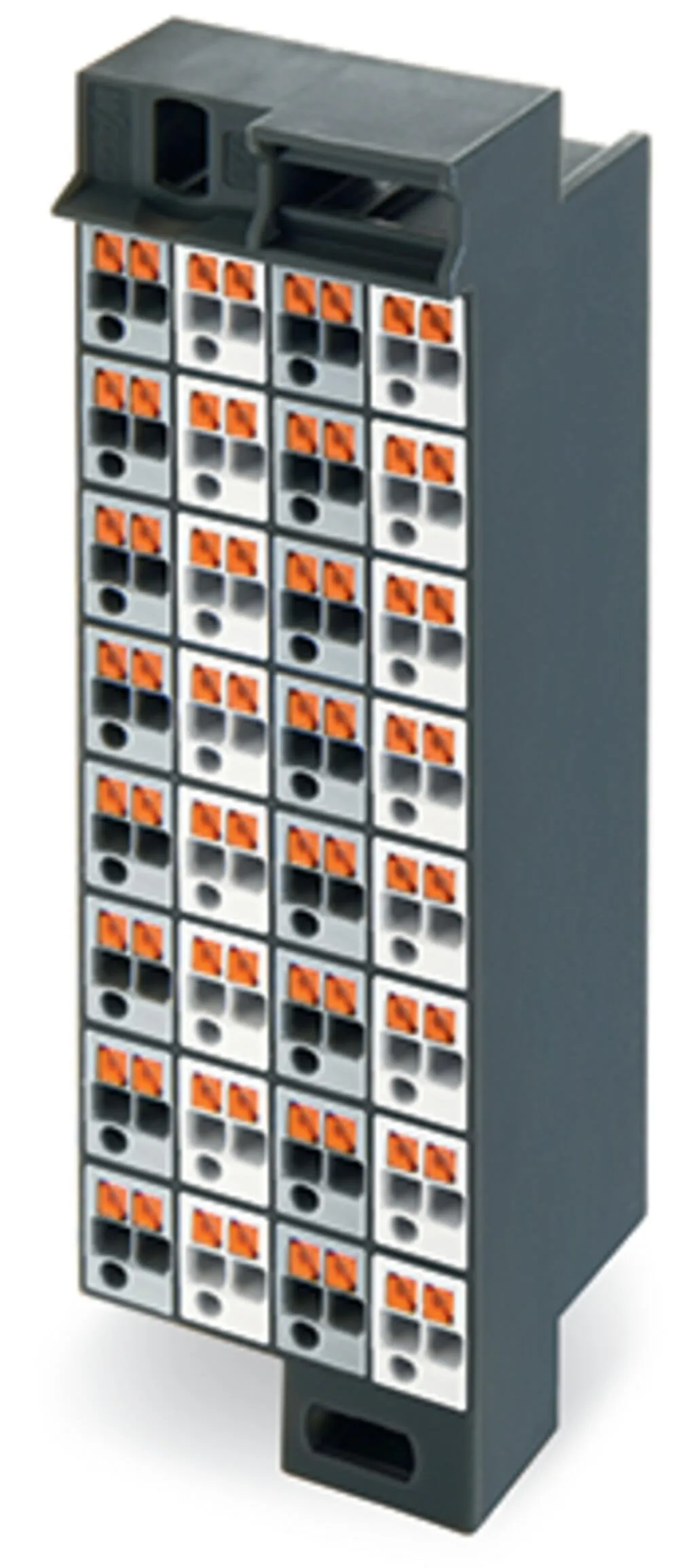

Wago 726-780

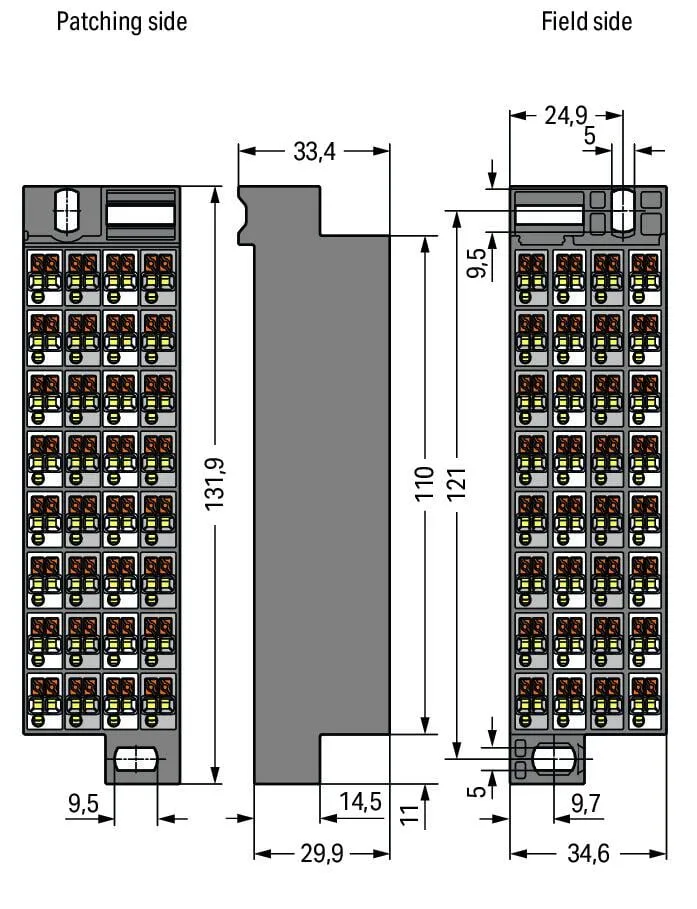

Matrix patchboards, 726 Series, gray/white/dark grayThese matrix patchboards (item number 726-780) simplify electrical installations. Strip lengths must be 10 mm  when connecting conductors to these matrix patchboards. Featuring conductor terminals along with Push-in CAGE CLAMP®, this product is highly versatile. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor’s ferrule is not necessary. The dimensions are (34.6 x 131.9 x 33.4) mm (width x height x depth). Depending on the conductor type, these matrix patchboards are suitable for conductor cross sections ranging from 0.2 mm² to 1.5 mm² on one side and for conductor cross sections from 0.2 mm² to 1.5 mm² on the other side.
