Wago 726-671

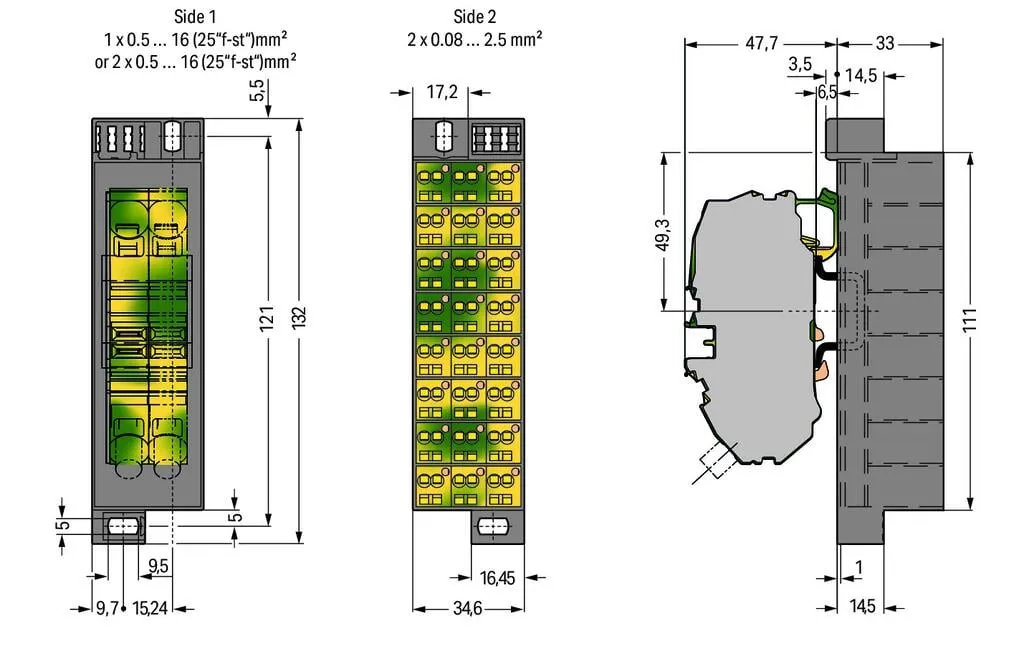

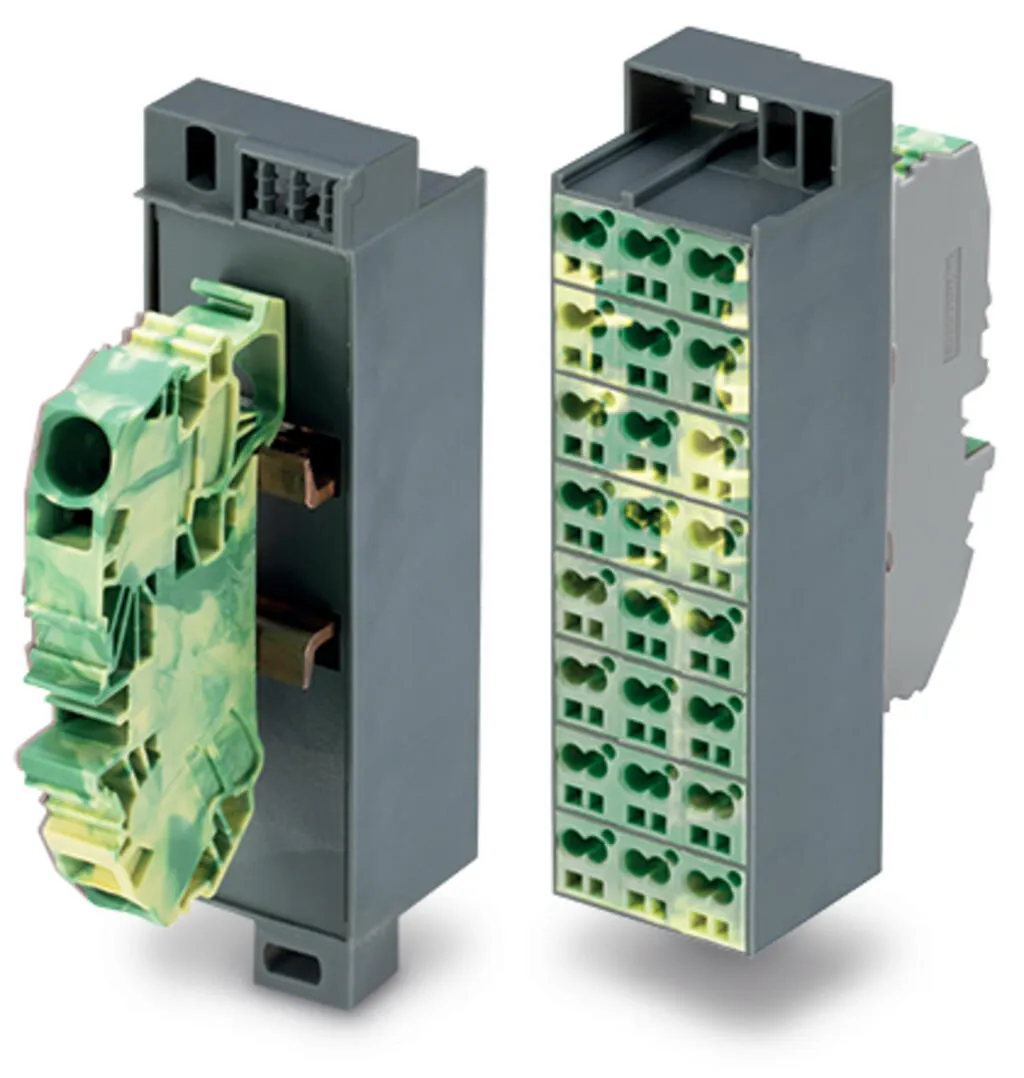

Common potential matrix patchboard, 726 Series, green-yellow/dark grayThis common potential matrix patchboard (item number 726-671) simplifies electrical installations. Ensure that the strip lengths are between 16 and 17 mm  when connecting conductors to this common potential matrix patchboard. This product features conductor terminals and utilizes Push-in CAGE CLAMP® and CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, offering a key advantage: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. Our highly-rated and maintenance-free CAGE CLAMP® connection makes it easy to connect all types of conductors without having to prepare the conductor. For example, you don’t need to crimp ferrules. The item’s dimensions are (34.6 x 132 x 80.7) mm (width x height x depth). Depending on the conductor type, this common potential matrix patchboard is ideal for conductor cross sections ranging from 0.2 mm² to 16 mm² on one side and for conductor cross sections from 0.08 mm² to 2.5 mm² on the other side.
