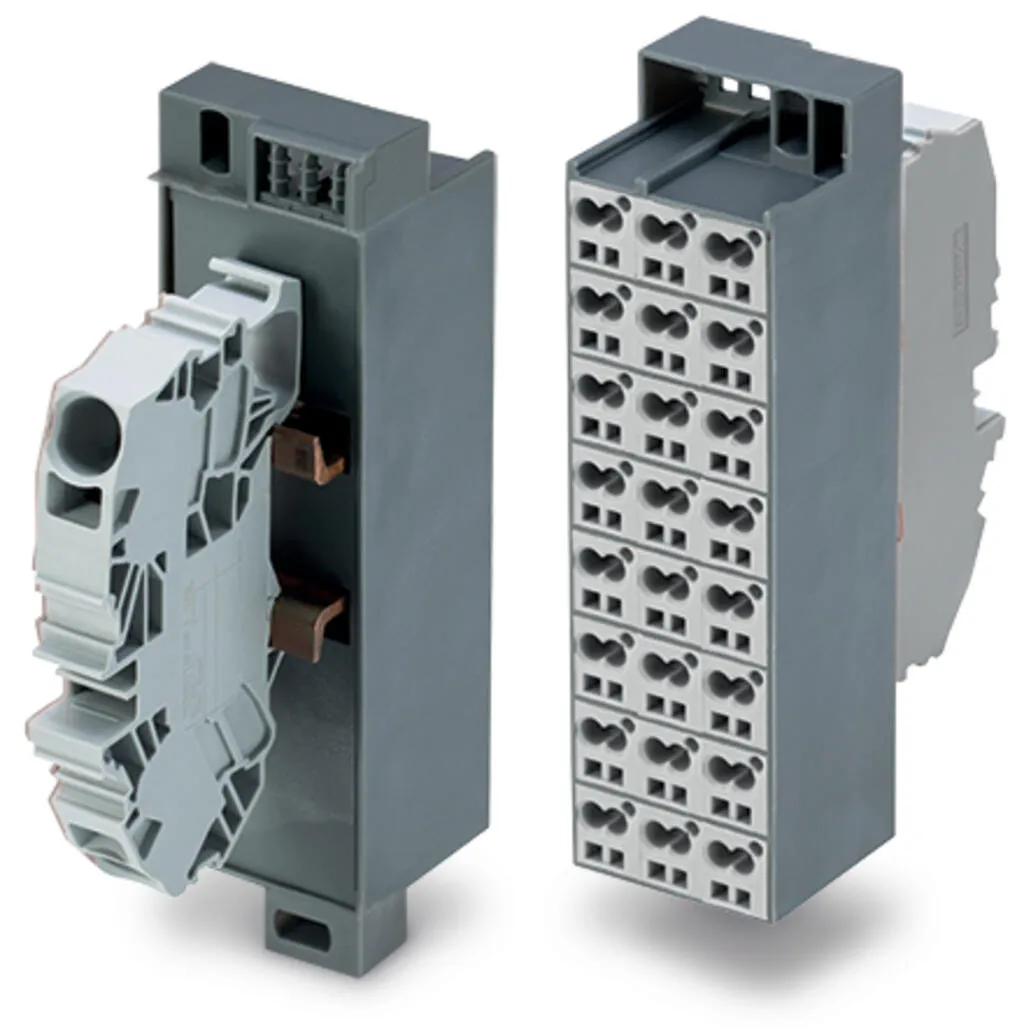

Wago 726-652

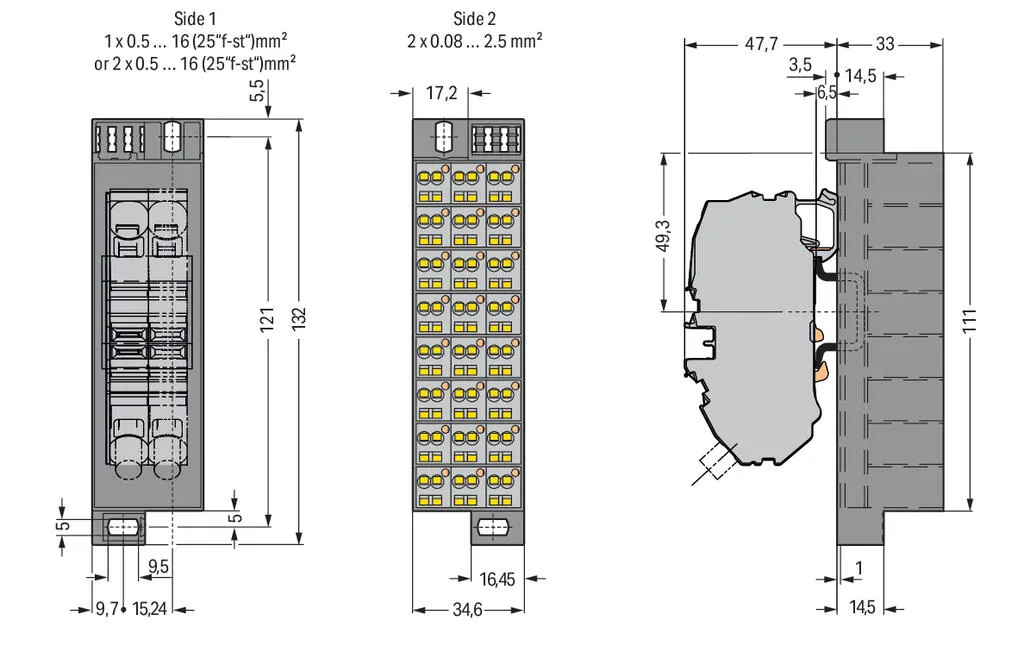

Common potential matrix patchboard, 726 Series, Push-in CAGE CLAMP®This common potential matrix patchboard (item number 726-652) simplifies electrical installations. Ensure that the strip lengths are between 16 and 17 mm  when connecting conductors to this common potential matrix patchboard. This product features conductor terminals and utilizes Push-in CAGE CLAMP® as well as CAGE CLAMP®. Push-in CAGE CLAMP® technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Our reliable and maintenance-free CAGE CLAMP® connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don’t need to crimp ferrules. The item’s dimensions are (34.6 x 132 x 80.7) mm (width x height x depth). This common potential matrix patchboard is suitable for conductor cross sections ranging from 0.2 mm² to 16 mm² on one side and for conductor cross sections ranging from 0.08 mm² to 2.5 mm² on the other side.
