Wago 726-631

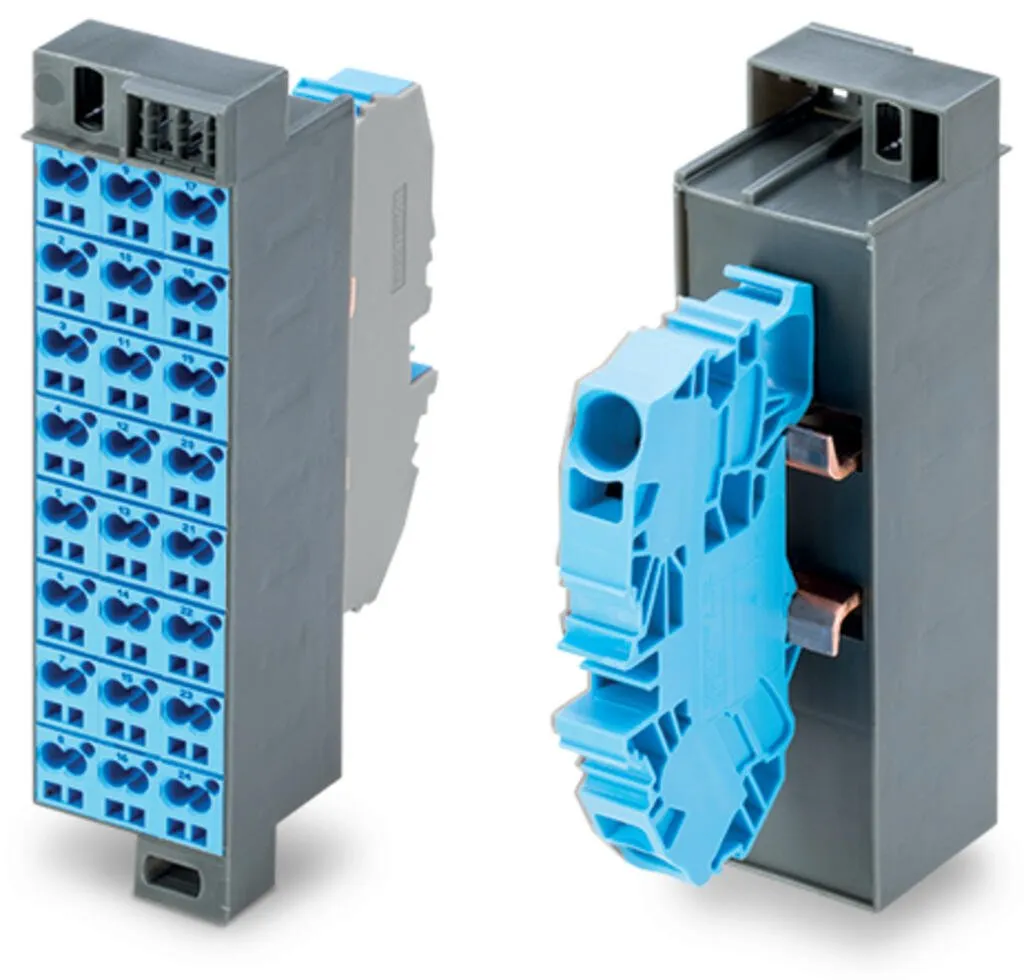

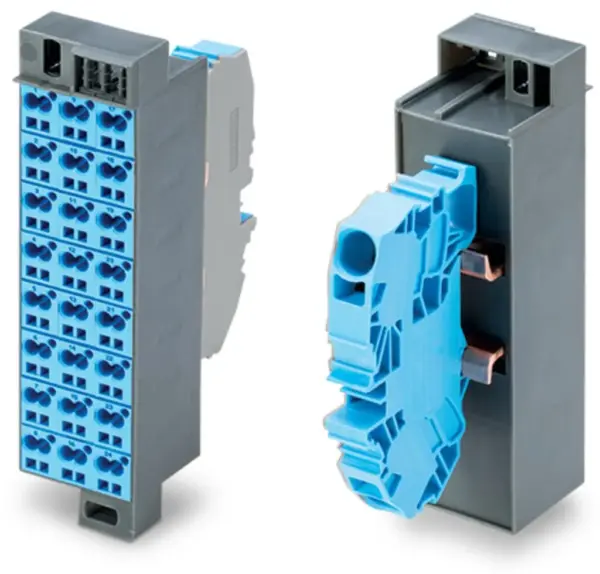

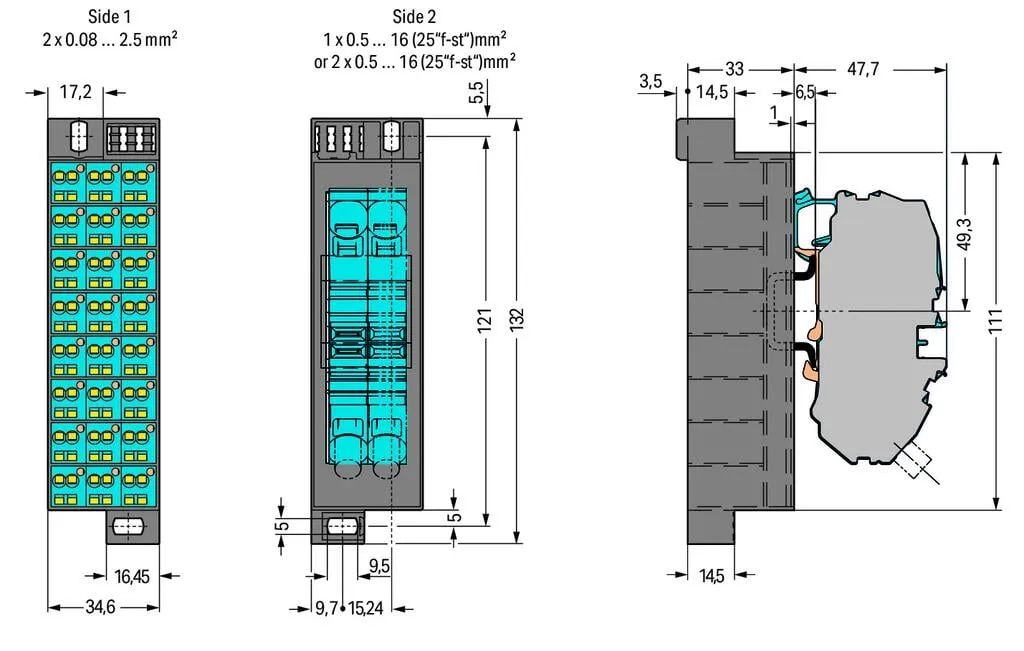

Common potential matrix patchboard, 726 Series, CAGE CLAMP®Enjoy fault-free electrical installations with this common potential matrix patchboard (item number 726-631). Strip lengths must be between 8 and 10 mm  when connecting conductors to this common potential matrix patchboard. This product incorporates conductor terminals and utilizes CAGE CLAMP® and Push-in CAGE CLAMP®. Push-in CAGE CLAMP® technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Our CAGE CLAMP® connection offers a dependable and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. The item’s dimensions are (34.6 x 132 x 84.2) mm (width x height x depth). Depending on the type of conductor, this common potential matrix patchboard is designed for conductor cross sections ranging from 0.08 mm² to 2.5 mm² on one side and for conductor cross sections from 0.2 mm² to 16 mm² on the other side.
