Wago 726-622

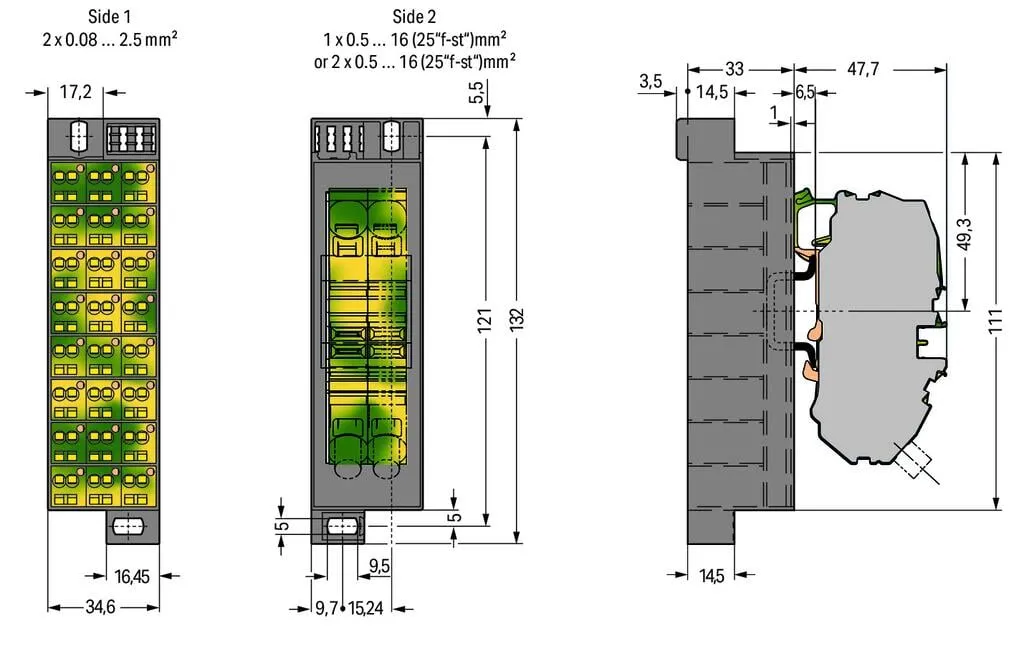

Common potential matrix patchboard, 726 Series, operating toolThis common potential matrix patchboard (item number 726-622) is designed for seamless electrical installations. Conductors can only be connected to this common potential matrix patchboard if their strip length is between 8 and 10 mm . This product incorporates conductor terminals and utilizes CAGE CLAMP® and Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. Our CAGE CLAMP® connection offers a secure and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. The item’s dimensions are (34.6 x 132 x 84.2) mm (width x height x depth). Depending on the type of conductor, this common potential matrix patchboard is designed for conductor cross sections ranging from 0.08 mm² to 2.5 mm² on one side and for conductor cross sections from 0.2 mm² to 16 mm² on the other side.
