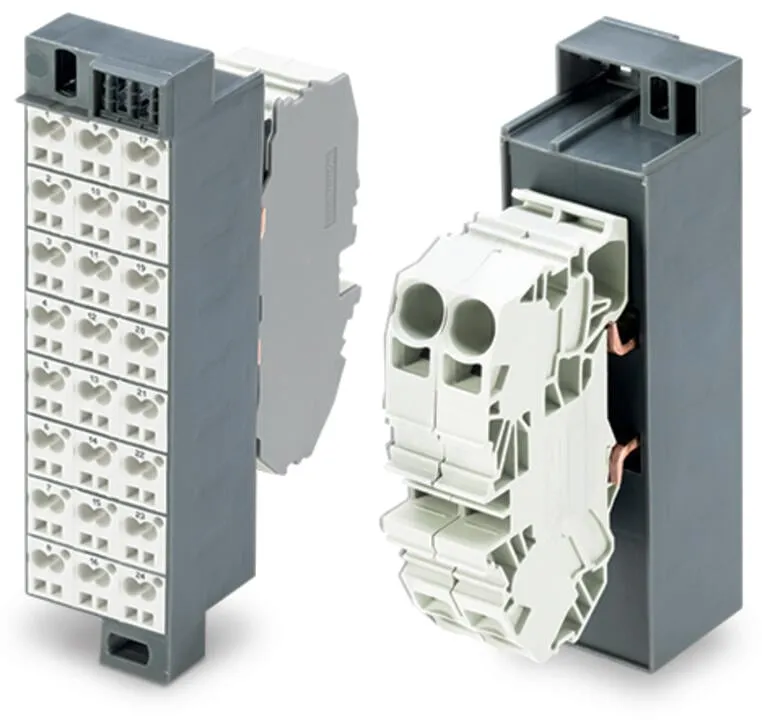

Wago 726-612

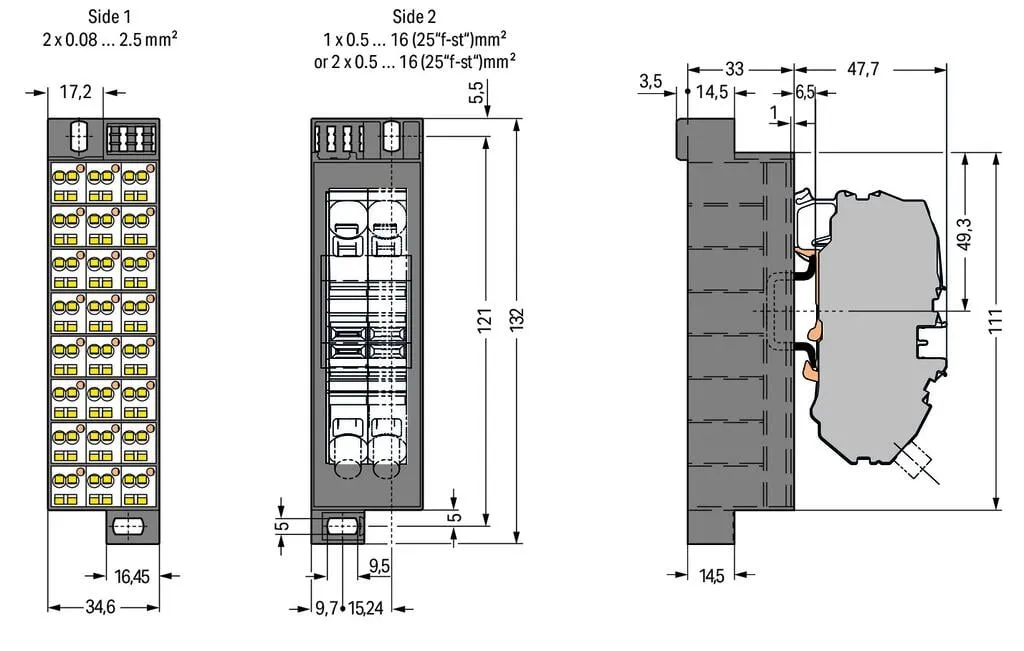

Common potential matrix patchboard, 726 Series, CAGE CLAMP®This common potential matrix patchboard (item number 726-612) simplifies electrical installations. Strip lengths must be between 8 and 10 mm  when connecting conductors to this common potential matrix patchboard. This product features conductor terminals and utilizes CAGE CLAMP® as well as Push-in CAGE CLAMP®. Push-in CAGE CLAMP® technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Our renowned universal connection known as CAGE CLAMP® leads the way when it comes to connection technology and electrical interconnections. Dimensions: (34.6 x 132 x 84.2) mm (width x height x depth). This common potential matrix patchboard is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm² on one side and for conductor cross sections ranging from 0.2 mm² to 16 mm² on the other side.
