Wago 706-3140/300-200
System cable; for Schneider Modicon Quantum; 2 x 16 digital inputs or outputs for higher voltages; Length: 2 m; Conductor cross-section: 0.34 mm² 706-3140/300-200
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
System cable; for Schneider Modicon Quantum; 2 x 16 digital inputs or outputs for higher voltages; Length: 2 m; Conductor cross-section: 0.34 mm² 706-3140/300-200
Specification
Notes
| Note | If less than 3 channels are used simultaneously, the maximum current per conductor is 2 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L. If more than 3 channels are used simultaneously, the maximum current per conductor is 0.75 A and up to 5 A (30°C ambient temperature) or 3.5 A (50°C ambient temperature) at pins N/L. |
|---|
Electrical data
| Inputs/outputs | 2 x 16 digital inputs or outputs; for higher voltages |
|---|---|
| Operating voltage | ≤ 250 VAC/VDC |
| Current per wire (max.) | 0.75 A |
Compatibility - Schneider
| Schneider Modicon Quantum | 140 DAI 340 00, 140 DAI 353 00, 140 DAI 440 00, 140 DAI 453 00, 140 DAI 540 00, 140 DAI 543 00, 140 DAI 553 00, 140 DAI 740 00, 140 DAI 753 00, 140 DAO 840 00, 140 DAO 840 10, 140 DRA 840 00 |
|---|
Connection data
| Cable type | LiYY |
|---|---|

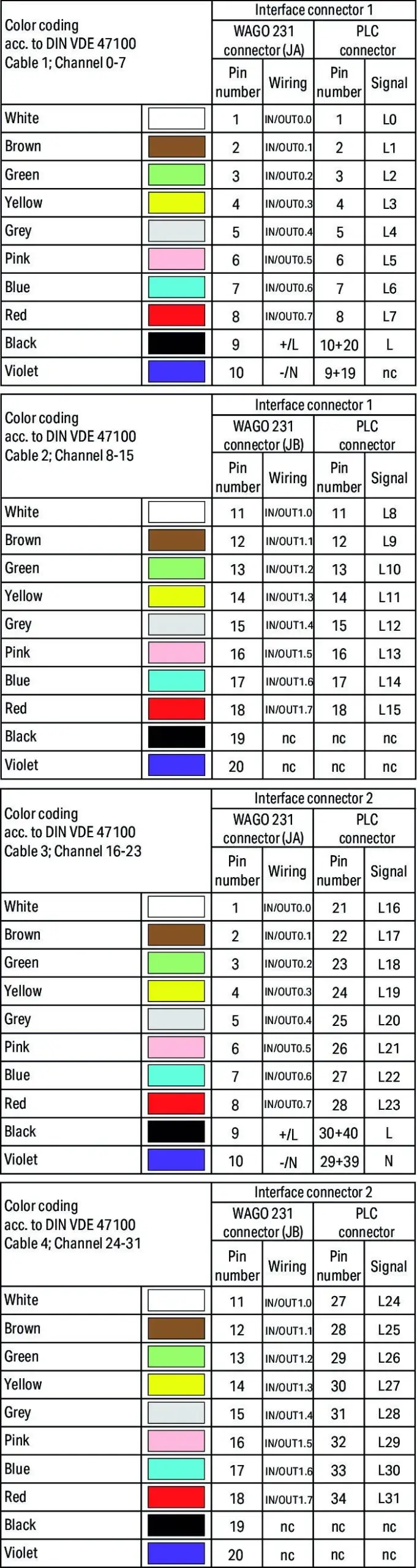

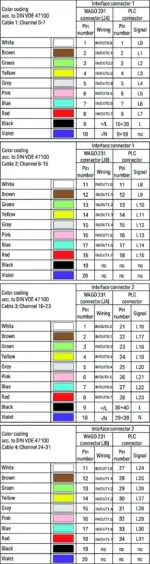

| Color code | per DIN VDE 47100 |
Connection data - Connection 1

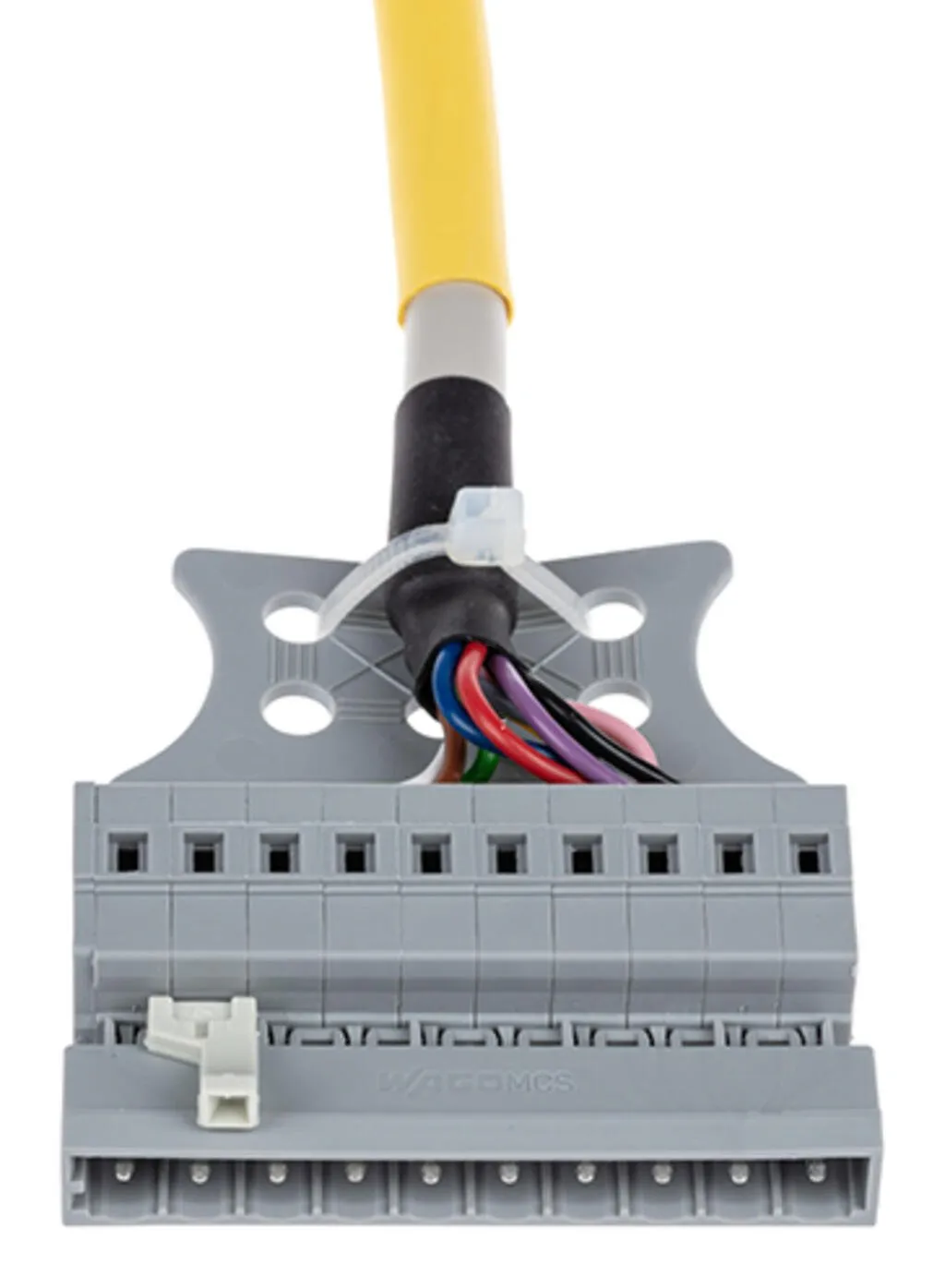

| Pluggable connector | WAGO 231 Series |
|---|---|
| Pole number 1 | 10 |
| Connection type | System |
| Wire cross-section | 0.34 mm² |
Connection data - Connection 2
| Connector | WAGO 231 Series |
|---|---|
| Pole number | 10 |
| Connection type | System |
| Wire cross-section | 0.34 mm² |
Connection data - Connection 3
| Connector | WAGO 231 Series |
|---|---|
| Pole number | 10 |
| Connection type | System |
Connection data - Connection 4
| Connector | WAGO 231 Series |
|---|---|
| Pole number | 10 |
| Connection type | System |
Connection data - Connection 5

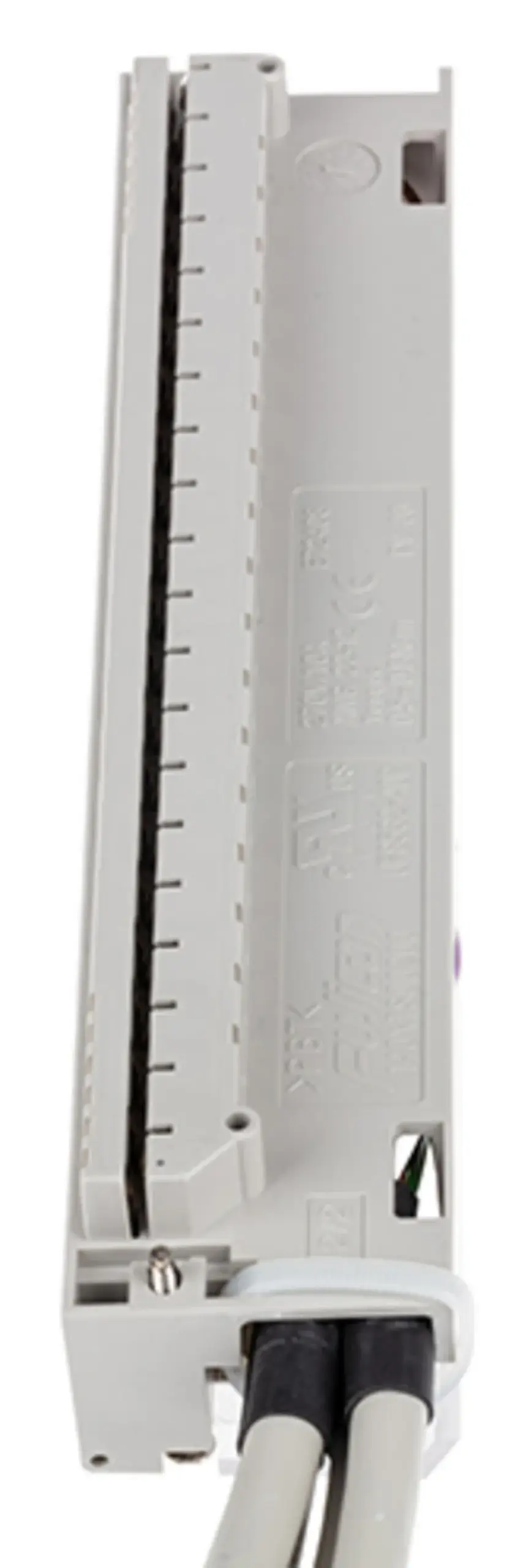

| Connector 5 | Schneider 140XTS00200 |
|---|---|
| Pole number | 40 |
| Connection type | System |
Physical data
| Cable length | 2 m |
|---|
Material data
| Weight | 1408 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -20 … +50 °C |
|---|
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | bag |
| Country of origin | FR |
| GTIN | 4055143980241 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121629 |
|---|---|
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
