Wago 289-128/006-000

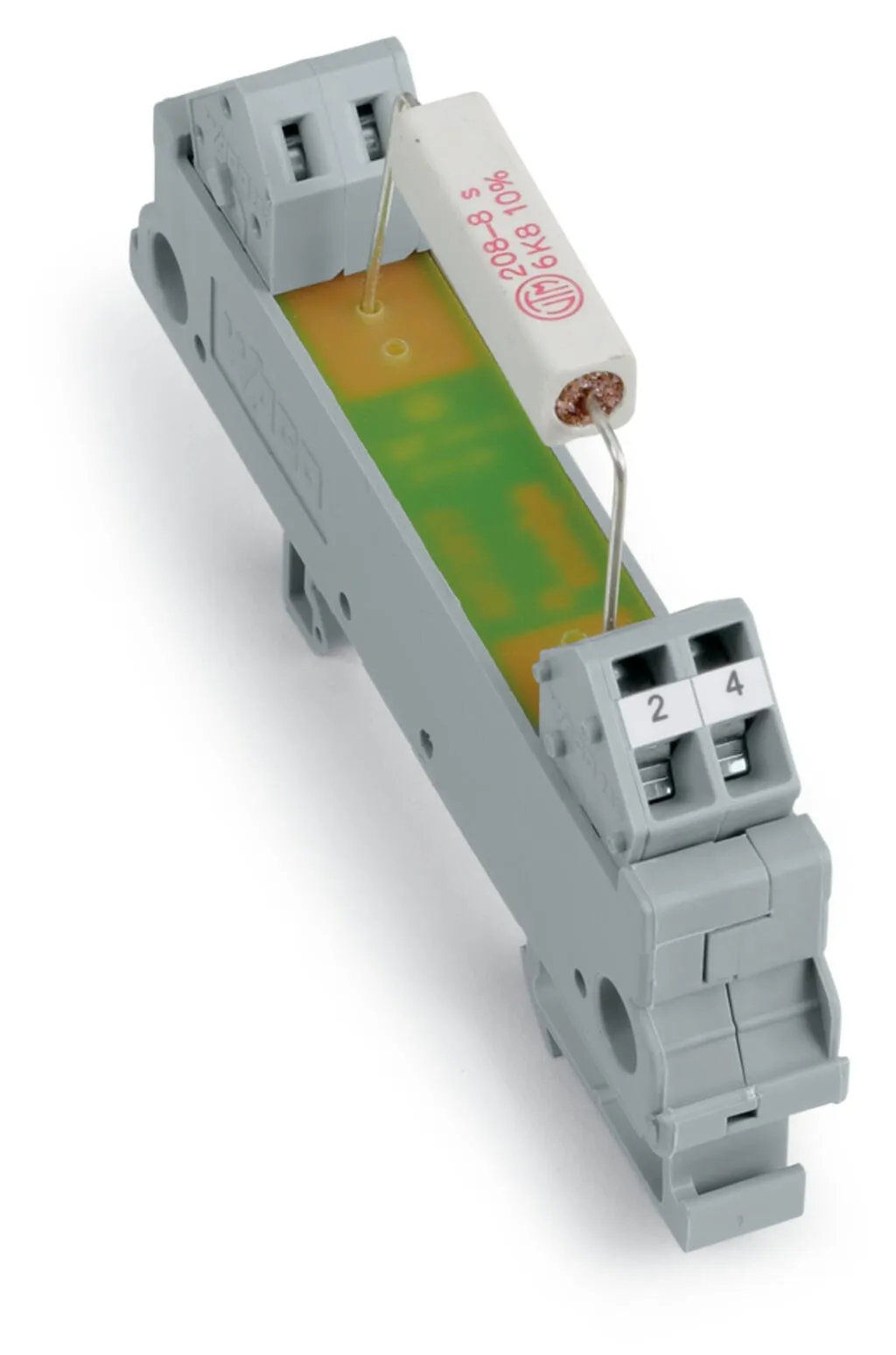

Component module with resistor; with 1 pcs; Resistor 270R; 5 Watt 289-128/006-000
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Component module with resistor; with 1 pcs; Resistor 270R; 5 Watt 289-128/006-000
Specification
Notes
| Safety Information | Depending on operating conditions, the components' temperature may exceed the limit temperature for accessible parts. |
|---|---|
| Safety information 2 | Notice! Accessible live parts! Protection against accidental contact must be provided by the system installer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be followed for each specific application. |
| Note | Other resistors are available upon request! |
Electrical data
| Resistor | 270R |
|---|---|
| Tolerance | ±10 % |
| Temperature coefficient | 50 ppm (20 °C) |
| Component rated dissipation (P70) | 5 W |
Safety and protection
| Protection type | IP00 |
|---|
Connection data
| Note (conductor cross-section) | 12 AWG: THHN, THWN |
|---|
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| WAGO connector | WAGO 236 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 13 mm / 0.512 inches |
|---|---|
| Height | 85 mm / 3.346 inches |
| Depth from upper-edge of DIN-rail | 34 mm / 1.339 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Housing design | Mounting carrier |
Material data
| Fire load | 0.305 MJ |
|---|---|
| Weight | 19.2 g |
Environmental requirements

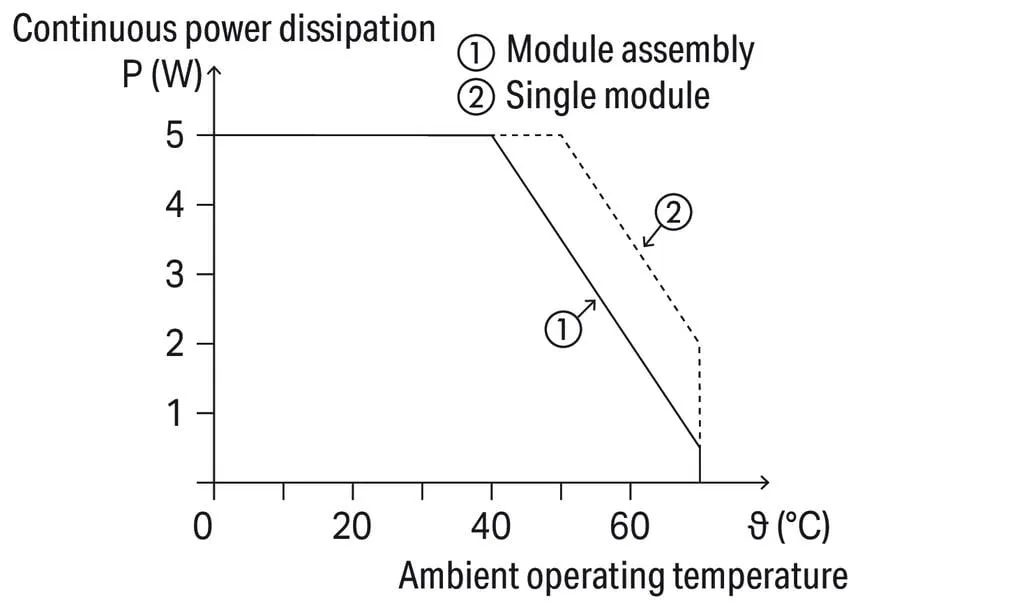

| Ambient temperature (operation) | -20 … +70 °C (derating must be observed) |
|---|---|
| Ambient temperature (storage) | -40 … +70 °C |
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 18 (1) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821253785 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 32121705 |
|---|---|
| eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-49 |
| ETIM 9.0 | EC000903 |
| ETIM 10.0 | EC000903 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
