Wago 289-121

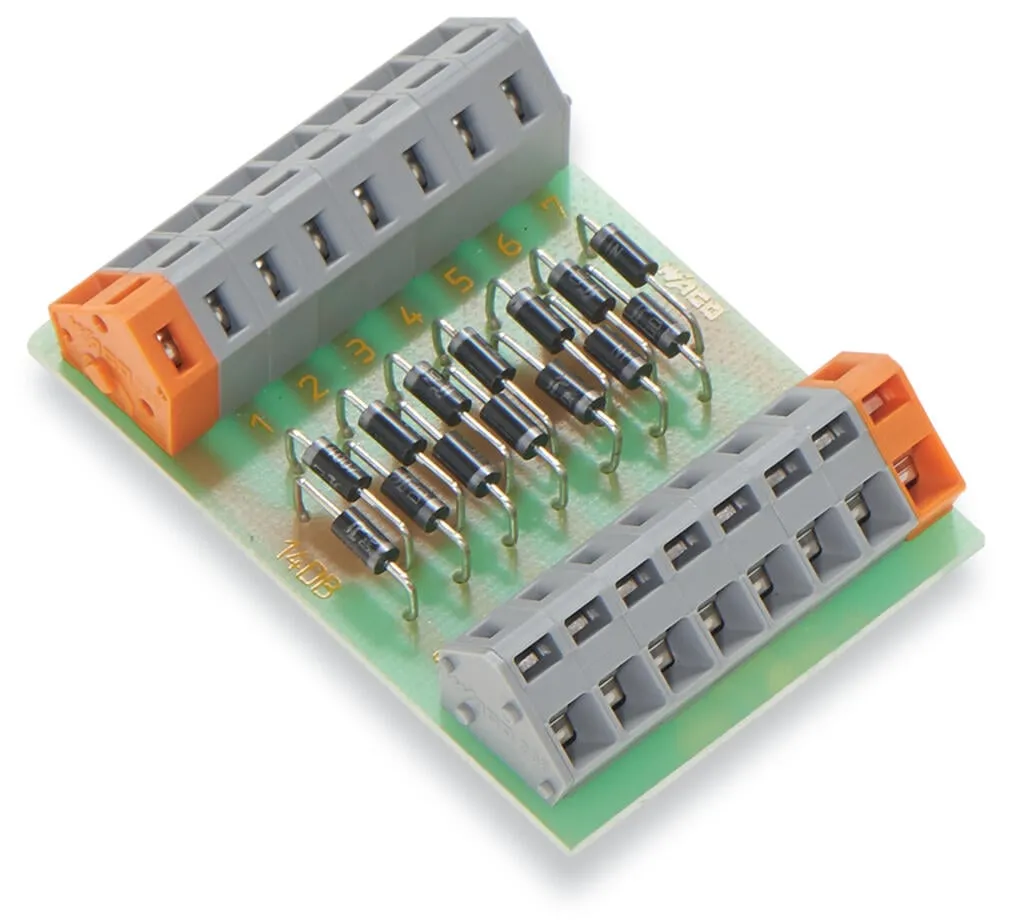

Component module with diode; with 14 pcs; Diode 1N4007; with common anode; 2,50 mm² 289-121
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Component module with diode; with 14 pcs; Diode 1N4007; with common anode; 2,50 mm² 289-121
Specification
Notes
| Safety Information | Notice! Accessible live parts! Protection against accidental contact must be provided by the system installer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be followed for each specific application. |
|---|---|
| Note | Max. permissible forward current per the manufacturer’s data sheet. With all diodes loaded, the continuous current must be reduced to 0.45 A. |
Electrical data
| Operating voltage | ≤ 250 VAC/VDC |
|---|---|
| Peak reverse voltage | 1000 V |

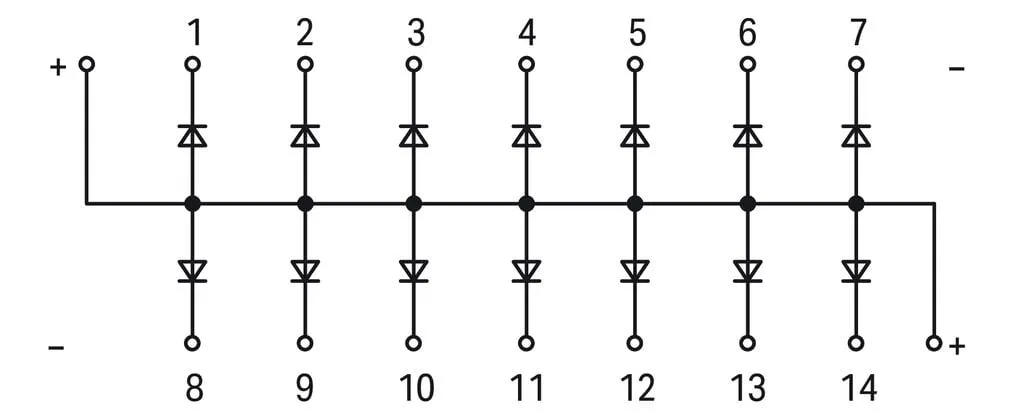

| Type of diode | 1N4007; with common anode |
| Number/type of diode/LED | 14 diodes |
| Forward voltage per diode | 1.1 V |
| Forward current per diode (resistive) | 1 A |
| Leakage current | 50 µA |
Safety and protection
| Pollution degree | 2 |
|---|---|
| Protection type | IP00 |
Connection data
| Note (conductor cross-section) | 12 AWG: THHN, THWN |
|---|
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| WAGO connector | WAGO 236 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 42.5 mm / 1.673 inches |
|---|---|
| Height from the surface | 31.5 mm / 1.24 inches |
| Depth | 62.5 mm / 2.461 inches |
Mechanical data
| Mounting type | Mounting on DIN-rail via DIN-rail adapter |
|---|---|
| Housing design | PCB |
Material data
| Weight | 25.3 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -25 … +40 °C |
|---|---|
| Ambient temperature (storage) | -40 … +70 °C |
| Relative humidity | ≤ 85 % (non-condensing) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Standards/specifications | EN 61010-2-201 |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 50 (1) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454193027 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121629 |
|---|---|
| eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-49 |
| ETIM 9.0 | EC000903 |
| ETIM 10.0 | EC000903 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | bb8a0b0e-3964-4120-8e1c-27204a68aba9 |
| SCIP notification number (Belgium) | d29bd272-bc7c-4a8c-a541-1c0b42b14821 |
| SCIP notification number (Bulgaria) | 24f739dd-8317-45a7-8980-1510efe55520 |
| SCIP notification number (Czech Republic) | de65635f-189e-4b60-b7b1-48b37fcbce93 |
| SCIP notification number (Denmark) | 0fc6bb6e-77af-4b34-8aea-9e6aa426b88b |
| SCIP notification number (Finland) | 1c32d05a-fa8a-47f3-9632-b7411ac1844c |
| SCIP notification number (France) | 3eb75477-7c50-44a0-9f9e-1eb744efccbc |
| SCIP notification number (Germany) | 2b15fbcb-2491-4083-af0a-2e06d361f922 |
| SCIP notification number (Hungary) | f6e7d9c9-e05b-4f92-97a3-0c8a9084acdb |
| SCIP notification number (Italy) | afc9c10b-6fd0-4112-9ff1-36402180ea5e |
| SCIP notification number (Netherlands) | e42ec1b7-00e6-4fcf-b0f1-63538a9fa38b |
| SCIP notification number (Poland) | d2f4ac0c-5b1c-402a-8d17-45565173e323 |
| SCIP notification number (Romania) | 2e4ea159-22f6-4859-80a8-cfcfb994f213 |
| SCIP notification number (Sweden) | f8922ba3-ecb8-48bc-b661-796ed0b482ad |
