Wago 289-113

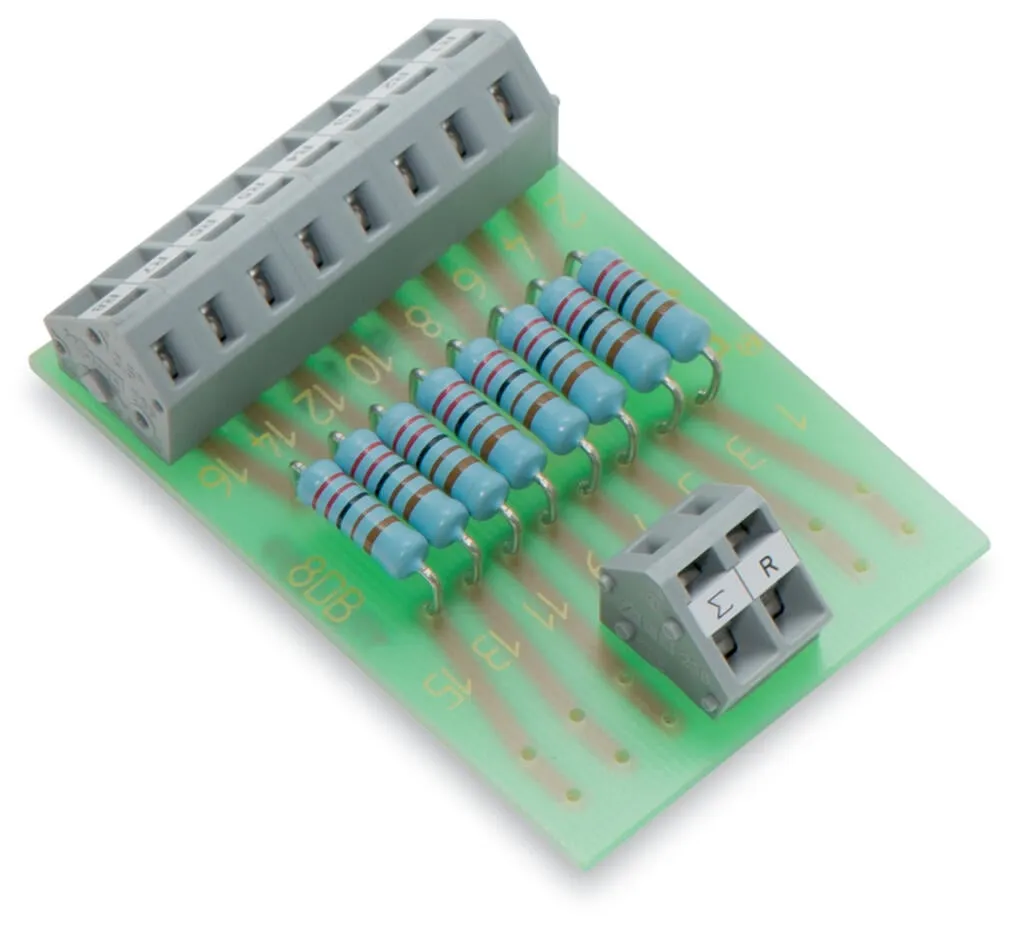

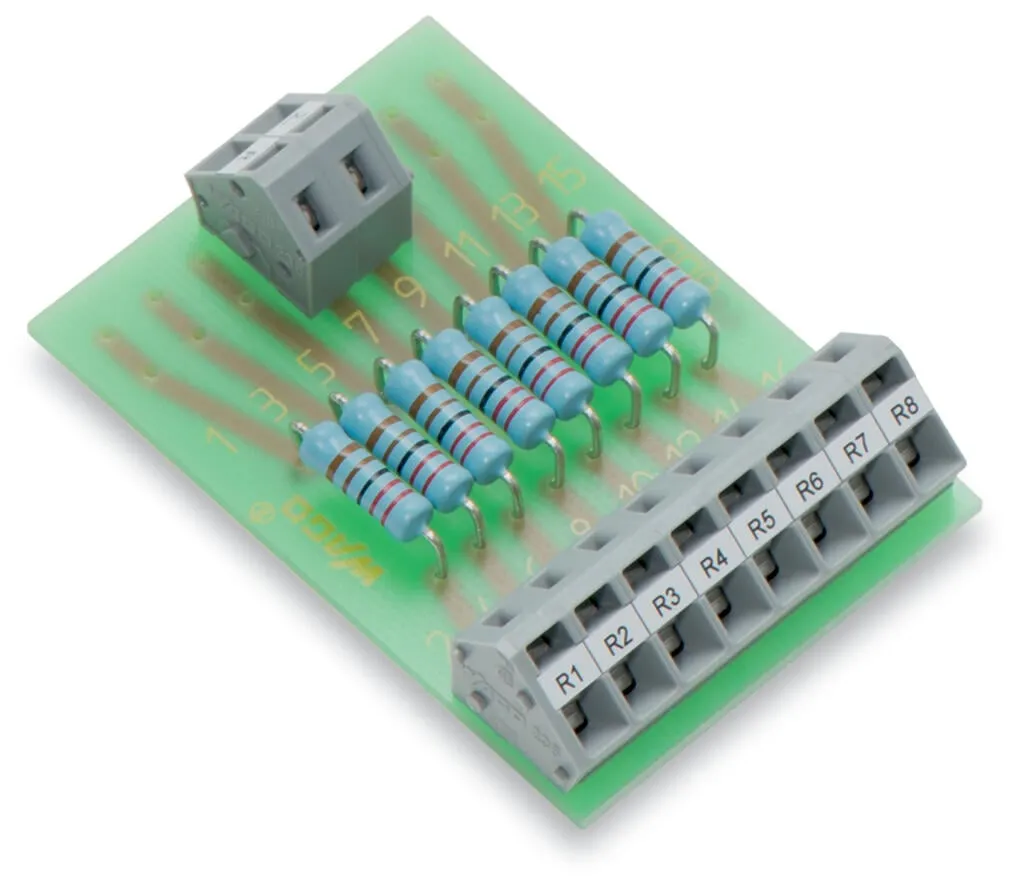

Component module with resistor; with 8 pcs; Resistor 2K2; 1 Watt; 2,50 mm² 289-113
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Component module with resistor; with 8 pcs; Resistor 2K2; 1 Watt; 2,50 mm² 289-113
Specification
Notes
| Safety Information | Notice! Accessible live parts! Protection against accidental contact must be provided by the system installer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be followed for each specific application. |
|---|---|
| Note | Max. admissible capacity of a single resistor – with all resistors loaded, the max. admissible power dissipation must be reduced., Other resistors are available upon request! |
Electrical data
| Operating voltage | ≤ 40 VAC/VDC |
|---|---|
| Resistor | 2K2 |
| Tolerance | ±1 % |
| Resistor type/design | DIN 0414 |
| Temperature coefficient | 50 ppm (20 °C) |
| Component rated dissipation (P70) | 1 W |
Safety and protection
| Rated voltage | 250 V |
|---|---|
| Rated impulse withstand voltage | 4 kV |
| Protection type | IP00 |
Connection data
| Note (conductor cross-section) | 12 AWG: THHN, THWN |
|---|
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| WAGO connector | WAGO 236 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 42.5 mm / 1.673 inches |
|---|---|
| Height from the surface | 32 mm / 1.26 inches |
| Depth | 62.5 mm / 2.461 inches |
Mechanical data
| Mounting type | Mounting on DIN-rail via DIN-rail adapter |
|---|---|
| Housing design | PCB |
Material data
| Weight | 18.9 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -25 … +40 °C |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 50 (1) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454192785 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 32121705 |
|---|---|
| eCl@ss 10.0 | 27-39-03-13 |
| eCl@ss 9.0 | 27-39-03-13 |
| ETIM 9.0 | EC000903 |
| ETIM 10.0 | EC000903 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
