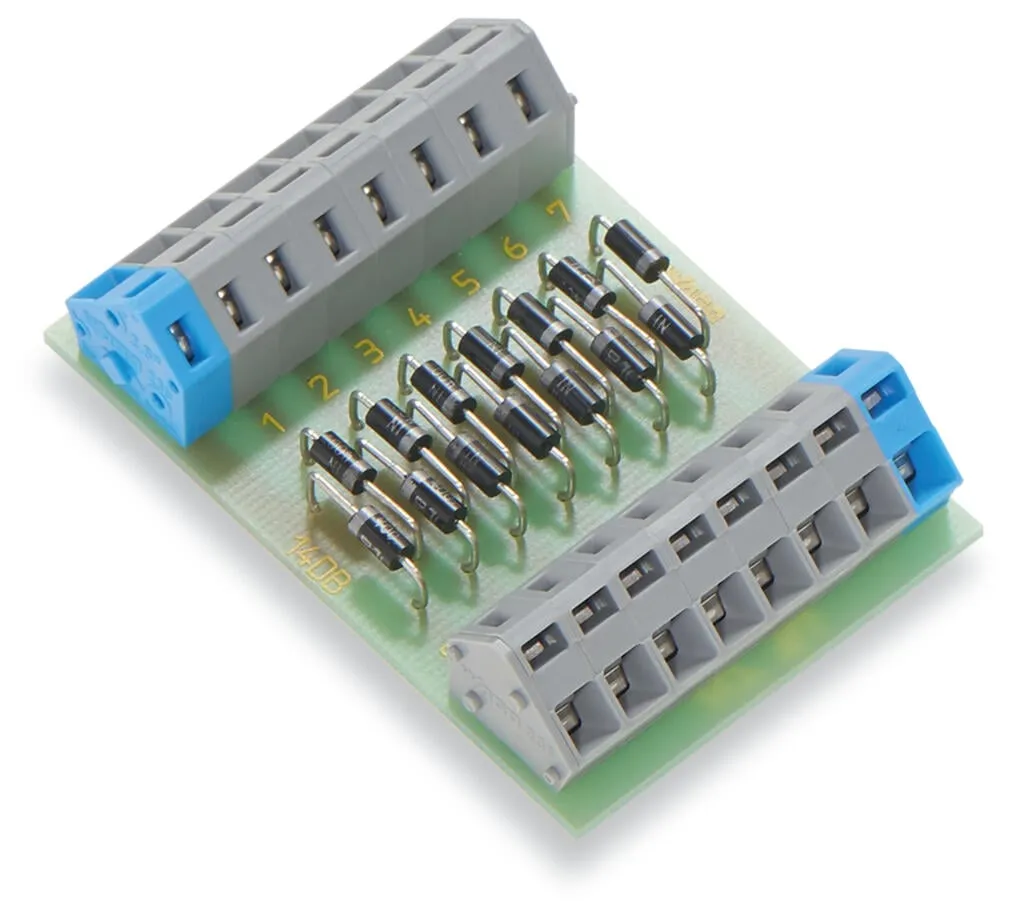

Wago 289-111
Component module with diode; with 14 pcs; Diode 1N4007; with common cathode; 2,50 mm² 289-111
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Component module with diode; with 14 pcs; Diode 1N4007; with common cathode; 2,50 mm² 289-111
Specification
Notes
| Safety Information | Notice! Accessible live parts! Protection against accidental contact must be provided by the system installer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be followed for each specific application. |
|---|---|
| Note | Max. permissible forward current per the manufacturer’s data sheet. With all diodes loaded, the continuous current must be reduced to 0.45 A. |
Electrical data
| Operating voltage | ≤ 250 VAC/VDC |
|---|---|
| Peak reverse voltage | 1000 V |

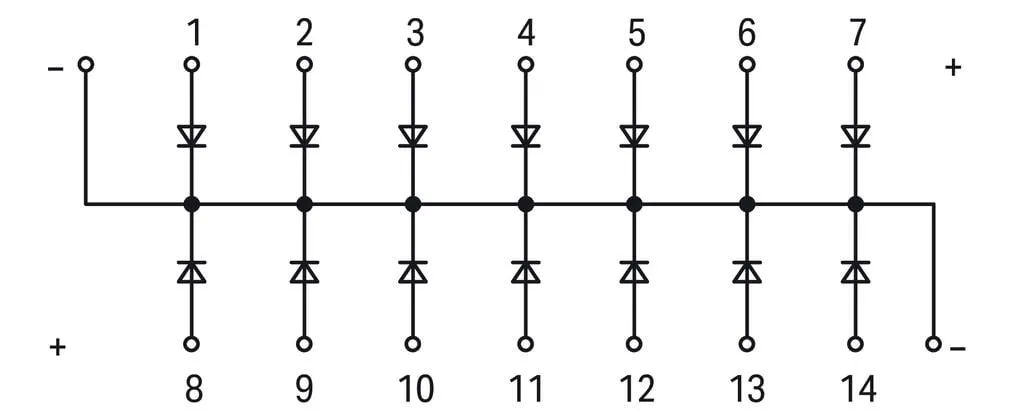

| Type of diode | 1N4007; with common cathode |
| Number/type of diode/LED | 14 diodes |
| Rectified current for each diode (resistive) | 1 A |
| Forward voltage per diode | 1.1 V |
| Forward current per diode (resistive) | 1 A |
| Leakage current | 50 µA |
Safety and protection
| Rated voltage | 250 V |
|---|---|
| Rated impulse withstand voltage | 4 kV |
| Pollution degree | 2 |
| Protection type | IP00 |
Connection data
| Note (conductor cross-section) | 12 AWG: THHN, THWN |
|---|
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| WAGO connector | WAGO 236 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 42.5 mm / 1.673 inches |
|---|---|
| Height from the surface | 32 mm / 1.26 inches |
| Depth | 62.5 mm / 2.461 inches |
Mechanical data
| Mounting type | Mounting on DIN-rail via DIN-rail adapter |
|---|---|
| Housing design | PCB |
Material data
| Weight | 25.6 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -25 … +40 °C |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 50 (1) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454192761 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121629 |
|---|---|
| eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-49 |
| ETIM 9.0 | EC000903 |
| ETIM 10.0 | EC000903 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | 8d3ff2d5-b591-4e51-9d39-3424bd391e82 |
| SCIP notification number (Belgium) | 96ca9689-b508-42b9-ab5e-d3f67dfc8da6 |
| SCIP notification number (Bulgaria) | 0f8b4f87-cf19-4f7b-aee3-fcc1dbf31127 |
| SCIP notification number (Czech Republic) | 4b291d39-5af9-4a09-9048-2a8203e2a22f |
| SCIP notification number (Denmark) | 8d9f09f2-bdd5-422e-96b4-ba0912a74ea7 |
| SCIP notification number (Finland) | e7fa87ba-32e0-4249-ab19-73bc2a29ff9c |
| SCIP notification number (France) | b9c1b78a-9ae4-4e56-a5fa-dce4db66dc0f |
| SCIP notification number (Germany) | 7f7d7235-33e7-4211-ac4d-e29c8b42f806 |
| SCIP notification number (Hungary) | 577067a2-858d-489f-b5a0-dbc75d281d4d |
| SCIP notification number (Italy) | 10e53c66-3123-4983-9c39-b29252731b82 |
| SCIP notification number (Netherlands) | 031570be-fff6-494d-80c6-b4f25ffc2768 |
| SCIP notification number (Poland) | d13d8daa-9727-47b7-ab67-d8297a04c70f |
| SCIP notification number (Romania) | 2f93e3af-a5ce-4c3c-9825-14bd894cea3b |
| SCIP notification number (Sweden) | 00b21fbc-11e1-401a-b0de-79d58c6b567d |
