Wago 289-103

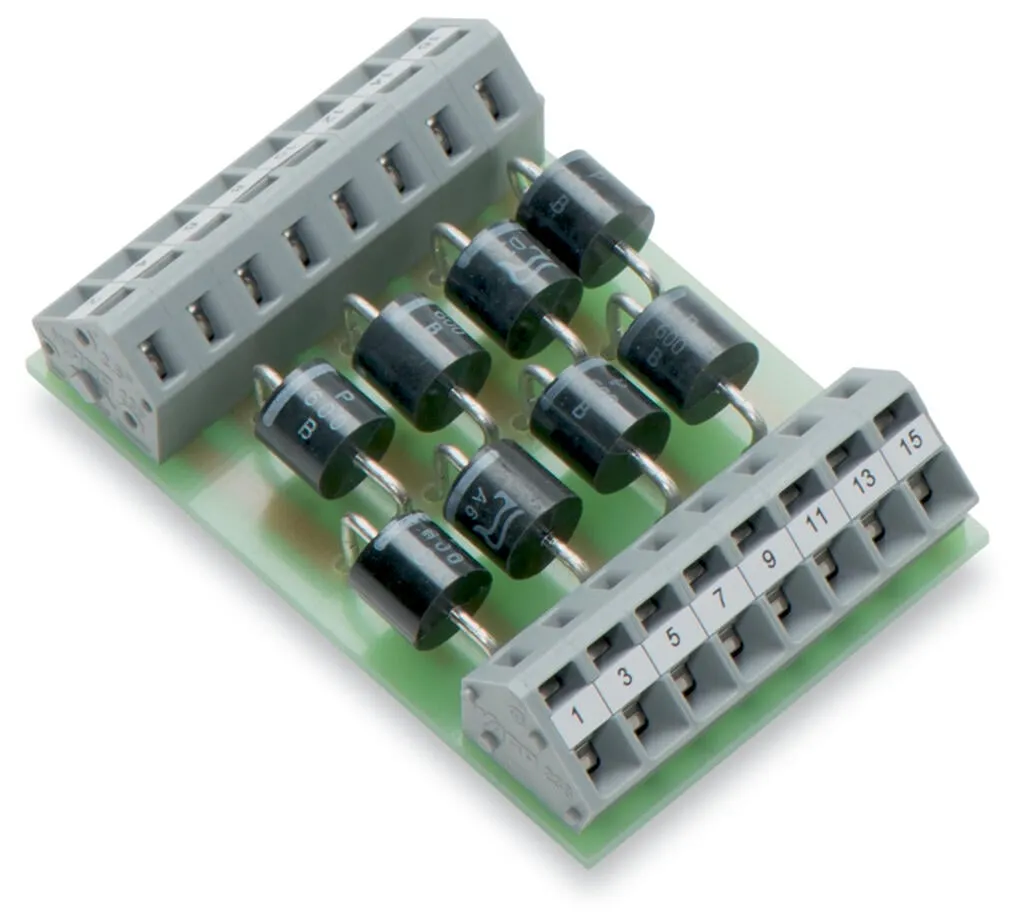

Component module with diode; with 8 pcs; Diode P600B; 2,50 mm² 289-103
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Component module with diode; with 8 pcs; Diode P600B; 2,50 mm² 289-103
Specification
Notes
| Safety Information | Notice! Accessible live parts! Protection against accidental contact must be provided by the system installer, e.g., using a WAGO 709 Series Cover (see “Accessories”) or a similar cover. The installation guidelines must be followed for each specific application. |
|---|---|
| Note | Max. permissible forward current per the manufacturer’s data sheet. With all diodes loaded, the continuous current must be reduced to 0.45 A. |
Electrical data
| Operating voltage | ≤ 100 VAC/VDC |
|---|---|
| Peak reverse voltage | 100 V |
| Type of diode | P600B |
| Number/type of diode/LED | 8 diodes |
| Forward voltage per diode | 1 V |
| Forward current per diode (resistive) | 6 A |
| Leakage current | 5 µA |
Safety and protection
| Rated voltage | 150 V |
|---|---|
| Pollution degree | 2 |
| Overvoltage category | II |
| Dielectric strength (channel/channel) (AC, 1 min.) | 2.7 kV<sub>eff</sub> |
| Protection type | IP00 |
| Insulation type | Reinforced insulation (safe isolation) |
Connection data
| Note (conductor cross-section) | 12 AWG: THHN, THWN |
|---|
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| WAGO connector | WAGO 236 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
Physical data
| Width | 42.5 mm / 1.673 inches |
|---|---|
| Height from the surface | 32 mm / 1.26 inches |
| Depth | 62.5 mm / 2.461 inches |
Mechanical data
| Mounting type | Mounting on DIN-rail via DIN-rail adapter |
|---|---|
| Housing design | PCB |
Material data
| Weight | 19 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -25 … +40 °C |
|---|---|
| Ambient temperature (storage) | -40 … +70 °C |
| Relative humidity | ≤ 95 % (non-condensing) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Standards/specifications | EN 61010-2-201 |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 50 (1) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454569372 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121629 |
|---|---|
| eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-49 |
| ETIM 9.0 | EC000903 |
| ETIM 10.0 | EC000903 |
| ECCN | NO US CLASSIFICATION |
