Wago 285-199
High-current terminal block, 285 Series, t-wrench und 8 mmOur three-phase set (item number 285-199) is designed for seamless electrical installations. Strip lengths must be 35 mm when connecting cond…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

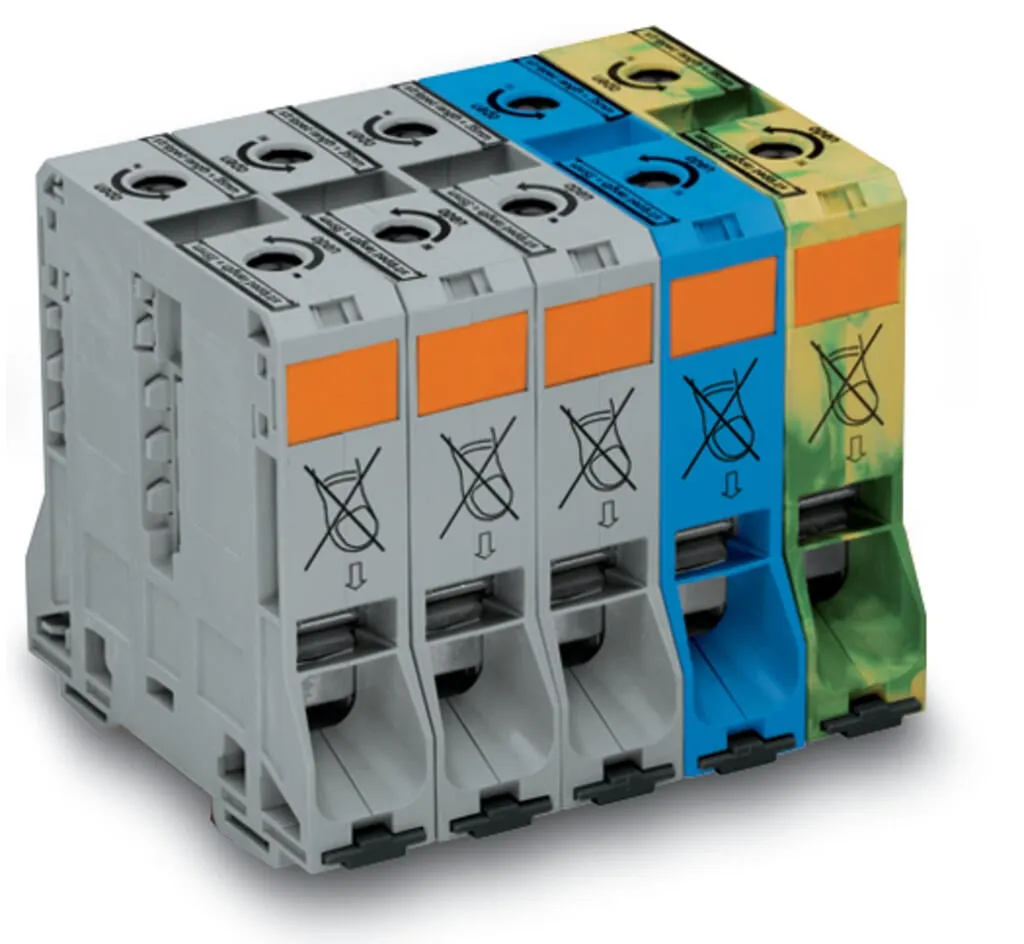

High-current terminal block, 285 Series, t-wrench und 8 mmOur three-phase set (item number 285-199) is designed for seamless electrical installations. Strip lengths must be 35 mm when connecting conductors to this three-phase set. This product features conductor terminals and utilizes POWER CAGE CLAMP. The POWER CAGE CLAMP is a powerful, maintenance-free, and universal way to connect large conductor cross-sections. You can also use it with all conductor types. The clamping point can be locked open and you do not need to use a torque wrench or prepare the conductor in any way, e.g., by crimping the ferrule. Depending on the type of conductor, this three-phase set is designed for conductor cross sections ranging from 25 mm² to 95 mm².
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-1 |
|---|---|
| Nominal voltage (III/3) | 1000 V |
| Rated impulse withstand voltage (III / 3) | 12 kV |
| Rated current | 232 A |
| Ratings per | IEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 1000 V |
| Rated impulse withstand voltage | 12 kV |
| Rated current | 232 A |
Electrical data - Ratings per UL
| Approvals per | UL 1059 |
|---|---|
| Rated voltage UL (Use Group B) | 600 V |
| Rated current UL (Use Group B) | 200 A |
| Rated voltage UL (Use Group C) | 600 V |
| Rated current UL (Use Group C) | 200 A |
| Approvals per | UL 1059 / UL 1059 / UL 1059 |
| Use group | B / C / D |
| Rated voltage | 600 V / 600 V |
| Rated current | 200 A / 200 A |
Electrical data - Ratings per CSA
| Approvals per | CSA 22.2 No 158 |
|---|---|
| Rated current CSA (Use Group B) | 210 A |
| Rated voltage CSA (Use Group C) | 1000 V |
| Rated current CSA (Use Group D) | 210 A |
| Approvals per | CSA 22.2 No 158 / CSA 22.2 No 158 / CSA 22.2 No 158 |
| Use group | B / C / D |
| Rated voltage | 1000 V |
Electrical data - General information
| Wiring direction | Side-entry wiring |
|---|
Connection data
| Clamping units | 10 |
|---|---|
| Total number of potentials | 5 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | POWER CAGE CLAMP |
|---|---|
| Actuation type | T-wrench; 8 mm, Operating tool |
| Connectable conductor materials | Copper |
| Nominal cross-section | 95 mm² |
| Solid conductor | 25 … 95 mm² / 4 … 4/0 AWG |
| Stranded conductor | 25 … 95 mm² / 4 … 4/0 AWG |
| Fine-stranded conductor | 25 … 95 mm² / 4 … 4/0 AWG |
| Fine-stranded conductor; with insulated ferrule | 25 … 95 mm² / 4 … 4/0 AWG |
| Fine-stranded conductor; with uninsulated ferrule | 25 … 95 mm² / 4 … 4/0 AWG |
| Strip length | 35 mm / 1.38 inches |
| Wiring direction | Side-entry wiring |
Physical data
| Width | 125 mm / 4.921 inches |
|---|---|
| Height | 107 mm / 4.213 inches |
| Depth from upper-edge of DIN-rail | 101 mm / 3.976 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 x 15 rail, DIN-35 rail |
| Mounting (note) | only suitable for DIN 35 x 15 rail |
| Marking level | Side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray/blue/green-yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 16.918 MJ |
| Halogen-free | Yes |
| Weight | 1340.8 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454204396 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-06 |
| eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 |
| ETIM 10.0 | EC001284 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
