Wago 285-197/999-950

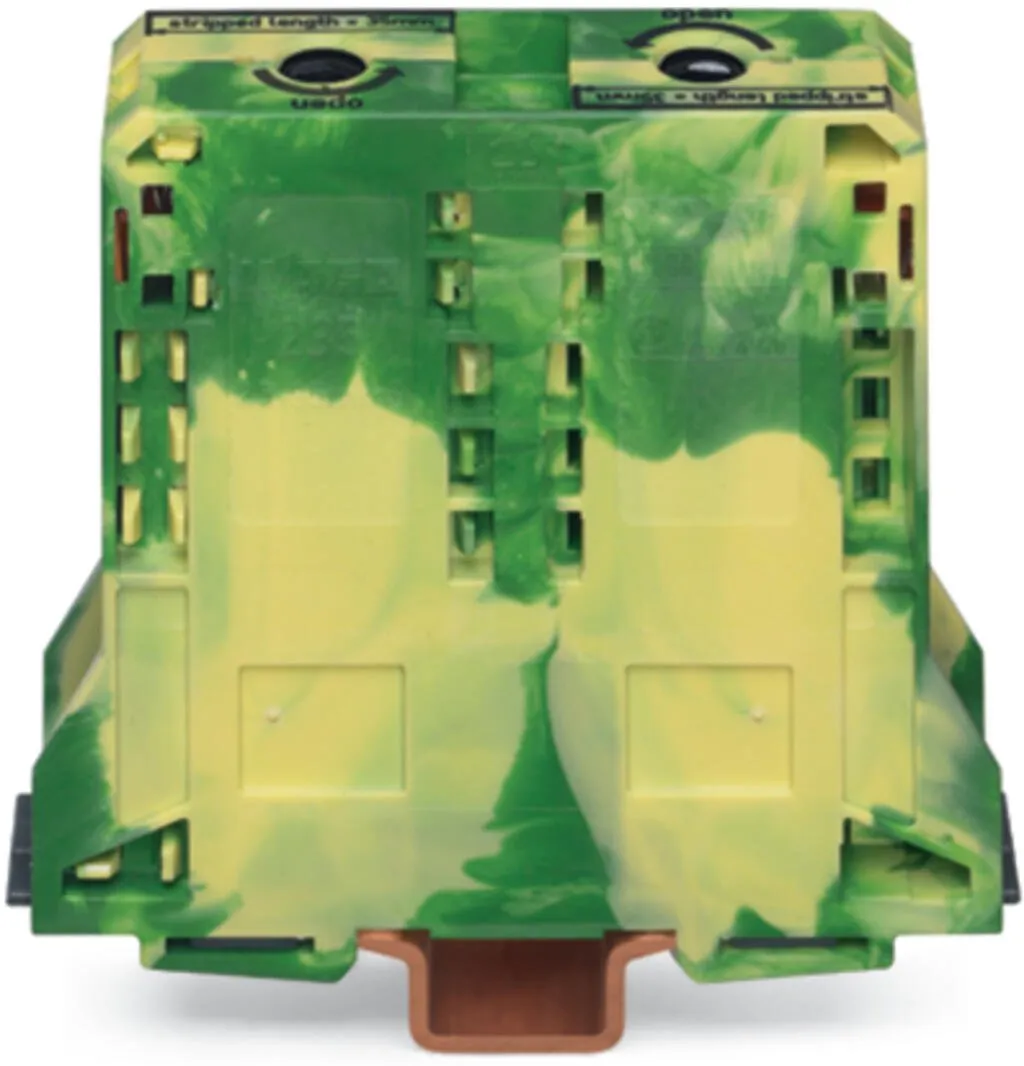

High-current terminal block, 285 Series, green-yellowQuick and easy connections are guaranteed with this ground terminal block (item number 285-197/999-950). Conductors can only be connected to this g…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High-current terminal block, 285 Series, green-yellowQuick and easy connections are guaranteed with this ground terminal block (item number 285-197/999-950). Conductors can only be connected to this ground terminal block if their strip length is 35 mm . This product features conductor terminals and utilizes POWER CAGE CLAMP. The POWER CAGE CLAMP is perfect for connecting large conductor cross-sections. This universal connector is both reliable and maintenance-free. What’s more, you can use it to connect all types of conductors and the clamping point can be locked open, making it easier to use. You do not need to use a torque wrench or prepare the conductor. For example, crimping ferrules is not necessary. This ground terminal block is suitable for conductor cross sections ranging from 35 mm² to 70 mm².This product is designed for specific Ex applications (please refer to the product datasheet).
Specification
Electrical data - Ex information
| Reference to hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
|---|
Electrical data - General information
| Wiring direction | Side-entry wiring |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
| Number of jumper slots | 2 |
Connection data - Connection 1
| Connection technology | POWER CAGE CLAMP |
|---|---|
| Actuation type | T-wrench; 8 mm |
| Connectable conductor materials | Copper |
| Nominal cross-section | 95 mm² |
| Solid conductor | 35 … 70 mm² / 2 … 2/0 AWG |
| Stranded conductor | 25 … 95 mm² / 4 … 4/0 AWG |
| Fine-stranded conductor | 35 … 70 mm² / 2 … 2/0 AWG |
| Fine-stranded conductor; with insulated ferrule | 25 … 95 mm² / 4 … 4/0 AWG |
| Fine-stranded conductor; with uninsulated ferrule | 25 … 95 mm² / 4 … 4/0 AWG |
| Strip length | 35 mm / 1.38 inches |
| Wiring direction | Side-entry wiring |

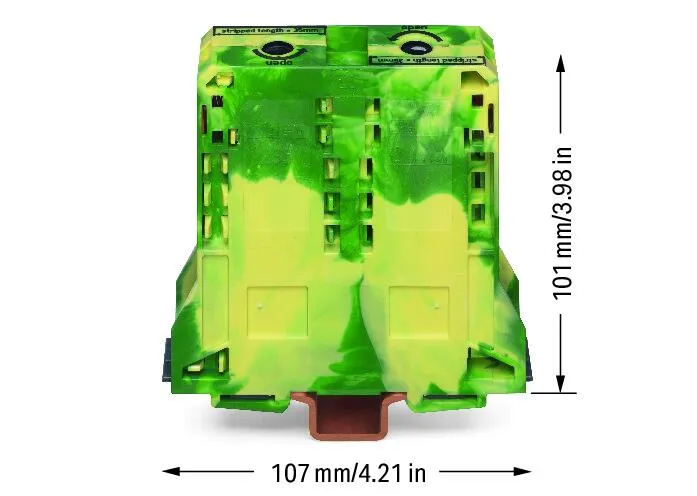

Physical data
| Width | 25 mm / 0.984 inches |
|---|---|
| Height | 107 mm / 4.213 inches |
| Depth from upper-edge of DIN-rail | 101 mm / 3.976 inches |
Mechanical data
| Mounting type | DIN-35 x 15 rail; 2.3 mm thick; copper |
|---|---|
| Mounting (note) | only suitable for DIN 35 x 15 rail |
| Marking level | Side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | green-yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 3.266 MJ |
| Weight | 309.3 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| PU (SPU) | 5 pcs |
|---|---|
| Packaging type | box |
| Country of origin | PL |
| GTIN | 4045454204389 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-41 |
| eCl@ss 9.0 | 27-14-11-41 |
| ETIM 9.0 | EC000901 |
| ETIM 10.0 | EC000901 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
