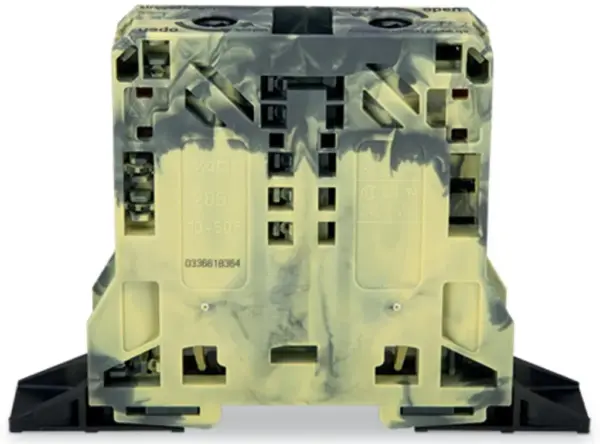

Wago 285-147/999-950

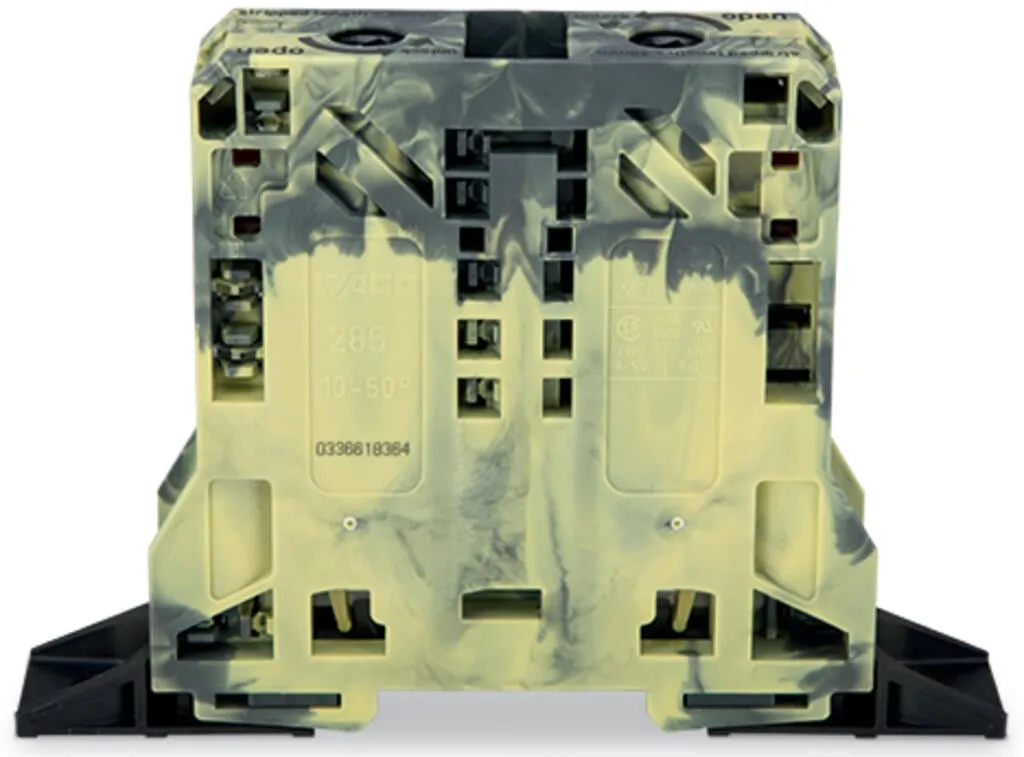

High-current terminal block, 285 Series, power cage clampThis through terminal block (item number 285-147/999-950) is designed for quick and simple connections. Conductors can only be connected to thi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High-current terminal block, 285 Series, power cage clampThis through terminal block (item number 285-147/999-950) is designed for quick and simple connections. Conductors can only be connected to this through terminal block if their strip length is 32 mm . Featuring conductor terminals along with POWER CAGE CLAMP, this product outperforms the competition. The POWER CAGE CLAMP is perfect for connecting large conductor cross-sections. This universal connector is both reliable and maintenance-free. What’s more, you can use it to connect all types of conductors and the clamping point can be locked open, making it easier to use. You do not need to use a torque wrench or prepare the conductor. For example, crimping ferrules is not necessary. This through terminal block is suitable for conductor cross sections ranging from 10 mm² to 50 mm².
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-1 |
|---|---|
| Nominal voltage (III/3) | 1000 V |
| Rated impulse withstand voltage (III / 3) | 8 kV |
| Rated current | 150 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Electrical data - Ratings per UL
| Approvals per | UL 1059 |
|---|---|
| Rated voltage UL (Use Group B) | 600 V |
| Rated current UL (Use Group B) | 150 A |
| Rated voltage UL (Use Group C) | 600 V |
| Rated current UL (Use Group C) | 150 A |
Electrical data - Ratings per CSA
| Approvals per | CSA 22.2 No 158 |
|---|---|
| Rated voltage CSA (Use Group B) | 600 V |
| Rated current CSA (Use Group B) | 150 A |
| Rated voltage CSA (Use Group C) | 600 V |
| Rated current CSA (Use Group D) | 150 A |
Electrical data - Ex information
| Reference to hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
|---|---|
| Ratings per | ATEX: PTB 98 ATEX 3134 U (Ex eb IIC Gb) |
| Rated voltage EN (Ex e II) | 880 V |
| Rated current (Ex e II) | 134 A |
| Rated current (Ex e II) with jumper | 109 A |
Electrical data - Power Loss
| Power loss, per pole (potential) | 4.725 W |
|---|---|
| Rated current I<sub>N</sub> for power loss specification | 150 A |
| Resistance value for specified, current-dependent power loss | 0 Ω |
Electrical data - General information
| Wiring direction | Side-entry wiring |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
| Number of jumper slots | 2 |
Connection data - Connection 1
| Connection technology | POWER CAGE CLAMP |
|---|---|
| Actuation type | T-wrench; 8 mm |
| Connectable conductor materials | Copper |
| Nominal cross-section | 50 mm² |
| Solid conductor | 10 … 50 mm² / 8 … 1/0 AWG |
| Stranded conductor | 10 … 70 mm² / 8 … 2/0 AWG |
| Fine-stranded conductor | 10 … 70 mm² / 8 … 2/0 AWG |
| Fine-stranded conductor; with insulated ferrule | 10 … 50 mm² / 8 … 1/0 AWG |
| Fine-stranded conductor; with uninsulated ferrule | 10 … 50 mm² / 8 … 1/0 AWG |
| Strip length | 32 mm / 1.26 inches |
| Wiring direction | Side-entry wiring |
Physical data

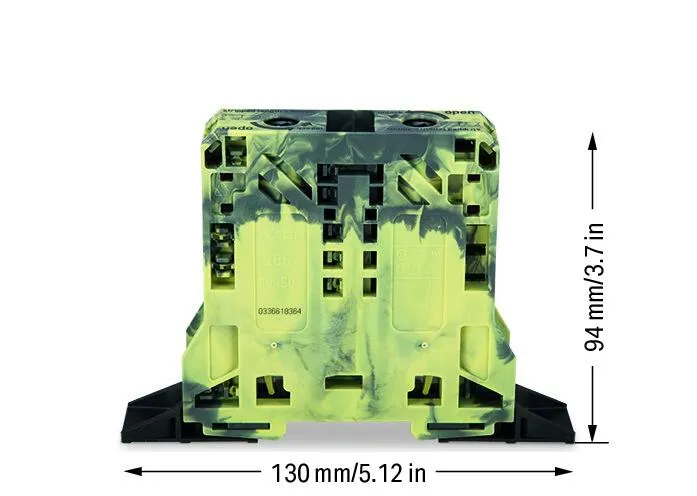

| Width | 20 mm / 0.787 inches |
|---|---|
| Height from the surface | 94 mm / 3.7 inches |
| Depth | 130 mm / 5.118 inches |
Mechanical data
| Mounting type | Mounting flange |
|---|---|
| Mounting type | Panel mounting |
| Marking level | Side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | dark gray/yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 2.036 MJ |
| Weight | 164.6 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| PU (SPU) | 5 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | PL |
| GTIN | 4066966490541 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| ETIM 9.0 | EC000897 |
| ETIM 10.0 | EC000897 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
