Wago 285-1187
High-current terminal block, 285 Series, t-wrench und 8 mmOur ground terminal block (item number 285-1187) is designed for seamless electrical installations. Conductors should only be connected to thi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

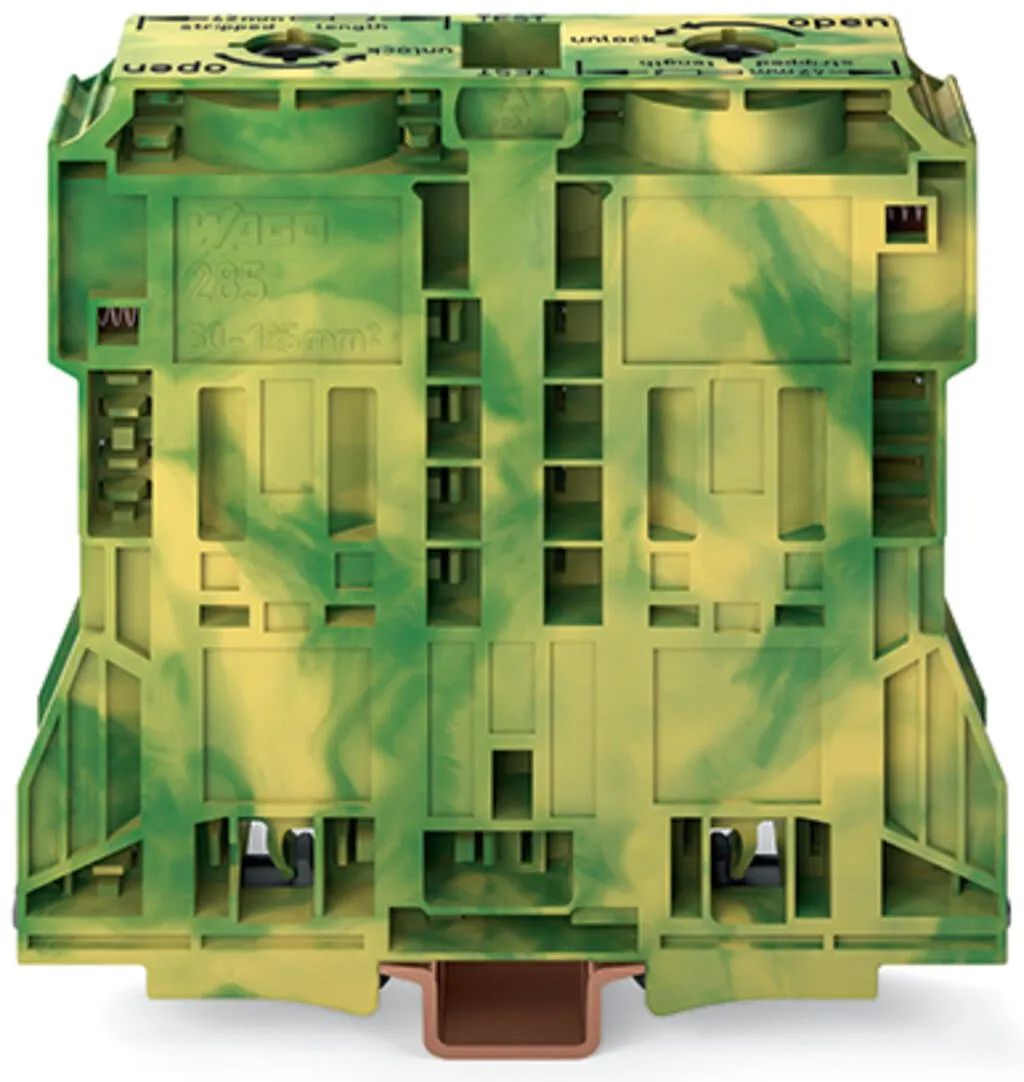

High-current terminal block, 285 Series, t-wrench und 8 mmOur ground terminal block (item number 285-1187) is designed for seamless electrical installations. Conductors should only be connected to this ground terminal block if their strip length is between 45 and 47 mm . Featuring conductor terminals along with POWER CAGE CLAMP, this connector is highly versatile. Our POWER CAGE CLAMP connection technology is the perfect choice for connecting large conductor cross-sections. This universal connector is reliable and maintenance-free. Unlike other connections methods, you do not need to crimp the ferrule or use a torque wrench. This makes it nice and easy to use. This ground terminal block is suitable for conductor cross sections ranging from 50 mm² to 120 mm².
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-2 |
|---|---|
| Ratings per | IEC/EN 60947-7-2 / IEC/EN 60947-7-2 / IEC/EN 60947-7-2 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
Electrical data - General information
| Wiring direction | Side-entry wiring |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
| Number of jumper slots | 2 |
Connection data - Connection 1
| Connection technology | POWER CAGE CLAMP |
|---|---|
| Actuation type | T-wrench; 8 mm |
| Connectable conductor materials | Copper |
| Nominal cross-section | 120 mm² / 250 kcmil |
| Solid conductor | 50 … 120 mm² / 1/0 AWG … 250 kcmil |
| Stranded conductor | 50 … 120 mm² / 1/0 AWG … 250 kcmil |
| Fine-stranded conductor | 50 … 120 mm² / 1/0 AWG … 250 kcmil |
| Fine-stranded conductor; with insulated ferrule | 50 … 120 mm² / 1/0 AWG … 250 kcmil |
| Fine-stranded conductor; with uninsulated ferrule | 50 … 120 mm² / 1/0 AWG … 250 kcmil |
| Strip length | 45 … 47 mm / 1.77 … 1.85 inches |
| Wiring direction | Side-entry wiring |

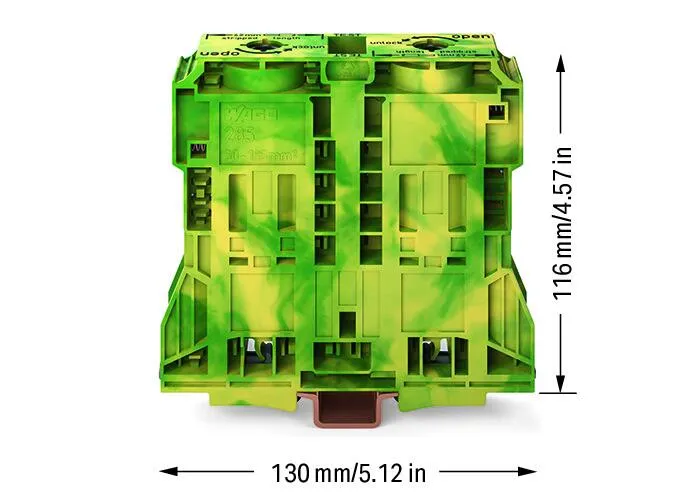

Physical data
| Width | 32 mm / 1.26 inches |
|---|---|
| Height | 130 mm / 5.118 inches |
| Depth from upper-edge of DIN-rail | 116 mm / 4.567 inches |
Mechanical data
| Mounting type | DIN-35 x 15 rail; 2.3 mm thick; copper |
|---|---|
| Mounting (note) | only suitable for DIN 35 x 15 rail |
| Marking level | Side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | green-yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 5.344 MJ |
| Weight | 619.5 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 5 pcs |
| Packaging type | box |
| Country of origin | PL |
| GTIN | 4055143067072 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-41 |
| eCl@ss 9.0 | 27-14-11-41 |
| ETIM 9.0 | EC000901 |
| ETIM 10.0 | EC000901 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
