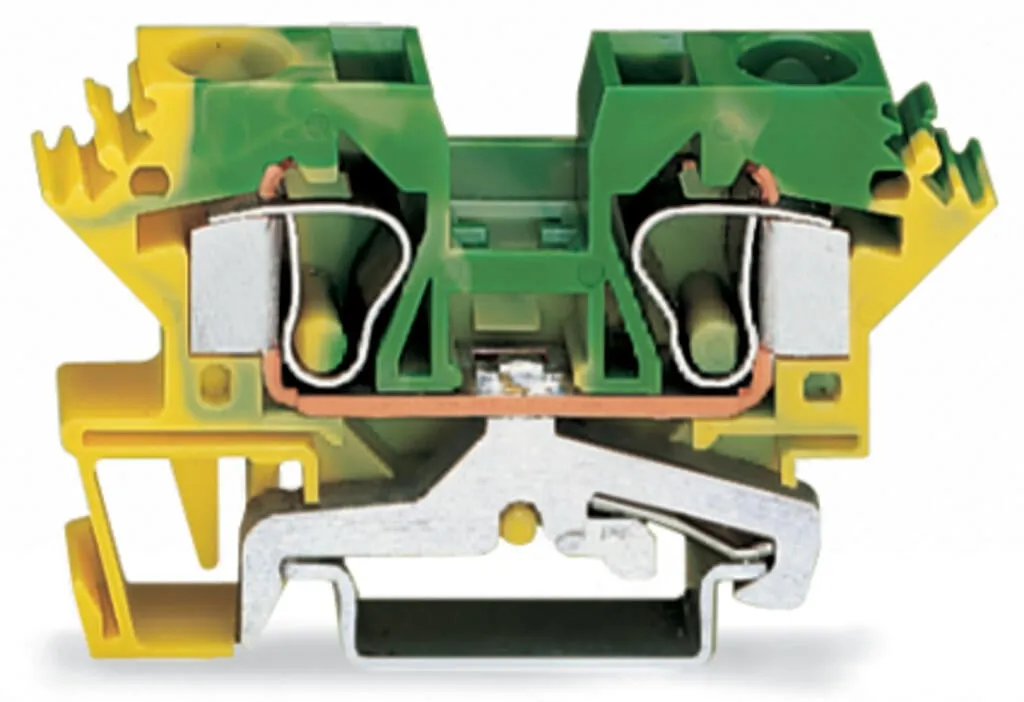

Wago 284-607
Ground terminal block, 284 Series, CAGE CLAMP®This ground terminal block (item number 284-607) is designed to connect conductors quickly and easily. Strip lengths must be between 12 and 13 mm when co…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Ground terminal block, 284 Series, CAGE CLAMP®This ground terminal block (item number 284-607) is designed to connect conductors quickly and easily. Strip lengths must be between 12 and 13 mm when connecting conductors to this ground terminal block. Ground terminal blocks connect directly to the mounting rail via an integrated contact foot. This creates an electrical and mechanical connection between the electrical conductors and the mounting adapter. This product incorporates conductor terminals and utilizes CAGE CLAMP®. Our proven universal connection known as CAGE CLAMP® is industry-leading when it comes to connection technology and electrical interconnections. This ground terminal block is suitable for conductor cross sections ranging from 0.2 mm² to 10 mm².This through rail-mount terminal block is operated with an operating tool.
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-2 |
|---|---|
| Ratings per | IEC/EN 60947-7-2 / IEC/EN 60947-7-2 / IEC/EN 60947-7-2 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
Electrical data - General information
| Wiring direction | Front-entry wiring |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 10 mm² / 24 … 8 AWG |
| Fine-stranded conductor | 0.2 … 10 mm² / 24 … 8 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
| Wiring direction | Front-entry wiring |

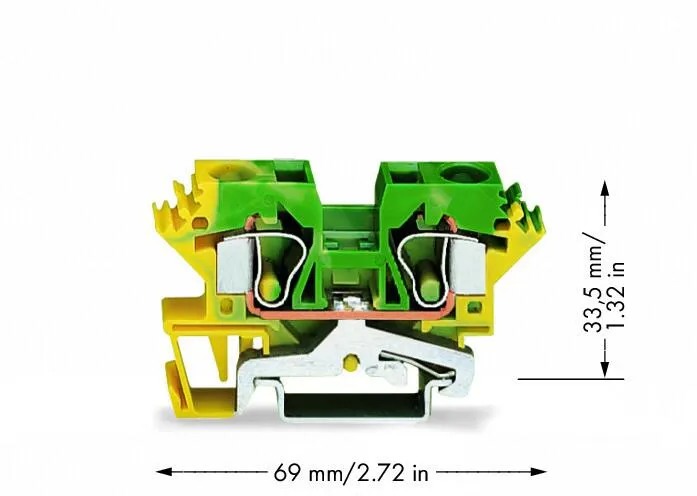

Physical data
| Width | 10 mm / 0.394 inches |
|---|---|
| Height | 69 mm / 2.717 inches |
| Depth from upper-edge of DIN-rail | 33.5 mm / 1.319 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | green-yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.246 MJ |
| Weight | 27.4 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 25 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454084592 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-41 |
| eCl@ss 9.0 | 27-14-11-41 |
| ETIM 9.0 | EC000901 |
| ETIM 10.0 | EC000901 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | c155851e-51b7-4dbb-9786-0ff56c0789a2 |
| SCIP notification number (Belgium) | 61170ba6-8da4-4761-a5fc-605f53d02107 |
| SCIP notification number (Bulgaria) | fb97b439-f56d-489c-b991-88895786d5d7 |
| SCIP notification number (Czech Republic) | ecf32cb8-083f-46b4-b518-7691ff7919aa |
| SCIP notification number (Denmark) | 56959675-483c-45ee-88bd-1c6217e41458 |
| SCIP notification number (Finland) | e27678e1-2d36-4241-ba44-2ddd7c6afc77 |
| SCIP notification number (France) | 702c533c-f1ba-4425-a53f-aad7c314203b |
| SCIP notification number (Germany) | 882323f4-b872-46dc-99e0-992cc08bbbfb |
| SCIP notification number (Hungary) | 28e0b038-266f-4faf-a8d5-25e6de5e62b4 |
| SCIP notification number (Italy) | c2b1edc7-555c-499a-9fb8-e6608645fa8c |
| SCIP notification number (Netherlands) | 29122cc8-c0bf-4881-8264-11e577cba40b |
| SCIP notification number (Poland) | a6586cf3-e53e-4074-a527-64ca7626743c |
| SCIP notification number (Romania) | 426538b0-4fd1-464e-a353-4d288796d15b |
| SCIP notification number (Sweden) | ab4a58d4-8640-4650-a5fb-16bc76adf92a |
