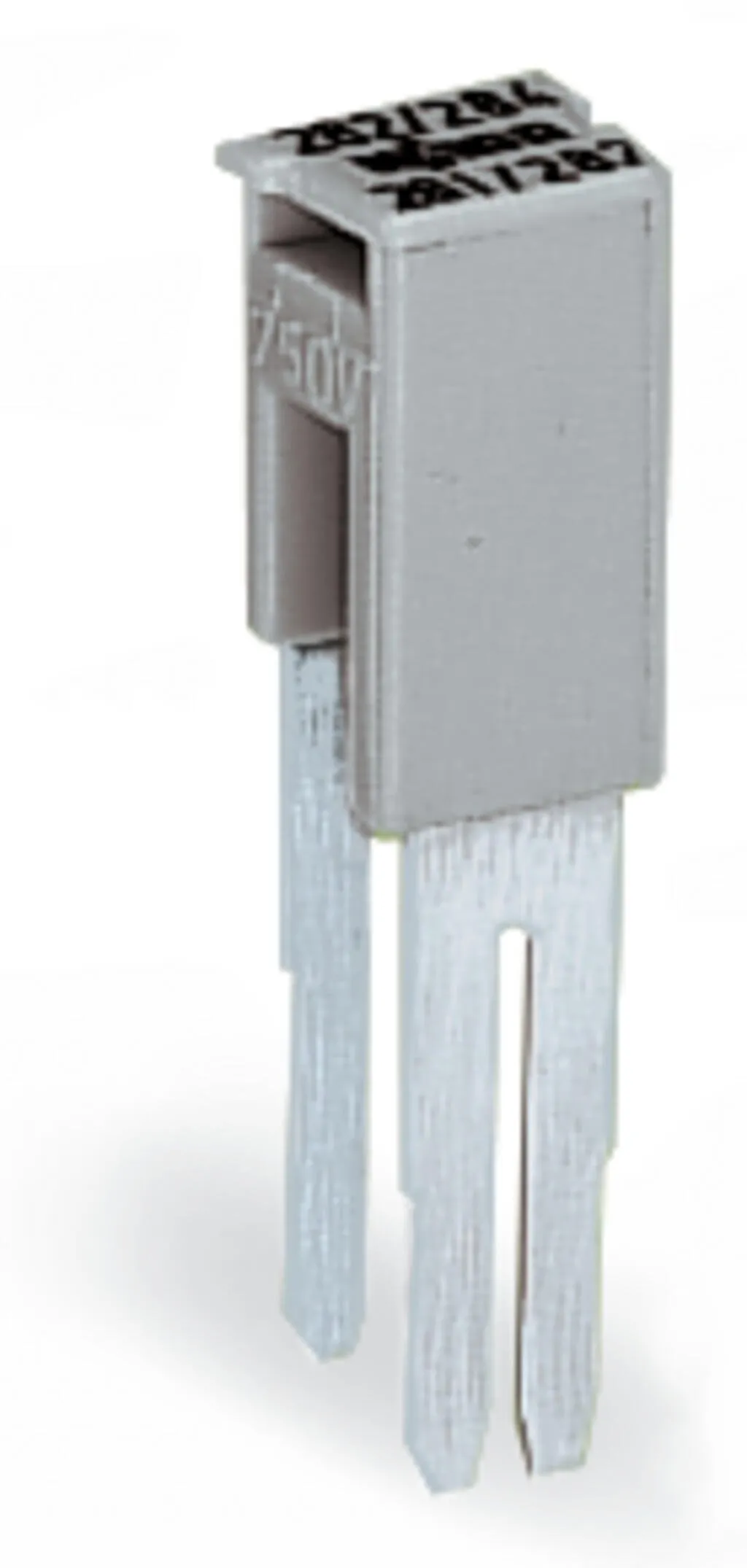

Wago 284-413
Step-down jumper; from 284/282 to 282/281 series; insulated; gray 284-413
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Step-down jumper; from 284/282 to 282/281 series; insulated; gray 284-413
Specification
Electrical data - Ratings per IEC/EN
| Rated current | 30 A |
|---|
Physical data
| Width | 7 mm / 0.276 inches |
|---|---|
| Height | 9.6 mm / 0.378 inches |
| Depth | 30.6 mm / 1.205 inches |
| Jumper assignment | 1-2 |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.017 MJ |
| Weight | 2.8 g |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 50 (25) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4044918255455 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-14-11-40 |
| eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC000489 |
| ETIM 10.0 | EC000489 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
