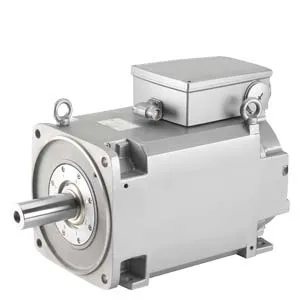

Siemens 1PH8138-1CZ22-0LA2-Z K6B+V90
SIMOTICS M compact asynchronous motor 2000 r/min 40 kW 191 Nm 98 A 425 V liquid cooling, degree of protection IP65 incremental encoder sin/cos 1 Vpp 256 S/R without C and D track with temperature sens…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Description

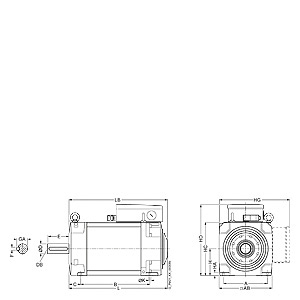

SIMOTICS M compact asynchronous motor 2000 r/min 40 kW 191 Nm 98 A 425 V liquid cooling, degree of protection IP65 incremental encoder sin/cos 1 Vpp 256 S/R without C and D track with temperature sensor Pt1000 type of construction IM B5 (IMV 1, IM V3) plain shaft without feather key bearing version: performance vibration class: special/B shaft and flange accuracy: special, terminal box (top) cable entry on the right signal port DE K6B: potted special winding V90: 1PH7-compatible shaft extension 42x 110 mm note: dimension drawing as for motor 1PH8138-1CF22-0LA1-Z, V90(*)
