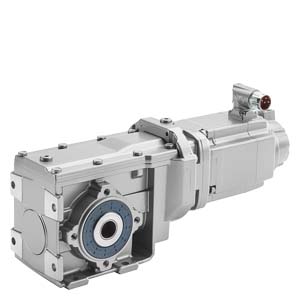

Siemens 1FG1502-5ZF13-2HD1-Z D14+E09+G23+J2R+K07+N50+P20+X01+Y84
SIMOTICS S-1FG1 synchronous servo geared motor bevel gearbox B39 motor type CT 600V AH80 Mmax=37 hollow shaft H30 with keyway housing flange transmission: 5.56 N1max=4500 rpm N2max = 809 rpm, M2max =…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Description
SIMOTICS S-1FG1 synchronous servo geared motor bevel gearbox B39 motor type CT 600V AH80 Mmax=37 hollow shaft H30 with keyway housing flange transmission: 5.56 N1max=4500 rpm N2max = 809 rpm, M2max = 200 Nm D14: mounting position M4-A E09: angle of rotation Y axis 45° K07: oil CLP PG VG220 G23: seal longer service life J2R: special res. 2-pole with M23 w/o PT N50: power connector 8-pole with PT1000, P20: additional customer label N506650 X01: matt black RAL 9005 Y84: customer specifications on rating plate max. 20 characters customer-specific motor: AGT(*)
