Siemens 1FG1502-5QF63-4DC1-Z D11+G23+K12+N23+Q93+R72

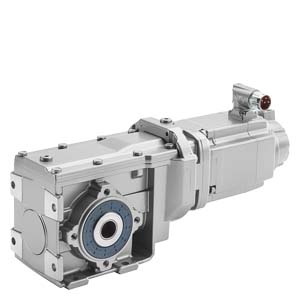

SIMOTICS S-1FG1 synchronous servo geared motor bevel gearbox B39 motor type HD 600V AH80 Mmax=94 hollow shaft with keyway standard H30; absolute encoder single-turn 20-bit DRIVE-CLiQ interface (encode…
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Description
SIMOTICS S-1FG1 synchronous servo geared motor bevel gearbox B39 motor type HD 600V AH80 Mmax=94 hollow shaft with keyway standard H30; absolute encoder single-turn 20-bit DRIVE-CLiQ interface (encoder AS20DQI) plug-on version transfer ratio: 4.74 N1max=4500 rpm N2max=949 rpm, M2max = 200 Nm; mounting position M1-A D11=seal longer service life; K12=oil CLP ISO PAO VG220 N23=standard holding brake Q93=connector position on the left R72=encoder -30 °C/+40 °C suitable customer-specific motor acc. to CIGO10114463
