Fast delivery within 72 Hours

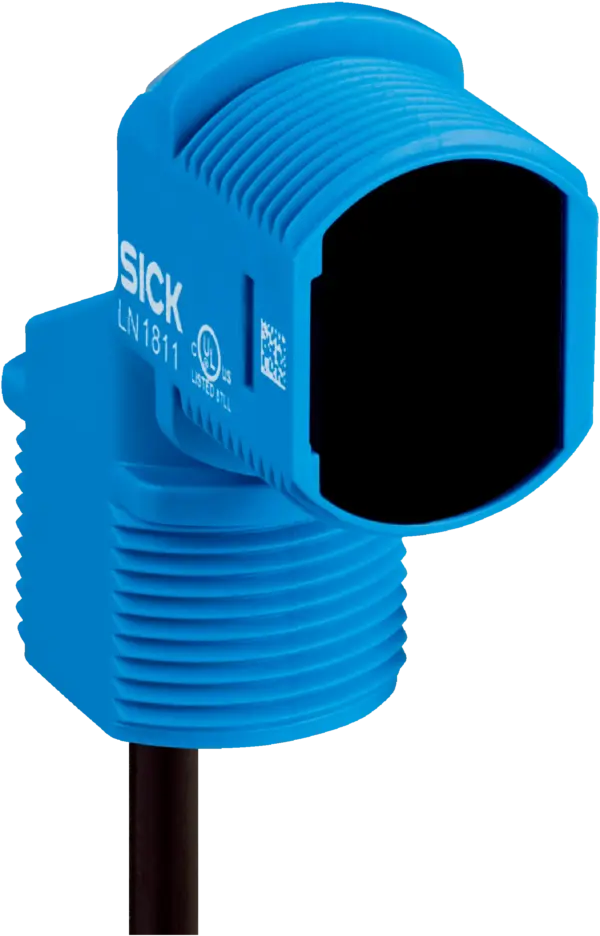

Sick ZTB18-4AB1G1D02
Photoelectric sensors | Z18 Simple Sense | ZTB18-4AB1G1D02 | Communication interface: – | Mounting system type: M18, head/M18, base | Sensor/ detection principle: Photoelectric proximity sensor, Backg…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Photoelectric sensors | Z18 Simple Sense | ZTB18-4AB1G1D02 | Communication interface: – | Mounting system type: M18, head/M18, base | Sensor/ detection principle: Photoelectric proximity sensor, Background suppression | Sensing range: 50 mm | Light source, light type: PinPoint LED, Infrared light | Switching output Q1: Push-pull: PNP/NPN, Light switching | Switching output Q2: Push-pull: PNP/NPN, Dark switching | Connection type: Cable open end, 4-wire, 2,000 mm
Specification
Features
| Functional principle | Photoelectric proximity sensor |
|---|---|
| Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 13.6 mm x 42.9 mm x 33.3 mm |
| Housing design (light emission) | Hybrid |
| Thread diameter (housing) | M18 |
| Mounting system type | M18, head/M18, base |
| Housing color | Blue |
| Sensing range max. | 5 mm ... 50 mm 1) |
| Sensing range | 5 mm ... 50 mm 2) |
| Type of light | Infrared light |
| Light source | PinPoint LED |
| Light spot size (distance) | Ø 8 mm (100 mm) |
| Wave length | 850Â nm |
Mechanics/electronics
| Supply voltage UB | 10Â VÂ DCÂ ... 30Â VÂ DC |
|---|---|
| Ripple | <Â 10Â % |
| Current consumption | ≤ 15 mA 1) |
| Switching output | Push-pull: PNP/NPN |
| Switching mode | Light switching, Dark switching |
| Switching output Q1 | Push-pull: PNP/NPN, Light switching |
| Switching output Q2 | Push-pull: PNP/NPN, Dark switching |
| Output current Imax. | 100Â mA |
| Response time | ≤ 1 ms 2) |
| Switching frequency | 500 kHz 3) |
| Connection type | Cable open end, 4-wire, 2,000Â mm |
| Cable material | Plastic, PVC |
| Conductor cross section | 0.13 mm² |
| Circuit protection | AÂ 4)BÂ 5)DÂ 6) |
| Protection class | III |
| Weight | 4.54Â g |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –40 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| UL File No. | E189383 |
Connection type/pinouts
| Cable material | Plastic |
|---|---|
| Conductor cross section | 0.13 mm² |
| BN | + (L+) |
| WH | Q2 |
| BU | - (M) |
| BK | Q1 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
Classifications
| ECLASS 5.0 | 27270904 |
|---|---|
| ECLASS 5.1.4 | 27270904 |
| ECLASS 6.0 | 27270904 |
| ECLASS 6.2 | 27270904 |
| ECLASS 7.0 | 27270904 |
| ECLASS 8.0 | 27270904 |
| ECLASS 8.1 | 27270904 |
| ECLASS 9.0 | 27270904 |
| ECLASS 10.0 | 27270904 |
| ECLASS 11.0 | 27270904 |
| ECLASS 12.0 | 27270903 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
Reviews
Clear filtersThere are no reviews yet.
