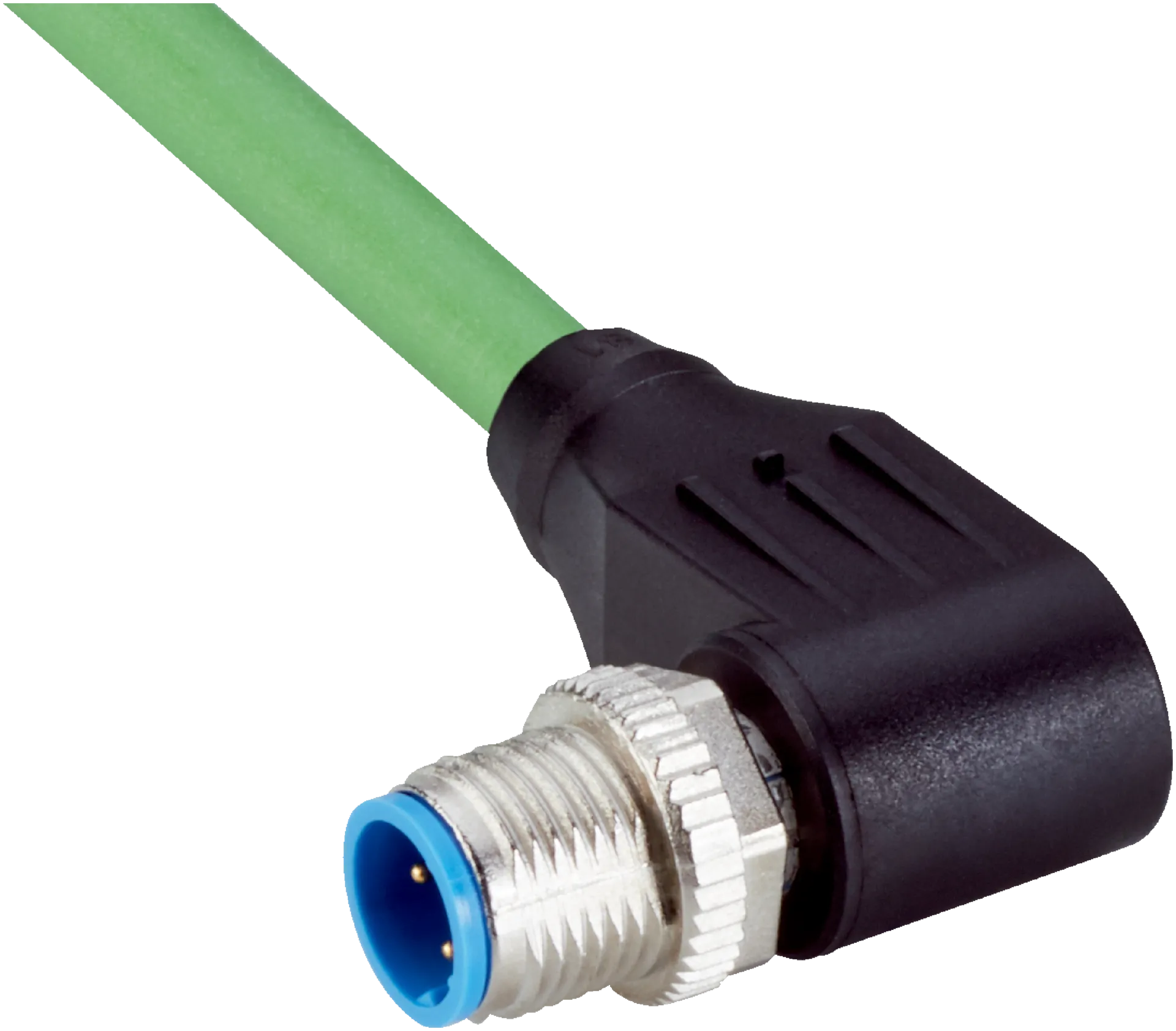

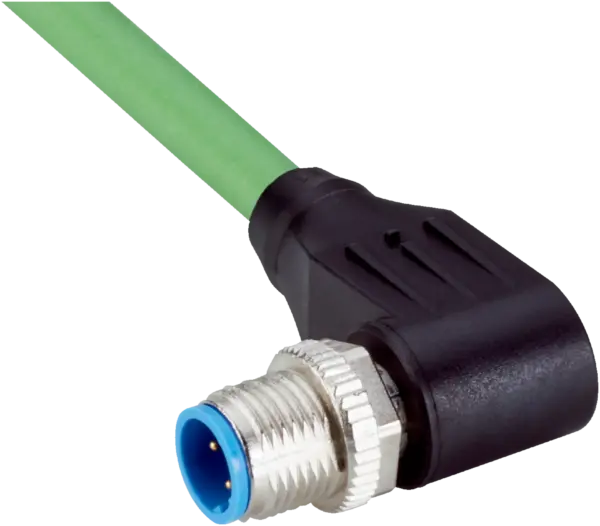

Sick YN2D24-200PN1XLEAX
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YN2D24-200PN1XLEAX | Connection type head A: Male connector, M12, 4-pin, angled, D-coded | Connection type head B: Flying leads…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YN2D24-200PN1XLEAX | Connection type head A: Male connector, M12, 4-pin, angled, D-coded | Connection type head B: Flying leads | Signal type: Ethernet, PROFINET | Cable: 20 m, 4-wire, PUR, halogen-free | Description: Ethernet, shielded, PROFINET | Application: Drag chain operation, Zones with oils and lubricants
Specification
Technical specifications
| Connection type head A | Male connector, M12, 4-pin, angled, D-coded |
|---|---|
| Connection type head B | Flying leads |
| Locking plug connector | Screw connection |
| Connector material | TPU |
| Connector color | Black |
| Locking nut material | Zinc die-cast, nickel-plated |
| Tightening torque | 0.6Â Nm |
| Width across flats | 13 |
| Cable | 20Â m, 4-wire, PUR, halogen-free |
| Jacket material | PUR, halogen-free |
| Jacket color | Green |
| Cable diameter | 6.7Â mm |
| Conductor cross section | 0.34 mm² |
| Shielding | Shielded |
| Flexible use | > 12Â x cable diameter |
| Stationary position | > 5Â x cable diameter |
| Drag chain operation | > 12Â x cable diameter |
| Bending cycles | 3,000,000 |
| Rated impulse voltage | 1.5Â kV |
| Current loading | 4Â A |
| Traversing speed | 3.3Â m/s |
| Travelling distance | 5Â m |
| Acceleration | ≤ 2 m/s² |
| Signal type | Ethernet, PROFINET |
| Transmission characteristics | CAT5e |
| Data transmission rate | ≤ 0.1 Gbit/s |
| Application | Drag chain operationZones with oils and lubricants |
| Enclosure rating | IP65 / IP66K / IP67 |
| Flexible use | –30 °C ... +70 °C |
| Stationary position | –40 °C ... +80 °C |
| Drag chain operation | –30 °C ... +70 °C |
| Head | –25 °C ... +85 °C |
| Contamination rating | 3 |
| Insulation resistance | > 100 MΩ |
| Overvoltage category | III |
| Specific insulation resistance | < 30 mΩ |
| Thermal resistance, piping | Flame retardant according to UL 1581Â Section 1060Â (FT1), Section 1061Â (cable flame), Section 1080Â (VW-1) / IECÂ 60332-1-2 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
Classifications
| ECLASS 5.0 | 27061801 |
|---|---|
| ECLASS 5.1.4 | 27061801 |
| ECLASS 6.0 | 27061801 |
| ECLASS 6.2 | 27061801 |
| ECLASS 7.0 | 27061801 |
| ECLASS 8.0 | 27061801 |
| ECLASS 8.1 | 27061801 |
| ECLASS 9.0 | 27061801 |
| ECLASS 10.0 | 27061801 |
| ECLASS 11.0 | 27061801 |
| ECLASS 12.0 | 27061801 |
| ETIM 5.0 | EC002599 |
| ETIM 6.0 | EC002599 |
| ETIM 7.0 | EC002599 |
| ETIM 8.0 | EC002599 |
