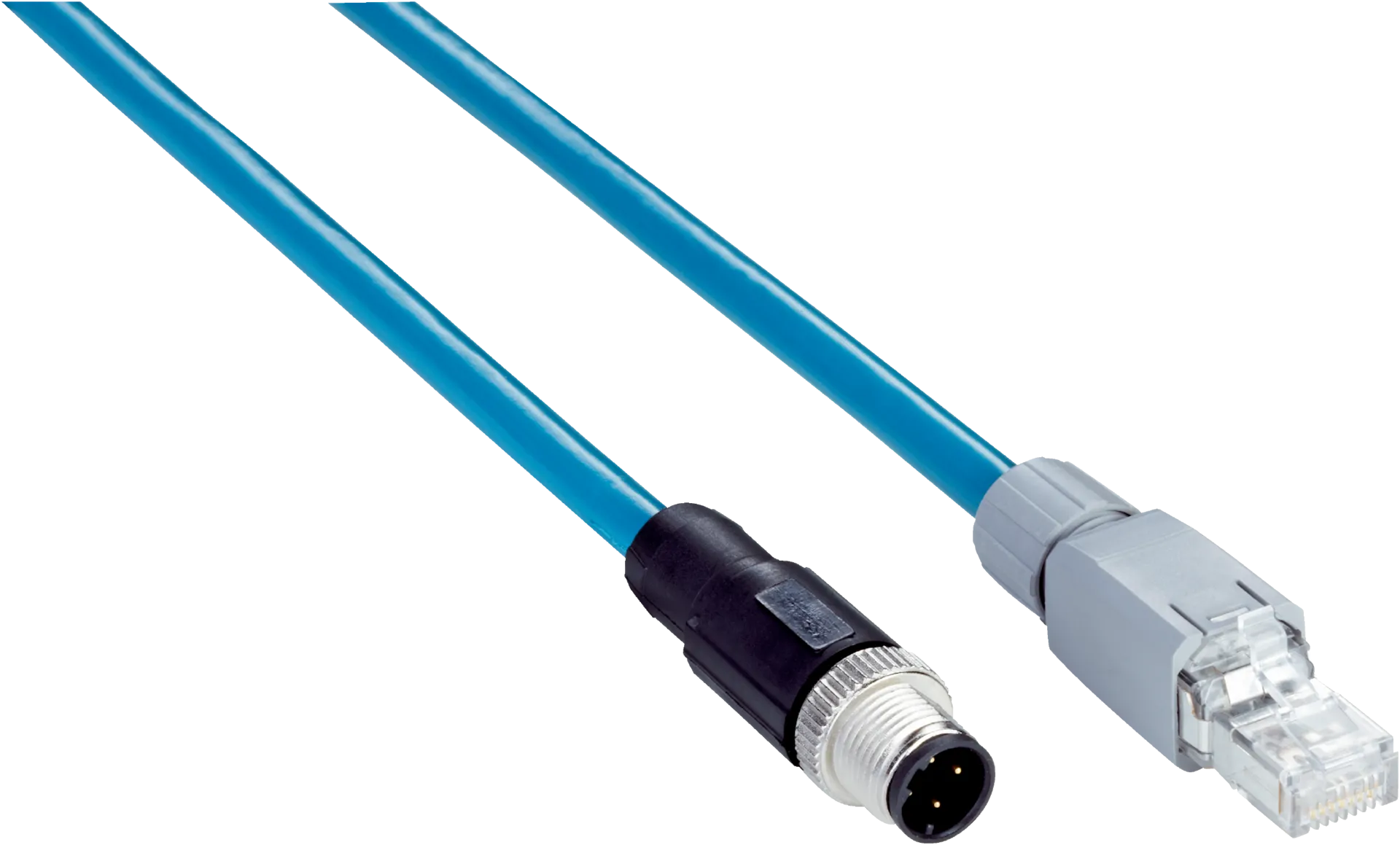

Sick YM2D24-100EB2MRJA4
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YM2D24-100EB2MRJA4 | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Connection type head B: Male conne…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YM2D24-100EB2MRJA4 | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Connection type head B: Male connector, RJ45, 8-pin, straight | Signal type: Ethernet, PROFINET | Cable: 10 m, 4-wire, AWG26, PVC | Description: Ethernet, shielded, PROFINET
Specification
Technical specifications
| Connection type head A | Male connector, M12, 4-pin, straight, D-coded |
|---|---|
| Connection type head B | Male connector, RJ45, 8-pin, straight |
| Locking nut material | Zinc die-cast, nickel-plated |
| Cable | 10Â m, 4-wire, AWG26, PVC |
| Jacket material | PVC |
| Cable diameter | 6.4Â mm |
| Shielding | Shielded |
| Signal type | Ethernet, PROFINET |
| Transmission characteristics | CAT5 |
| Data transmission rate | ≤ 100 Mbit/s |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
Classifications
| ECLASS 5.0 | 19030312 |
|---|---|
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
