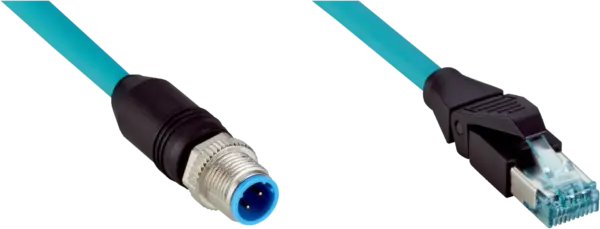

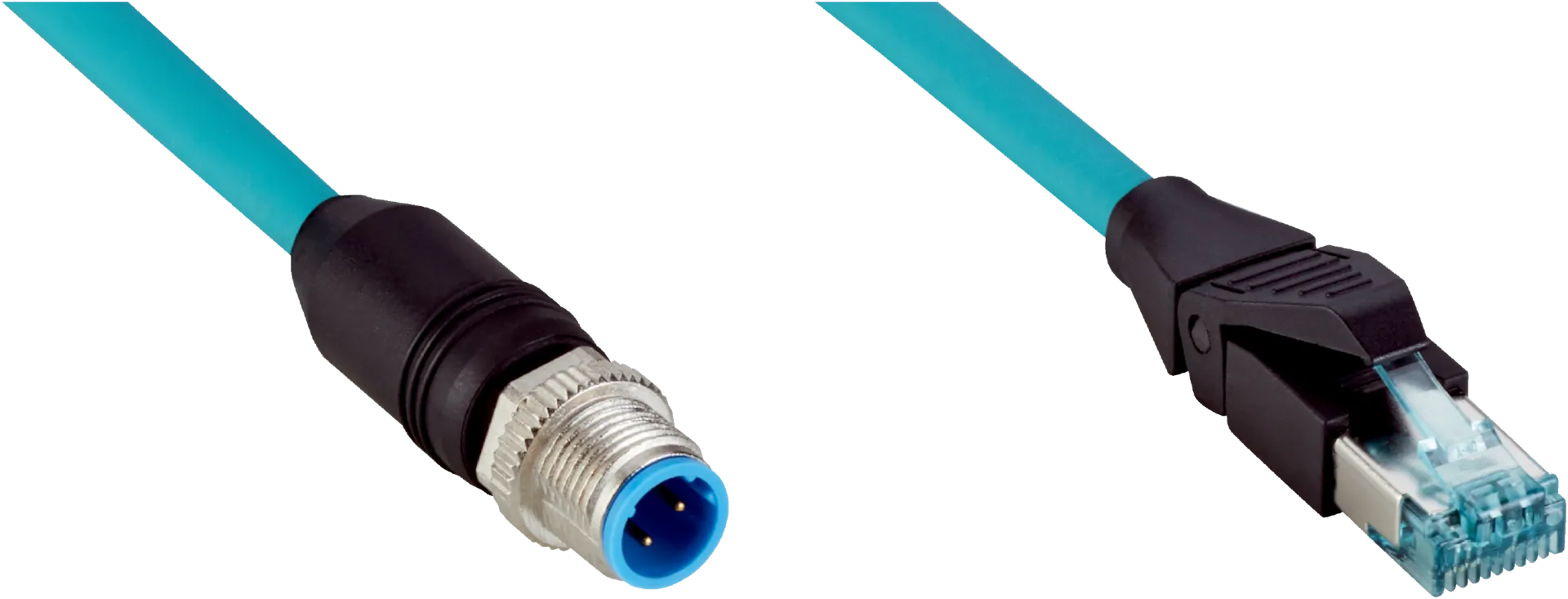

Sick YM2D24-020EF4MRJA4
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YM2D24-020EF4MRJA4 | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Connection type head B: Male conne…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YM2D24-020EF4MRJA4 | Connection type head A: Male connector, M12, 4-pin, straight, D-coded | Connection type head B: Male connector, RJ45, 4-pin, straight | Signal type: Ethernet, EtherNet/IPâ„¢ | Cable: 2 m, 4-wire, TPE | Description: Ethernet, shielded, EtherNet/IPâ„¢ | Application: Drag chain operation, Robot, Zones with oils and lubricants
Specification
Technical specifications
| Connection type head A | Male connector, M12, 4-pin, straight, D-coded |
|---|---|
| Connection type head B | Male connector, RJ45, 4-pin, straight |
| Locking plug connector | Screw-on connection (M12), snap-in locking (RJ45) |
| Connector material | TPU |
| Connector color | Black |
| Locking nut material | Zinc die-cast, nickel-plated |
| Tightening torque | 0.6Â Nm |
| Width across flats | 13 |
| Cable | 2Â m, 4-wire, TPE |
| Jacket material | TPE |
| Jacket color | Turquoise |
| Cable diameter | 6.6Â mm |
| Shielding | Shielded |
| Flexible use | > 10Â x cable diameter |
| Stationary position | > 8Â x cable diameter |
| Drag chain operation | > 10Â x cable diameter |
| Bending cycles | 1,000,000 |
| Nominal voltage, cable | 600Â VÂ AC |
| Test voltage, cable | 1,500Â VÂ AC |
| Rated impulse voltage | 1Â kV |
| Current loading | 1.5Â A |
| Traversing speed | 1.2Â m/s |
| Travelling distance | 0.6Â m |
| Acceleration | ≤ 2.4 m/s² |
| Signal type | Ethernet, EtherNet/IP™ |
| Transmission characteristics | CAT5e |
| Data transmission rate | ≤ 0.1 Gbit/s |
| Torsion force | 270° / 1 m |
| Torsion cycles | 3,000,000 |
| Cycles per minutes | 60 |
| Application | Drag chain operationRobotZones with oils and lubricants |
| Enclosure rating | IP67 (M12), IP20 (RJ45) |
| Stationary position | –40 °C ... +80 °C |
| Head | –25 °C ... +85 °C |
| Contamination rating | 3 |
| Insulation resistance | > 100 MΩ |
| Overvoltage category | III |
| Specific insulation resistance | < 30 mΩ |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
Classifications
| ECLASS 5.0 | 19030312 |
|---|---|
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
