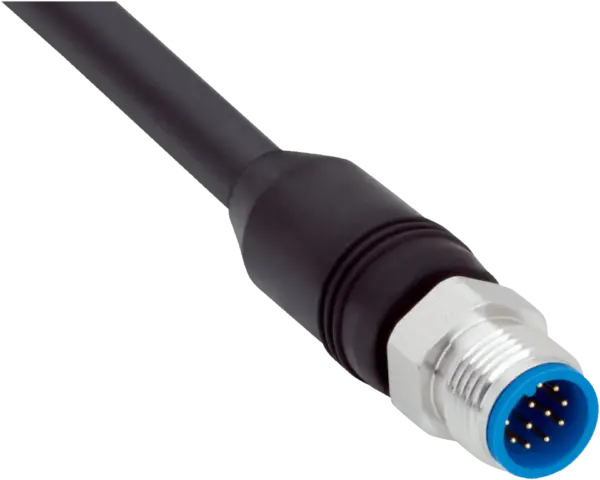

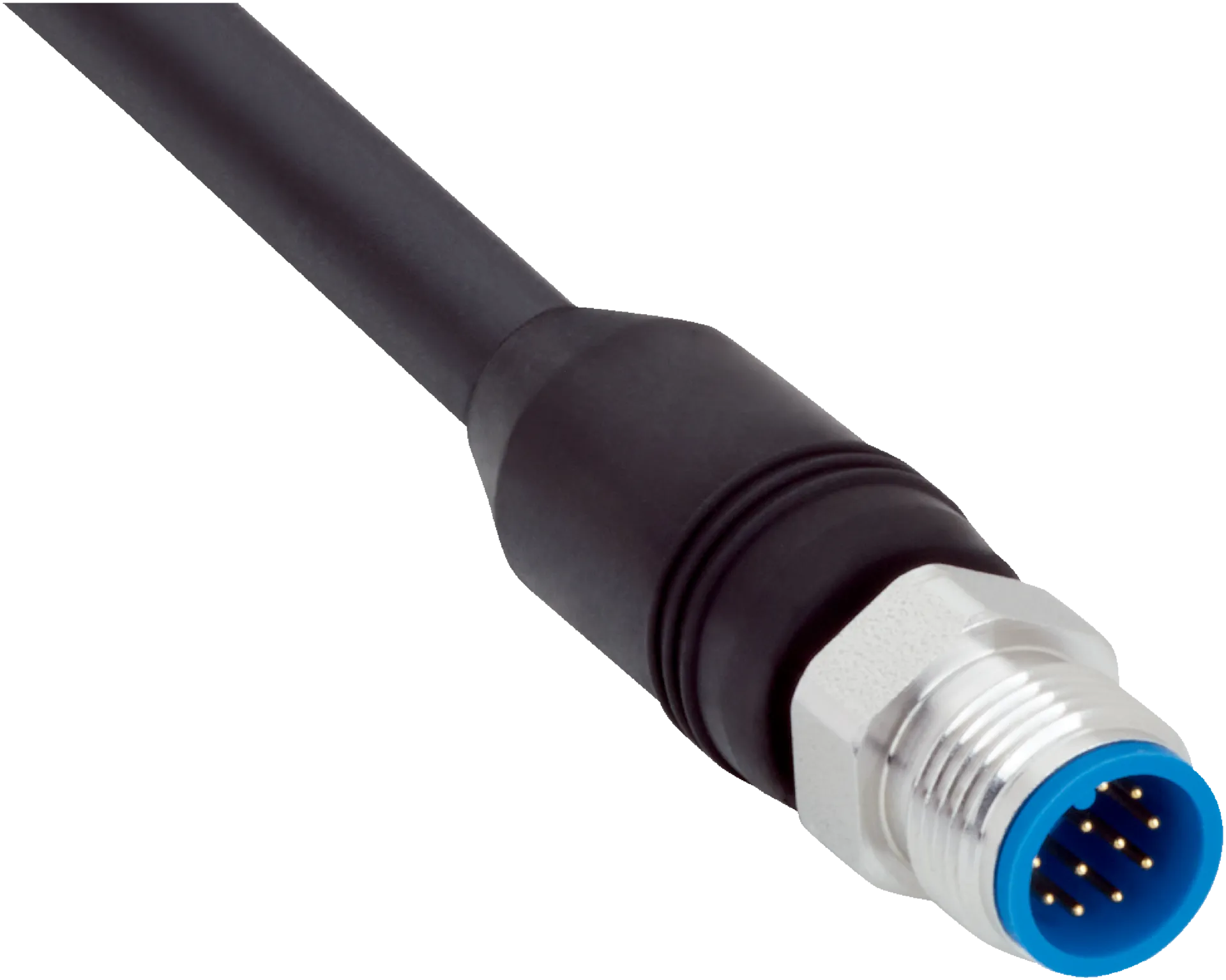

Sick YM2A6B-050UD3XLEAX
Connectors and cables | Sensor-actuator cables | YM2A6B-050UD3XLEAX | Connection type head A: Male connector, M12, 12-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Senso…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Sensor-actuator cables | YM2A6B-050UD3XLEAX | Connection type head A: Male connector, M12, 12-pin, straight, A-coded | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 5 m, 12-wire, PUR, halogen-free | Description: Sensor/actuator cable, shielded | Application: Uncontaminated zones, Zones with oils and lubricants, Robot, Drag chain operation, Outdoor
Specification
Technical specifications
| Connection type head A | Male connector, M12, 12-pin, straight, A-coded |
|---|---|
| Connection type head B | Flying leads |
| Locking plug connector | Screw connection |
| Connector material | TPU |
| Connector color | Black |
| Locking nut material | Stainless steel (V4A/1.4404) |
| Tightening torque | 0.6Â Nm |
| Width across flats | 13 |
| Cable | 5Â m, 12-wire, PUR, halogen-free |
| Jacket material | PUR, halogen-free |
| Jacket color | Black |
| Cable diameter | 7.2Â mm |
| Conductor cross section | 2 x 2 x 0.14 mm² |
| Shielding | Shielded |
| Flexible use | > 10Â x cable diameter |
| Stationary position | > 5Â x cable diameter |
| Drag chain operation | > 10Â x cable diameter |
| Bending cycles | 5,000,000 |
| Rated impulse voltage | 0.8Â kV |
| Current loading | 1.5Â A |
| Traversing speed | 3.3Â m/s |
| Travelling distance | 5Â m |
| Acceleration | ≤ 5 m/s² |
| Signal type | Sensor/actuator cable |
| Torsion force | 1Â m |
| Torsion cycles | 500,000 |
| Cycles per minutes | 35 |
| Application | Uncontaminated zonesZones with oils and lubricantsRobotDrag chain operationOutdoor |
| Enclosure rating | IP65 / IP66K / IP67 |
| Flexible use | –25 °C ... +80 °C |
| Stationary position | –40 °C ... +80 °C |
| Drag chain operation | –25 °C ... +80 °C |
| Head | –25 °C ... +85 °C |
| Contamination rating | 3 |
| Overvoltage category | III |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| China RoHS | ✔ |
| cULus certificate | ✔ |
