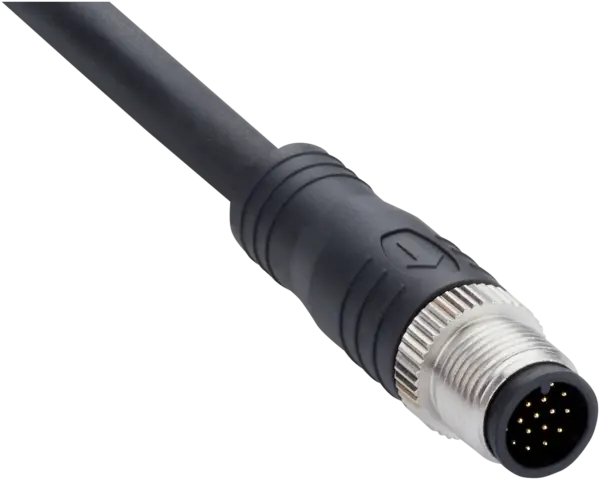

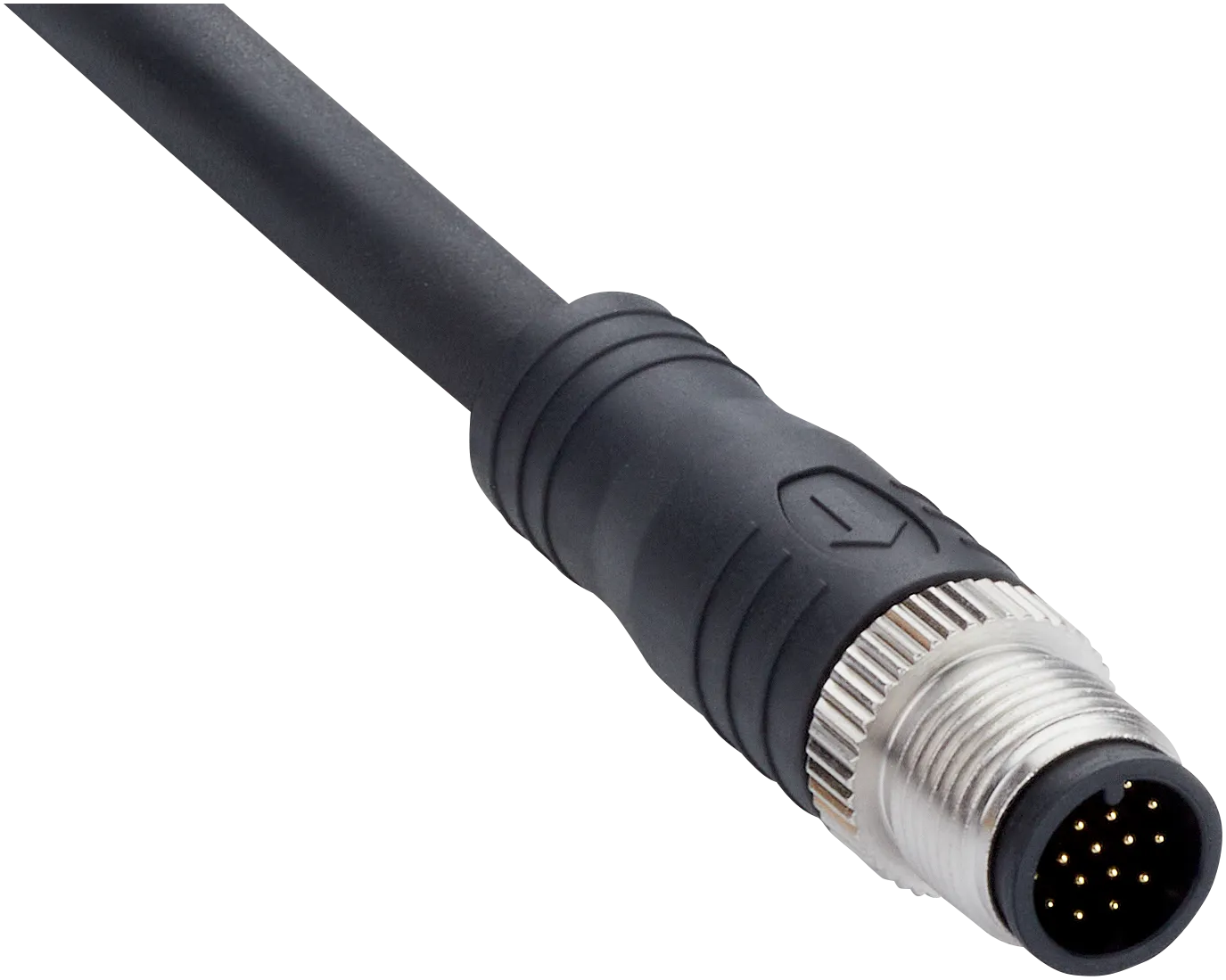

Sick YM2A1D-200UV1XLEAX
Connectors and cables | Sensor-actuator cables | YM2A1D-200UV1XLEAX | Connection type head A: Male connector, M12, 17-pin, straight | Connection type head B: Flying leads | Signal type: Sensor/actuato…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Sensor-actuator cables | YM2A1D-200UV1XLEAX | Connection type head A: Male connector, M12, 17-pin, straight | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 20 m, 17-wire, PUR | Description: Sensor/actuator cable, unshielded | Application: Uncontaminated zones, Zones with oils and lubricants, Robot, Drag chain operation
Specification
Technical specifications
| Connection type head A | Male connector, M12, 17-pin, straight |
|---|---|
| Connection type head B | Flying leads |
| Locking plug connector | Screw connection |
| Cable | 20Â m, 17-wire, PUR |
| Jacket material | PUR |
| Jacket color | Black |
| Cable diameter | 7Â mm |
| Conductor cross section | 0.14 mm² |
| Shielding | Unshielded |
| Flexible use | > 12Â x cable diameter |
| Stationary position | > 8Â x cable diameter |
| Rated impulse voltage | 0.8Â kV |
| Current loading | ≤ 1.5 A |
| Signal type | Sensor/actuator cable |
| Application | Uncontaminated zonesZones with oils and lubricantsRobotDrag chain operation |
| UL File No. | E335179 |
| Enclosure rating | IP67 |
| Flexible use | –20 °C ... +80 °C |
| Stationary position | –40 °C ... +80 °C |
| Head | –20 °C ... +80 °C |
| Contamination rating | 3 |
| Insulation resistance | 100 MΩ |
| Overvoltage category | III |
| Specific insulation resistance | 30 mΩ |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| China RoHS | ✔ |
| cULus certificate | ✔ |
Classifications
| ECLASS 5.0 | 19030312 |
|---|---|
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
