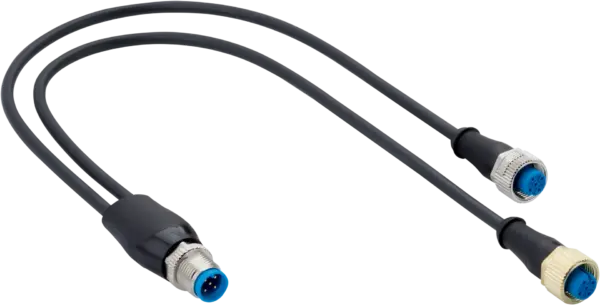

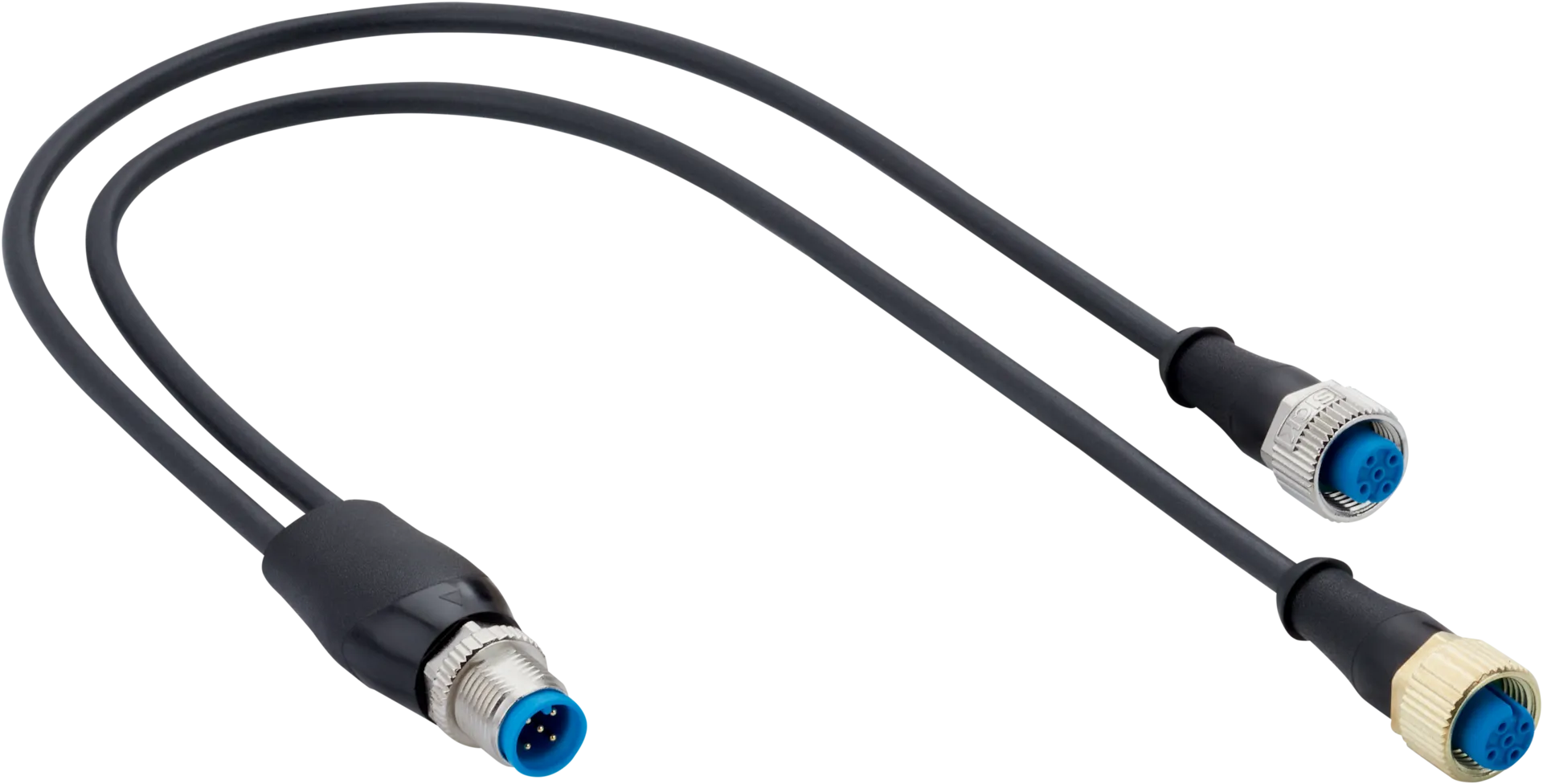

Sick YM2A15-C30UB3FY2A4
Connectors and cables | Y- and T-splitters | YM2A15-C30UB3FY2A4 | Connection type head A: Female connector, M12, 5-pin, A-coded | Connection type head B: Female connector, M12, 4-pin, A-coded | Connec…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Y- and T-splitters | YM2A15-C30UB3FY2A4 | Connection type head A: Female connector, M12, 5-pin, A-coded | Connection type head B: Female connector, M12, 4-pin, A-coded | Connection type head C: Male connector, M12, 4-pin, A-coded | Cable: 0.3 m, 4-wire, PUR, halogen-free | Description: Unshielded, For connecting the sender and receiver unit for through-beam photoelectric sensor
Specification
Technical specifications
| Connection type head A | Female connector, M12, 5-pin, A-coded |
|---|---|
| Connection type head B | Female connector, M12, 4-pin, A-coded |
| Connection type head C | Male connector, M12, 4-pin, A-coded |
| Locking plug connector | Screw connection |
| Connecting cable | 0.3Â m, 4-wire, PUR, halogen-free |
| Cable material | PUR, halogen-free |
| Cable color | Black |
| Conductor cross section | 0.34 mm² |
| Cable diameter | 4.5Â mm |
| Connector material head A | TPU |
| Connector material head B | TPU |
| Connector material head C | TPU |
| Locking nut material | Zinc die-cast, nickel-plated |
| Width across flats | 13 |
| Tightening torque | 0.6Â Nm |
| Shielding | Unshielded |
| Rated impulse voltage | 0.8Â kV |
| Current loading | 4Â A |
| Insulation resistance | 100 MΩ |
| Contamination rating | 3 |
| Overvoltage category | III |
| Specific insulation resistance | 30 mΩ |
| Stationary position | > 5Â x cable diameter |
| Enclosure rating | IP65 / IP66K / IP67 |
| Description | For connecting the sender and receiver unit for through-beam photoelectric sensor |
| Flexible use | –25 °C ... +80 °C |
| Stationary position | –40 °C ... +80 °C |
| Head | –25 °C ... +85 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
