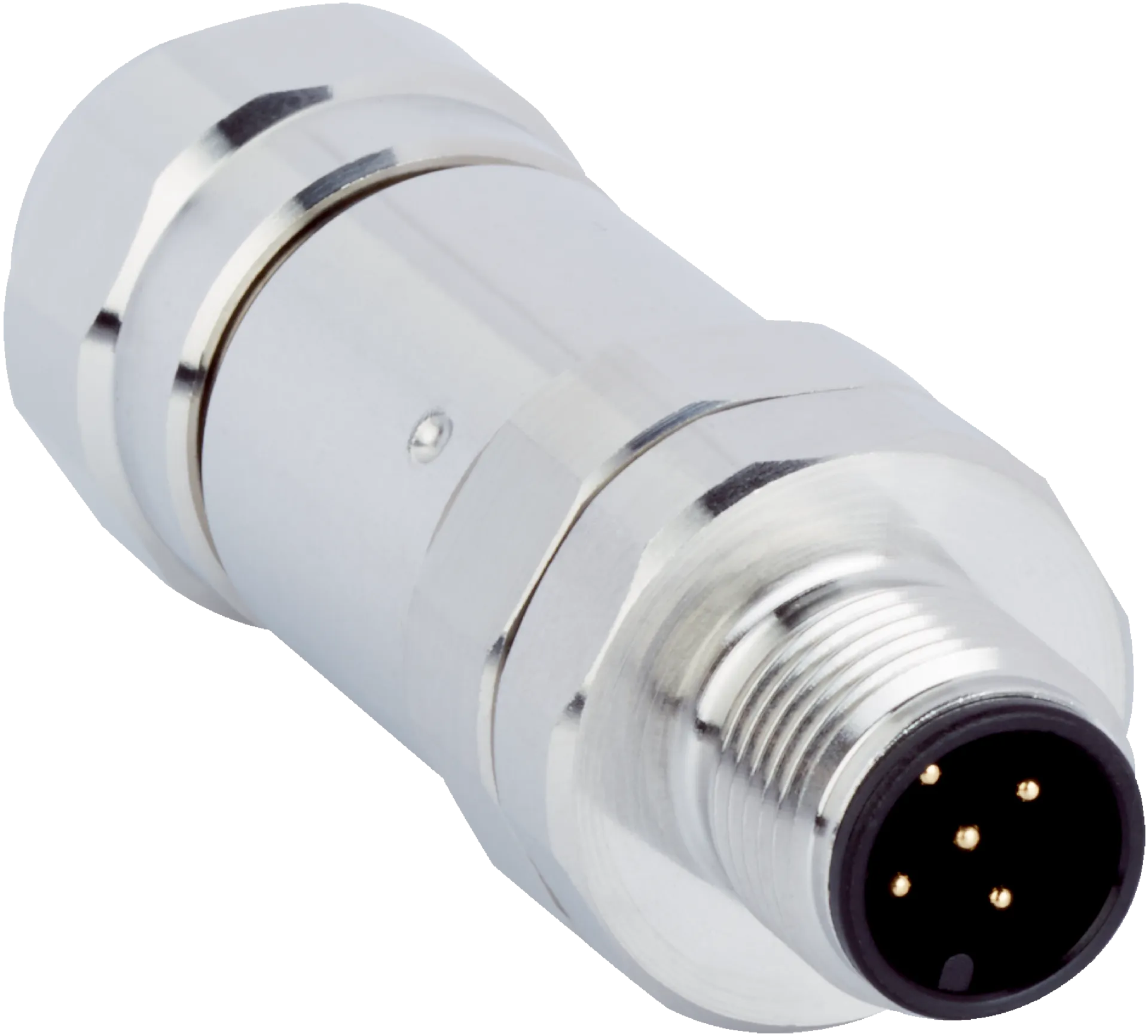

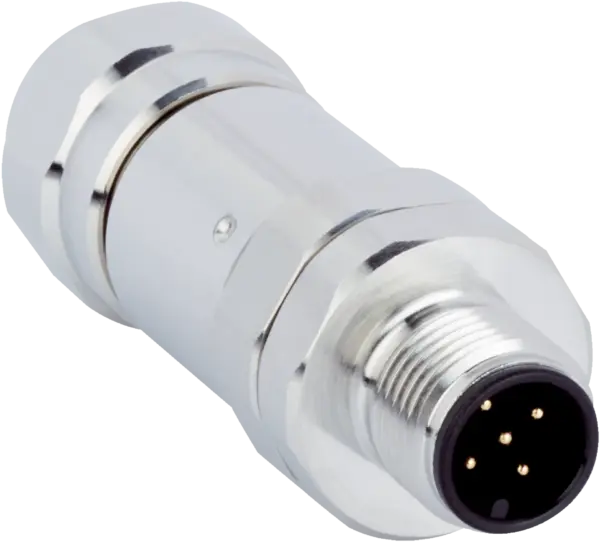

Sick YM12ES5-0075S5586A
Connectors and cables | Field-wireable connectors | YM12ES5-0075S5586A | Connection type head A: Male connector, M12, 5-pin, straight, A-coded | Description: Shielded | Connection systems: Screw-type…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Field-wireable connectors | YM12ES5-0075S5586A | Connection type head A: Male connector, M12, 5-pin, straight, A-coded | Description: Shielded | Connection systems: Screw-type terminals | Permitted cross-section: ≤ 0.75 mm² | Application: Hygienic and washdown zones
Specification
Technical specifications
| Connection type head A | Male connector, M12, 5-pin, straight, A-coded |
|---|---|
| Connection type | Screw-type terminals |
| Connector material | Stainless steel (V4A/1.4404) |
| Connector color | Silver |
| Locking nut material | Stainless steel (V4A/1.4404) |
| Shielding | Shielded |
| Permitted cross-section | ≤ 0.75 mm² |
| Current loading | 4Â A |
| Application | Hygienic and washdown zones |
| Enclosure rating | IP69K |
| Head | –40 °C ... +85 °C |
| Contamination rating | 3 |
| Overvoltage category | II |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
Classifications
| ECLASS 5.0 | 27279290 |
|---|---|
| ECLASS 5.1.4 | 27279290 |
| ECLASS 6.0 | 27279221 |
| ECLASS 6.2 | 27279221 |
| ECLASS 7.0 | 27440104 |
| ECLASS 8.0 | 27440104 |
| ECLASS 8.1 | 27440104 |
| ECLASS 9.0 | 27440102 |
| ECLASS 10.0 | 27440102 |
| ECLASS 11.0 | 27440102 |
| ECLASS 12.0 | 27440116 |
| ETIM 5.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| UNSPSC 16.0901 | 39121421 |
