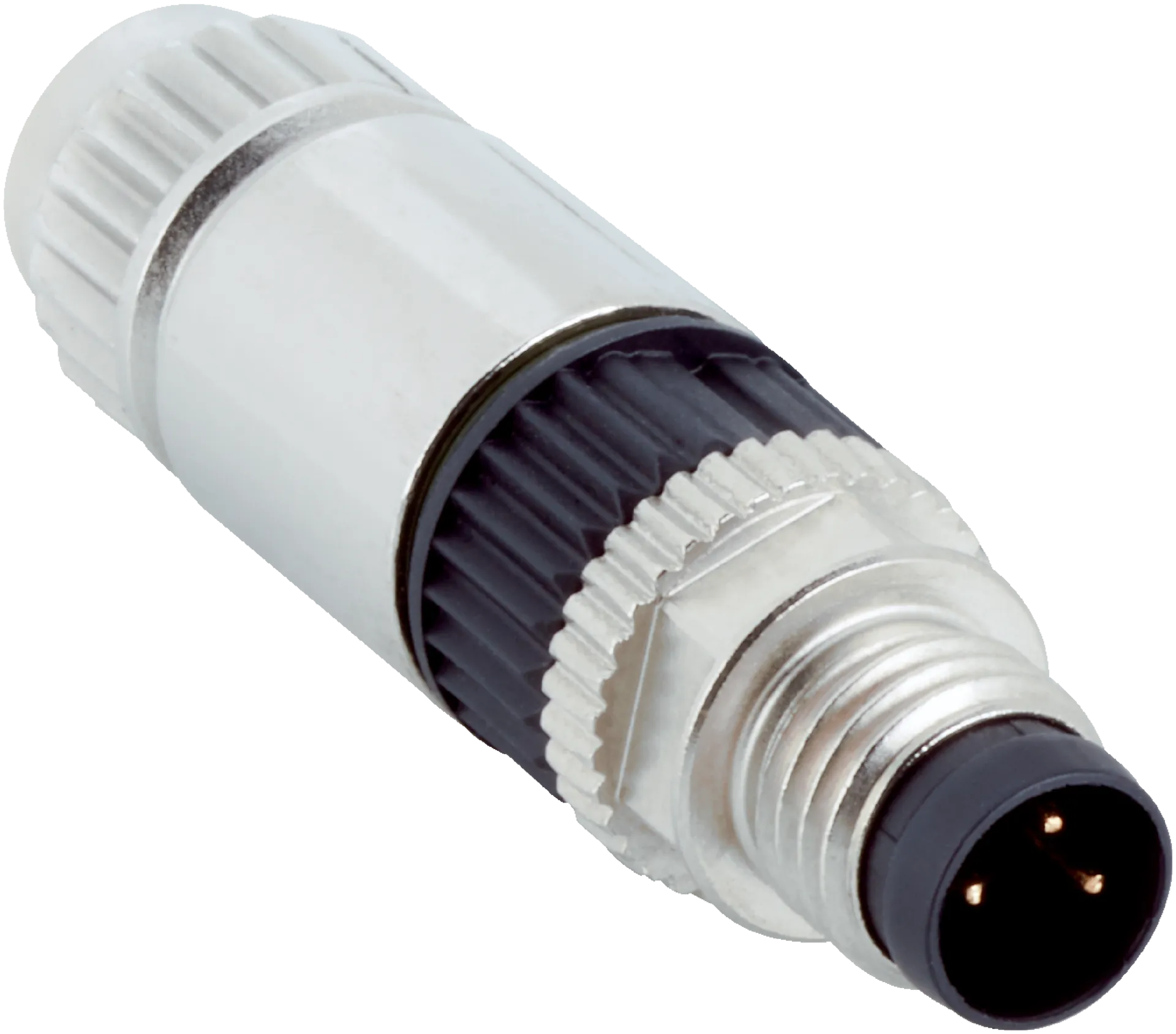

Sick YM08U13-1434K2551A
Connectors and cables | Field-wireable connectors | YM08U13-1434K2551A | Connection type head A: Male connector, M8, 3-pin, straight, A-coded | Signal type: Sensor/actuator cable | Description: Sensor…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Field-wireable connectors | YM08U13-1434K2551A | Connection type head A: Male connector, M8, 3-pin, straight, A-coded | Signal type: Sensor/actuator cable | Description: Sensor/actuator cable | Connection systems: IDC quick connection | Permitted cross-section: 0.14 mm² … 0.34 mm²
Specification
Technical specifications
| Connection type head A | Male connector, M8, 3-pin, straight, A-coded |
|---|---|
| Connection type | IDC quick connection |
| Locking plug connector | Screw connection |
| Connector material | PA |
| Connector color | Black |
| Locking nut material | Zinc die-cast, nickel-plated |
| Seal material | TPU |
| Tightening torque | 0.4Â Nm |
| Width across flats | 9 |
| Permitted cross-section | 0.14 mm² ... 0.34 mm² |
| Rated impulse voltage | 1.5Â kV |
| Current loading | 4Â A |
| Signal type | Sensor/actuator cable |
| Enclosure rating | IP67 |
| Head | –40 °C ... +85 °C |
| Contamination rating | 3 |
| Insulation resistance | 100 MΩ |
| Overvoltage category | III |
| Specific insulation resistance | 10 mΩ |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| China RoHS | ✔ |
Classifications
| ECLASS 5.0 | 27279290 |
|---|---|
| ECLASS 5.1.4 | 27279290 |
| ECLASS 6.0 | 27279221 |
| ECLASS 6.2 | 27279221 |
| ECLASS 7.0 | 27440104 |
| ECLASS 8.0 | 27440104 |
| ECLASS 8.1 | 27440104 |
| ECLASS 9.0 | 27440102 |
| ECLASS 10.0 | 27440102 |
| ECLASS 11.0 | 27440102 |
| ECLASS 12.0 | 27440116 |
| ETIM 5.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| UNSPSC 16.0901 | 39121421 |
