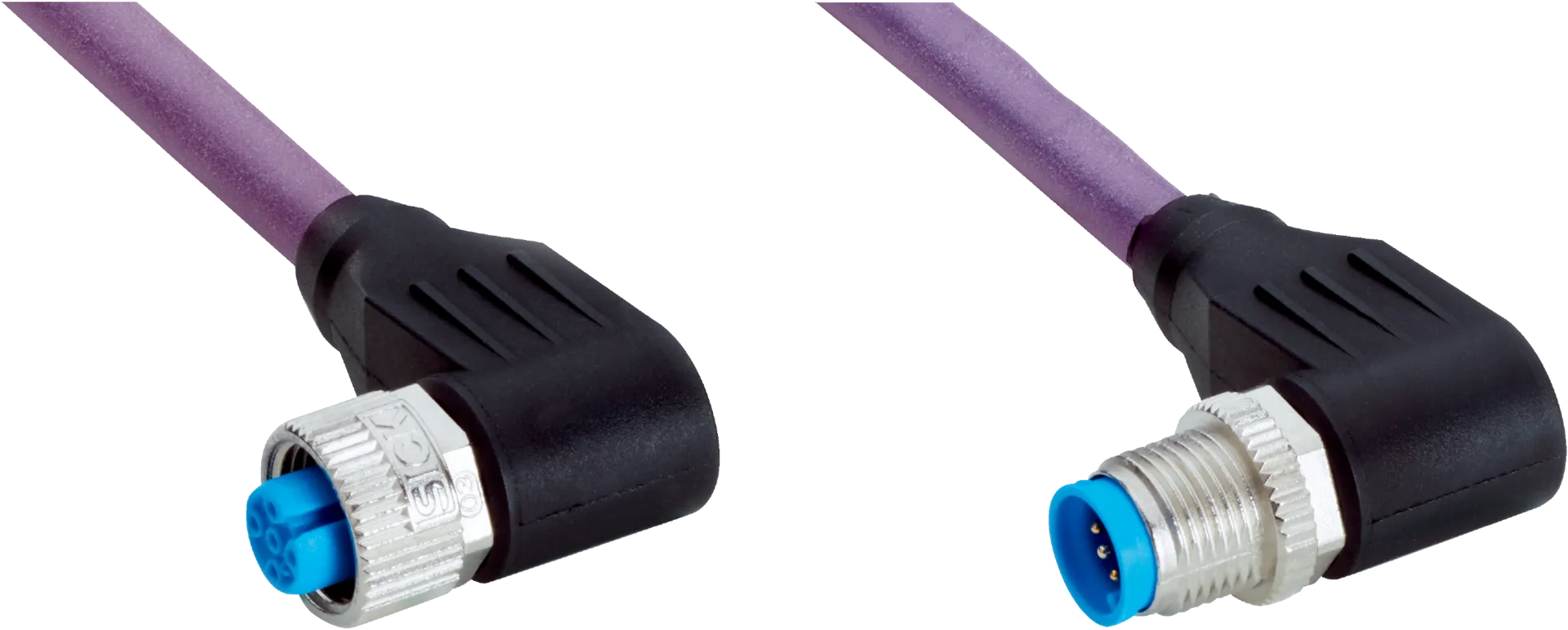

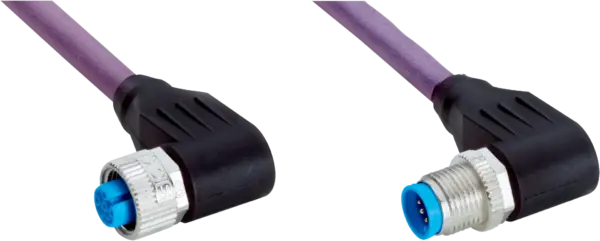

Sick YG2A15-030C1BN2A15
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YG2A15-030C1BN2A15 | Connection type head A: Female connector, M12, 5-pin, angled, A-coded | Connection type head B: Male conne…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Industrial Ethernet cables and fieldbus cables | YG2A15-030C1BN2A15 | Connection type head A: Female connector, M12, 5-pin, angled, A-coded | Connection type head B: Male connector, M12, 5-pin, angled, A-coded | Signal type: Fieldbus, CANopen, DeviceNetâ„¢ | Cable: 3 m, 5-wire, PUR, halogen-free | Description: Fieldbus, shielded, CANopen, DeviceNetâ„¢ | Note: A-coded
Specification
Technical specifications
| Connection type head A | Female connector, M12, 5-pin, angled, A-coded |
|---|---|
| Connection type head B | Male connector, M12, 5-pin, angled, A-coded |
| Connector material | TPU |
| Connector color | Black |
| Locking nut material | Zinc die-cast, nickel-plated |
| Tightening torque | 0.6Â Nm |
| Width across flats | 13 |
| Cable | 3Â m, 5-wire, PUR, halogen-free |
| Jacket material | PUR, halogen-free |
| Jacket color | Violet |
| Cable diameter | 6.9Â mm |
| Conductor cross section | 2 x 0.34 mm² +2 x 0.25 mm² +1 x 0.34 mm² |
| Shielding | Shielded |
| Flexible use | > 10Â x cable diameter |
| Stationary position | > 6Â x cable diameter |
| Bending cycles | ≤ 1,000,000 |
| Nominal voltage, cable | 300Â VÂ AC |
| Test voltage, cable | 2,000Â VÂ AC |
| Traversing speed | 5Â m/s |
| Travelling distance | 5Â m |
| Acceleration | ≤ 3 m/s² |
| Signal type | Fieldbus, CANopen, DeviceNet™ |
| Transmission characteristics | CANopen, DeviceNet™ |
| Note | A-coded |
| UL File No. | E335179 |
| Enclosure rating | IP65 / IP66 / IP67 |
| Specialty | Flame-resistant, self-extinguishing |
| Flexible use | +30 °C ... +70 °C |
| Stationary position | –40 °C ... +80 °C |
| Head | –25 °C ... +85 °C |
| Contamination rating | 3 |
| Insulation resistance | > 100 MΩ |
| Overvoltage category | III |
| Specific insulation resistance | < 30 mΩ |
| Thermal resistance, piping | Flame retardant acc. to UL 1581Â Section 1090, Section 1100Â (FT2) / IECÂ 60332-1-2 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
Classifications
| ECLASS 5.0 | 19030312 |
|---|---|
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
