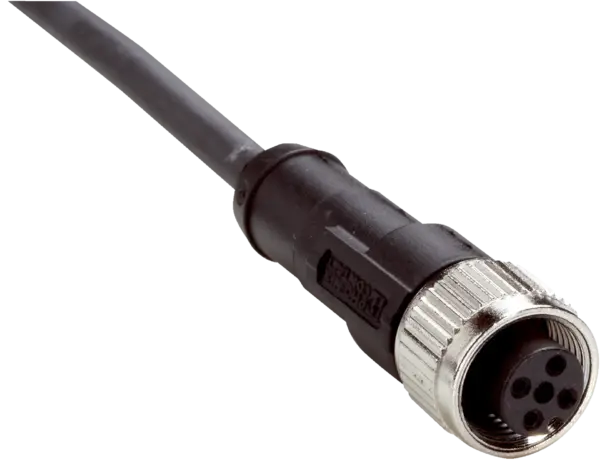

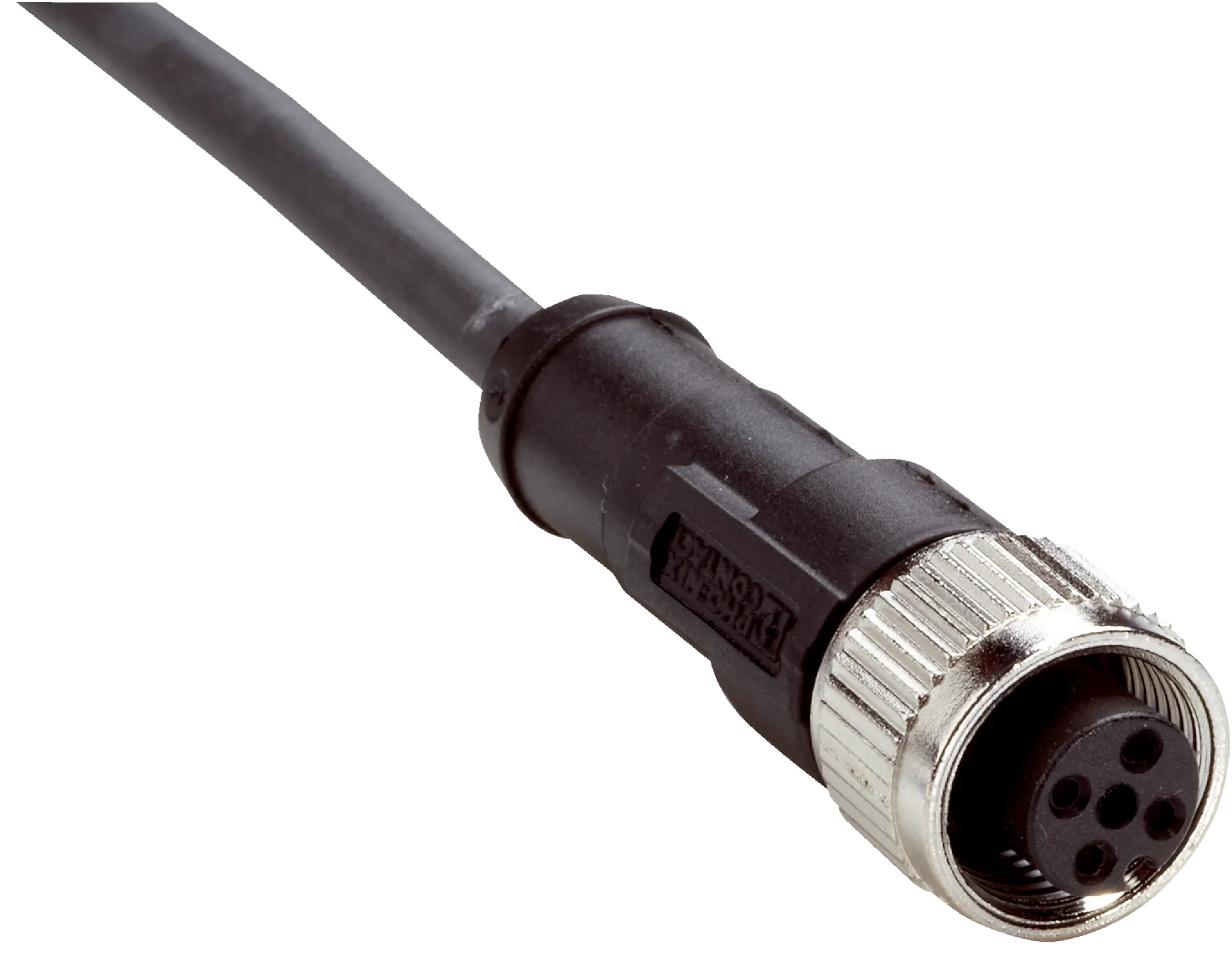

Sick YF2Z14-100XXXXLEAX
Connectors and cables | Other connectors and cables | YF2Z14-100XXXXLEAX | Connection type head A: Female connector, M12, 4-pin, straight | Connection type head B: Flying leads | Cable: 10 m, 4-wire,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Connectors and cables | Other connectors and cables | YF2Z14-100XXXXLEAX | Connection type head A: Female connector, M12, 4-pin, straight | Connection type head B: Flying leads | Cable: 10 m, 4-wire, PUR, halogen-free | Description: Unshielded | Connection systems: Flying leads | Application: Drag chain operation
Specification
Technical specifications
| Connection type head A | Female connector, M12, 4-pin, straight |
|---|---|
| Connection type head B | Flying leads |
| Connection type | Flying leads |
| Connector material | TPU |
| Connector color | Black |
| Locking nut material | Zinc die-cast, nickel-plated |
| Tightening torque | 0.4Â Nm |
| Cable | 10Â m, 4-wire, PUR, halogen-free |
| Jacket material | PUR, halogen-free |
| Jacket color | Black |
| Cable diameter | 4.7Â mm |
| Conductor cross section | 0.34 mm² |
| Shielding | Unshielded |
| Flexible use | > 10Â x cable diameter |
| Stationary position | > 5Â x cable diameter |
| Bending cycles | ≥ 4,000,000 |
| Current loading | 4Â A |
| Traversing speed | 3Â m/s |
| Travelling distance | 10Â m |
| Acceleration | ≤ 10 m/s² |
| Application | Drag chain operation |
| UL File No. | CYJV.E335179 |
| Enclosure rating | IP65/ IP67/ IP68 |
| Flexible use | –25 °C ... +80 °C |
| Stationary position | –40 °C ... +80 °C |
| Head | –25 °C ... +90 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| China RoHS | ✔ |
Classifications
| ECLASS 5.0 | 19030312 |
|---|---|
| ECLASS 5.1.4 | 19030312 |
| ECLASS 6.0 | 27060304 |
| ECLASS 6.2 | 27060304 |
| ECLASS 7.0 | 27060304 |
| ECLASS 8.0 | 27060304 |
| ECLASS 8.1 | 27060304 |
| ECLASS 9.0 | 27060304 |
| ECLASS 10.0 | 27060304 |
| ECLASS 11.0 | 27060304 |
| ECLASS 12.0 | 27060304 |
| ETIM 5.0 | EC000830 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
| ETIM 8.0 | EC003249 |
| UNSPSC 16.0901 | 26121604 |
